Section 4 : Operation
4-38 5376000277

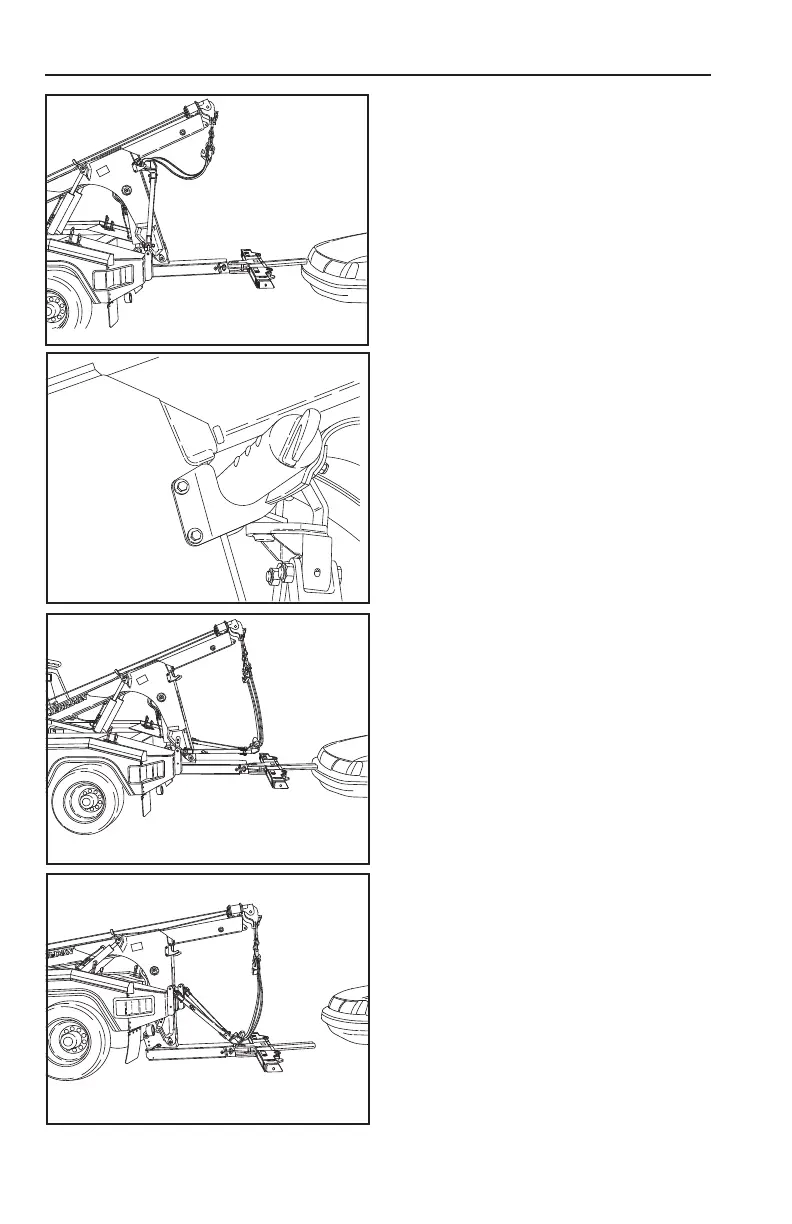

8. Extend the wrecker boom and
adjust the wire rope cable(s) to
lift the top of the tow sling and
tow sling straps.
9. Lower the boom to allow the
tow sling head to raise out of it
holder on the back side of the
boom.
10. Carefully extend and lower the
wrecker boom to allow the tow
sling head to rotate outward
and down away from boom.
11. Lower the tow sling to the
ground.
