Jet BDB-1340A Parts List

31

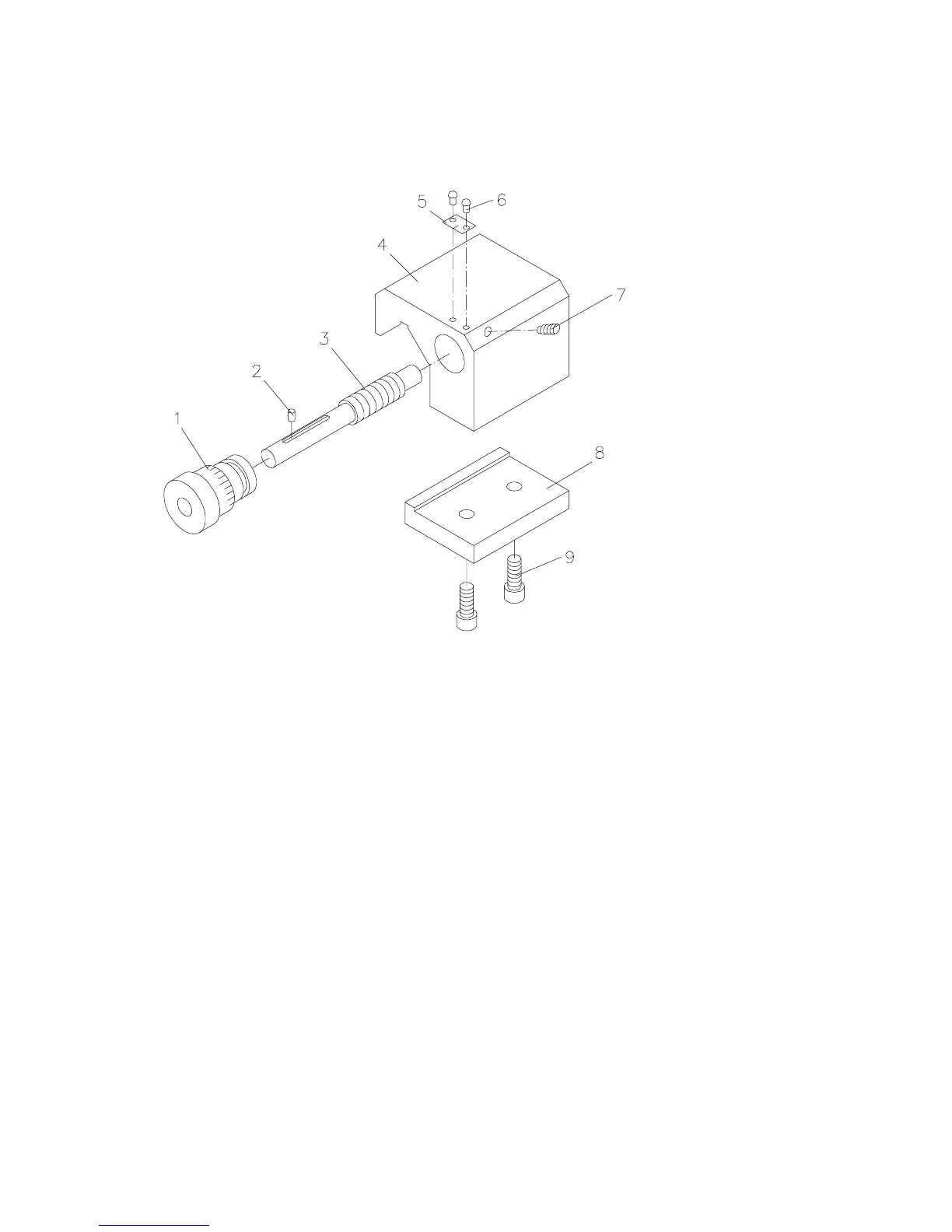

Micro Carriage Stop Assembly
Micro Carriage Stop Assembly
Index Part
No. No. Description Size Qty.
1..........GHB1340A-01707........ Dial........................................................ .................................................... 1
2..........GHB1340A-MS02......... Pin.........................................................B3 x 6 .......................................... 1
3..........GHB1340A-01716........ Axle....................................................... .................................................... 1
4..........GHB1340A-01107 ........ Stop....................................................... .................................................... 1
5..........ZX-03302..................... Indicator Plate........................................ ....................................................1
6..........ZX-MS06...................... Pin.........................................................3 x 8............................................. 2
7..........TS-1523031 ................. Socket Set Screw ..................................M6 x 10........................................ 1
8..........GH1340A-01108 .......... Clamping Plate ...................................... .................................................... 1
9..........TS-1503051 ................. Hex Socket Cap Screw..........................M6 x 20........................................ 2
