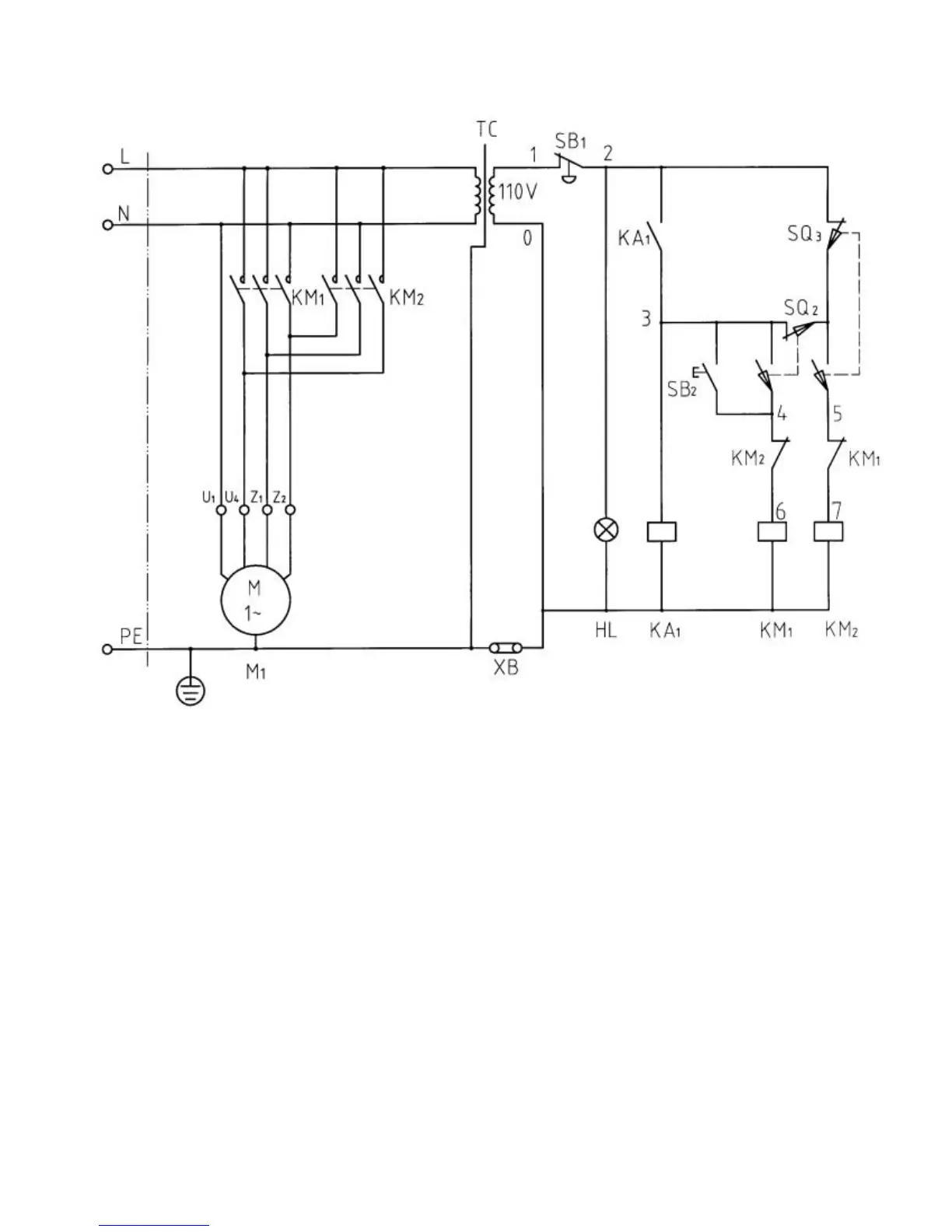

Electrical Schematic - GHB-1340A

Electrical Schemaatic-GHB-1340A

Index Part

No. No. Description Size Qty.

1..........GHB1340-SB1 ............. Emergency Stop.......................................................LAY3-01ZS/1............. 1

2..........GHB1340-SB2 ............. Jog Button................................................................LAY3-11..................... 1

3..........GHB1340-HL ............... Power Indicator Light................................................AD1-30/20................. 1

4..........GHB1340-KA1 ............. Magnetic Starter........................................................CA2-DN140............... 1

5..........GHB1340-KM1............. Magnetic Starter........................................................LC1-D259 ................. 1

6..........GHB1340-KM2............. Magnetic Starter........................................................LC1-D259.................. 1

7..........GHB1340-TC ............... Control Transformer..................................................JBK3-63.................... 1

8..........GHB1340A-SQ2........... Stroke Switch............................................................LXW5-11D1............... 1

9..........GHB1340A-SQ3........... Stroke Switch............................................................LXW5-11D1............... 1

10........GHB1340-XT1.............. Wiring Board.............................................................JHY1-32.................... 1

11........GHB1340-XT2.............. Wiring Board.............................................................JHY1-16.................... 1

12........GHB1340-XB ............... Copper Plate (for grounding)....................................................................... 1
