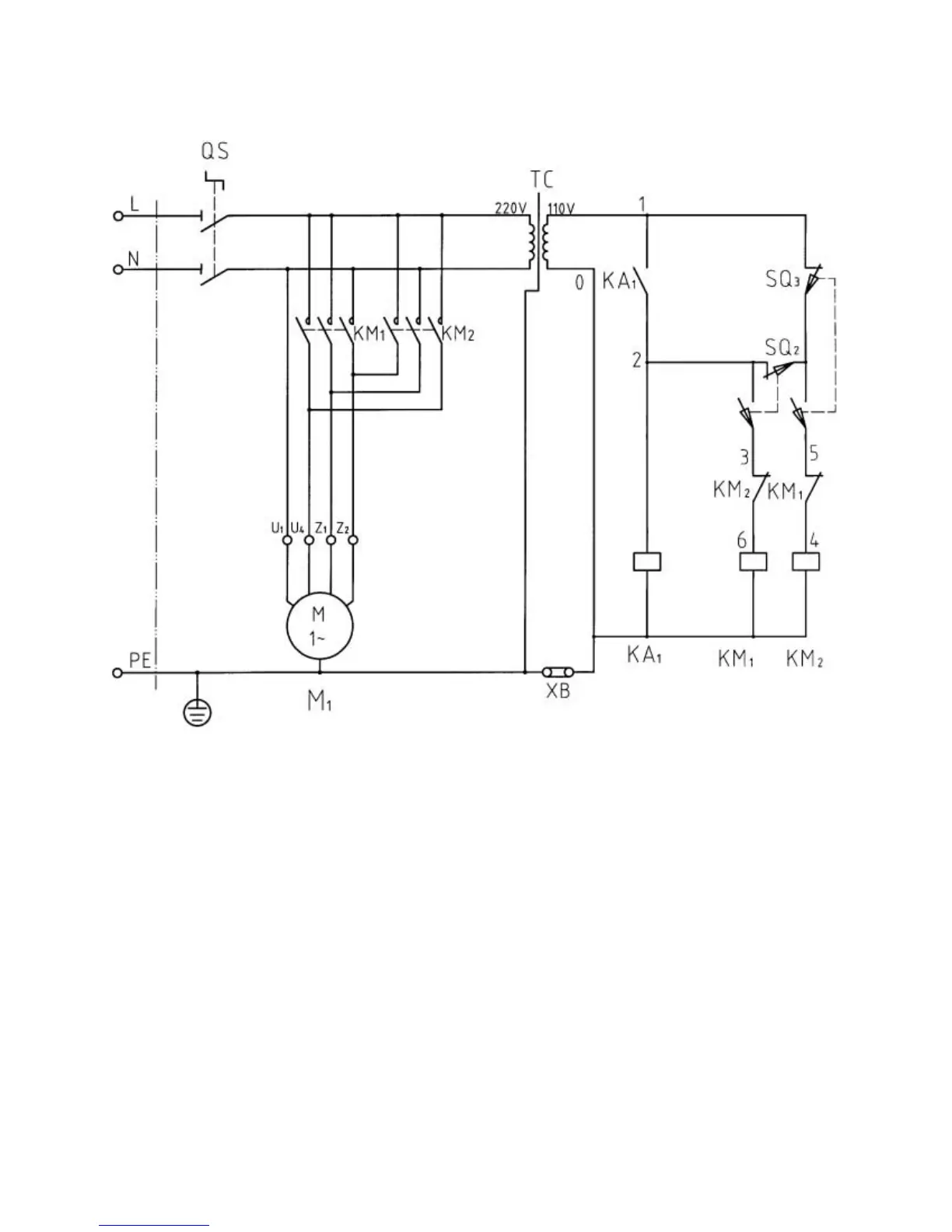

Electrical Schematic-BDB-1340A

Electrical Schematic - BDB-1340A

Index Part

No. No. Description Size Qty.

1 ........GHB1340-KA1 ............. Relay........................................................................CA2-DN140............... 1

2 ........GHB1340-KM1............. A.C. Contactor..........................................................LC1-D259.................. 1

3 ........GHB1340-KM2............. A.C. Contactor..........................................................LC1-D259.................. 1

4 ........GHB1340-TC ............... Control Transformer..................................................JBK3-63.................... 1

5 ........GHB1340A-SQ2........... Stroke Switch............................................................LXW5-11D1............... 1

6..........GHB1340A-SQ3........... Stroke Switch............................................................LXW5-11D1............... 1

7..........GHB1340-XT1.............. Wiring Board.............................................................JHY1-32.................... 1

8..........GHB1340-XT2.............. Wiring Board.............................................................JHY1-16.................... 1

9..........GHB1340-XB ............... Copper Plate (for grounding)....................................................................... 1
