Jet JDP-20VS-3 - Safety Shield Assembly (All Models) - Exploded View; Safety Shield Assembly (All Models) - Parts List

24

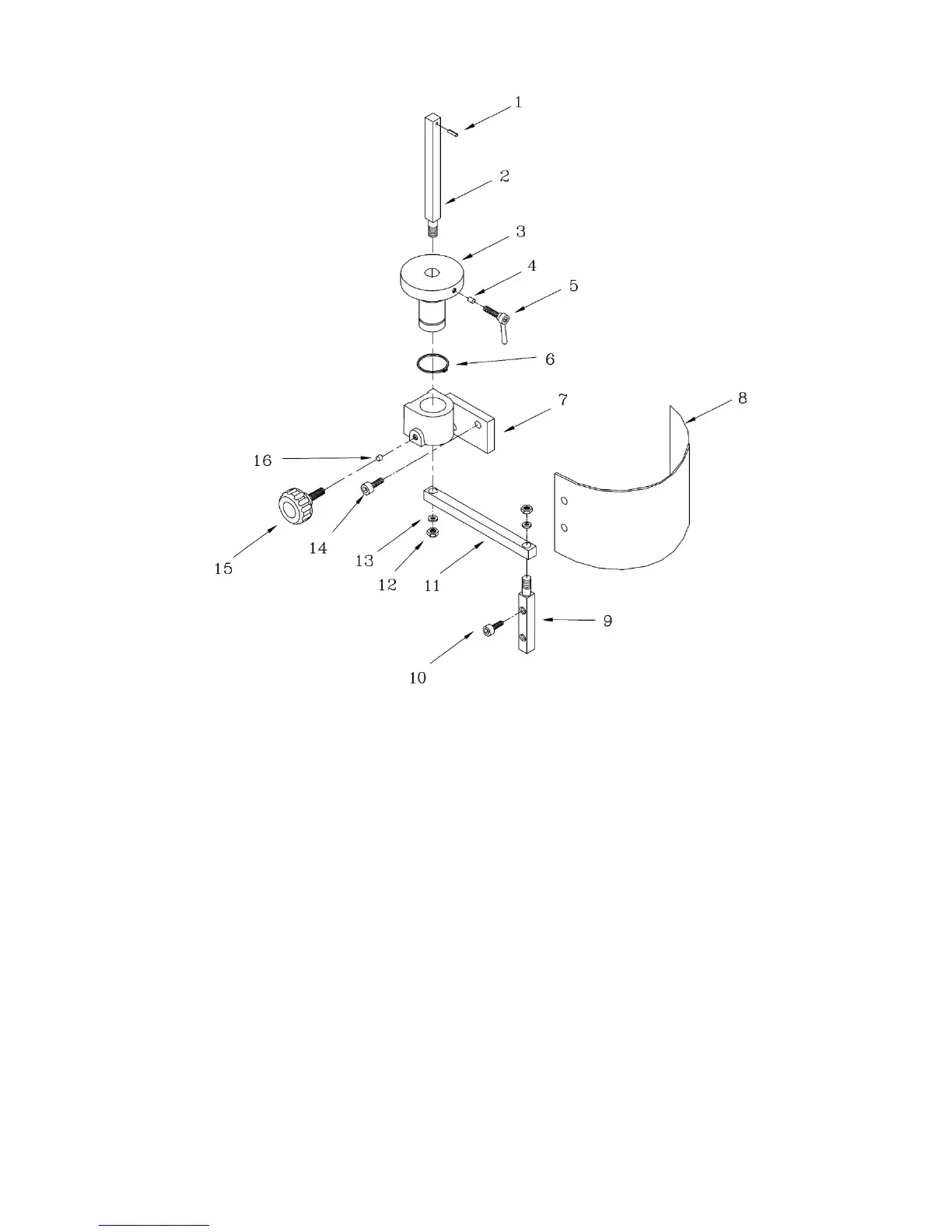

13.4.1 Safety Shield Assembly (All Models) – Exploded View
13.4.2 Safety Shield Assembly (All Models) – Parts List
Index No. Part No. Description Size Qty
................. 32106A ..................... Safety Shield Assembly (#1 thru 16) ................... .................................... 1
1 ............... 6293347 ................... Spring Pin............................................................. 3x16 ............................ 1
2 ............... 32106A-2 ................. Support Bracket Bar ............................................. .................................... 1
3 ............... 32106A-3 ................. Bushing ................................................................ .................................... 1
4 ............... 32106A-4 ................. Spacer .................................................................. .................................... 1
5 ............... 32106A-5 ................. Lock Handle ......................................................... M6x20 ......................... 1
6 ............... 32106A-6 ................. C-Clip ................................................................... S30 .............................. 1
7 ............... 32106A-7 ................. Bracket ................................................................. .................................... 1
8 ................ 32106A-8 ................... Safety Shield ........................................................... 530x210mm .................. 1
9 ............... 32106A-9 ................. Lower Bracket Bar ............................................... .................................... 1
10 ............. TS-1504021 ............. Hex Socket Head Cap Screw .............................. M8x12 ......................... 1
11 ............. 32106A-11 ............... Support Arm ......................................................... .................................... 1
12 ............. TS-0640091 ............. Hex Nut ................................................................ 3/8” .............................. 1
13 ............. TS-0720091 ............. Spring Washer ..................................................... 3/8” .............................. 1
14 ............. TS-1504041 ............. Hex Socket Head Cap Screw .............................. M8x20 ......................... 1
15 ............. 32106A-16 ............... Lock Bolt with Knob ............................................. M8 ............................... 1
16 ............. 32106A-17 ............... Spacer .................................................................. .................................... 1
