14.0 Electrical connections
Similar diagrams are affixed inside electrical cabinet door. In case of discrepancy, diagrams on machine take
precedence.

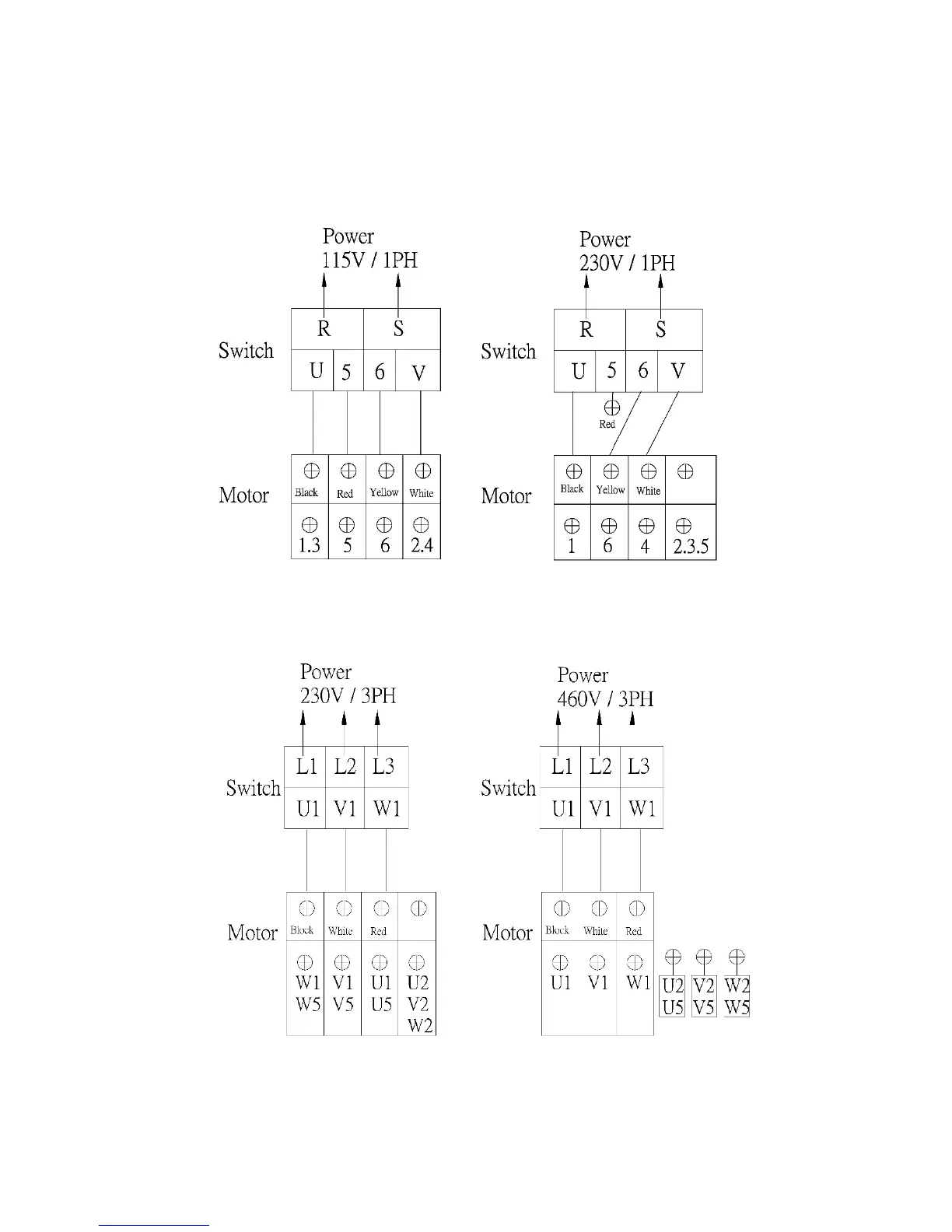

14.1 JDP-20VS-1 and JDP-20VS-3 wiring diagram
