7
JDP-20VS-1 JDP-20VS-3 JDP-20VST
Main materials
Head cast iron
Table and Base cast iron
Spindle and Quill steel/cast iron
Column steel
Dimensions
Assembled machine dimensions LxWxH 38.18 x 27.16 x 79.52 in. (970 x 690 x 2020 mm)
Shipping dimensions LxWxH 37 x 25.5 x 75 in. (940 x 648 x1905 mm)
Weights
Net weight 685 lbs. (311 kg)
Shipping weight 780 lbs. (354 kg)
Table 1
1
Subject to local and national electrical codes.
2
The specified values are emission levels and are not necessarily to be seen as safe operating levels. As workplace
conditions vary, this information is intended to allow the user to make a better estimation of the hazards and risks
involved only.
L = length, W = width, H = height
n/a = not applicable
The above specifications were current at the time this manual was published, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring
obligations.

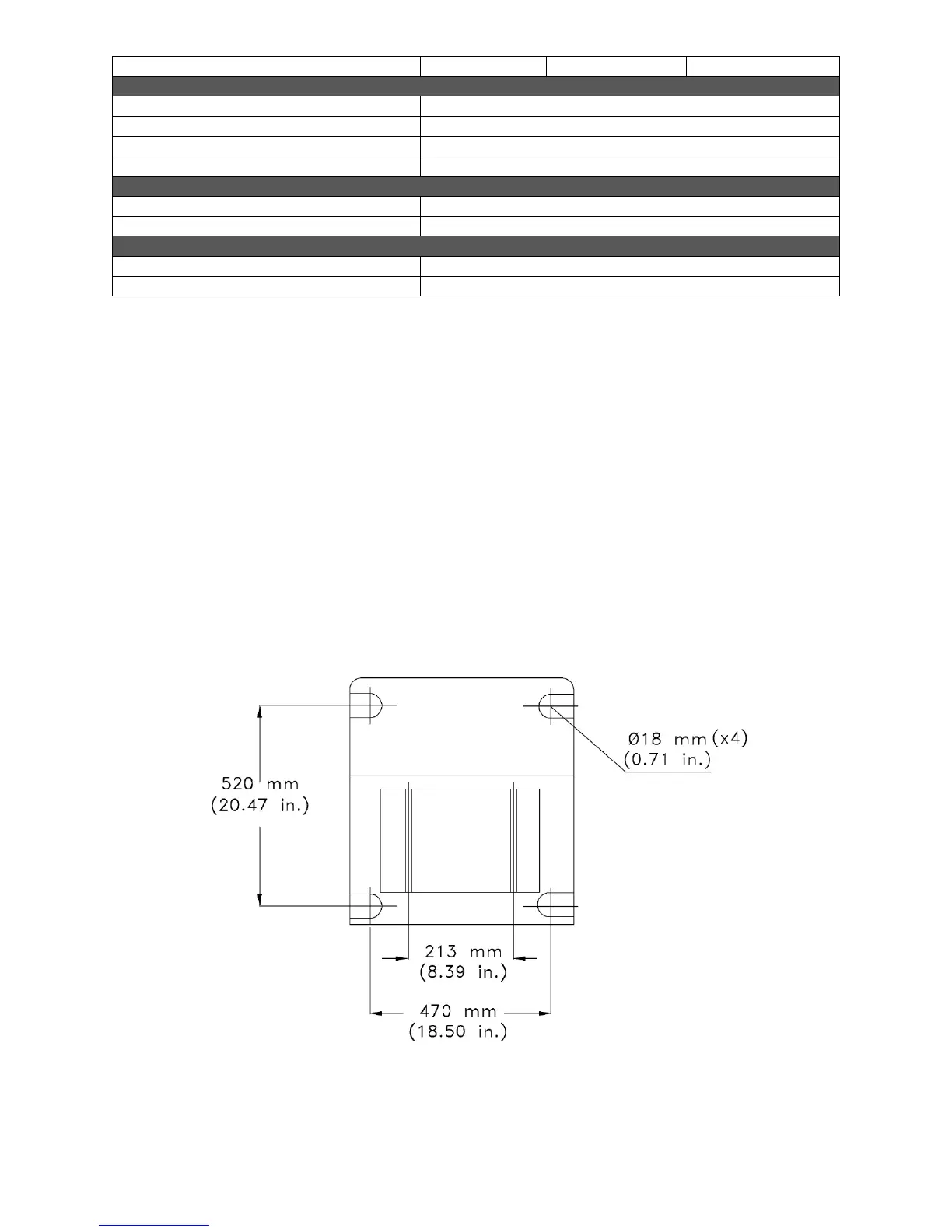

4.1 Mounting hole centers (all models)
Figure 4-1: machine base mounting
