Jet JPS-10TS - 8.0 Setup and assembly; 8.1 Shipping contents

10
8.0 Setup and assembly
8.1 Shipping contents

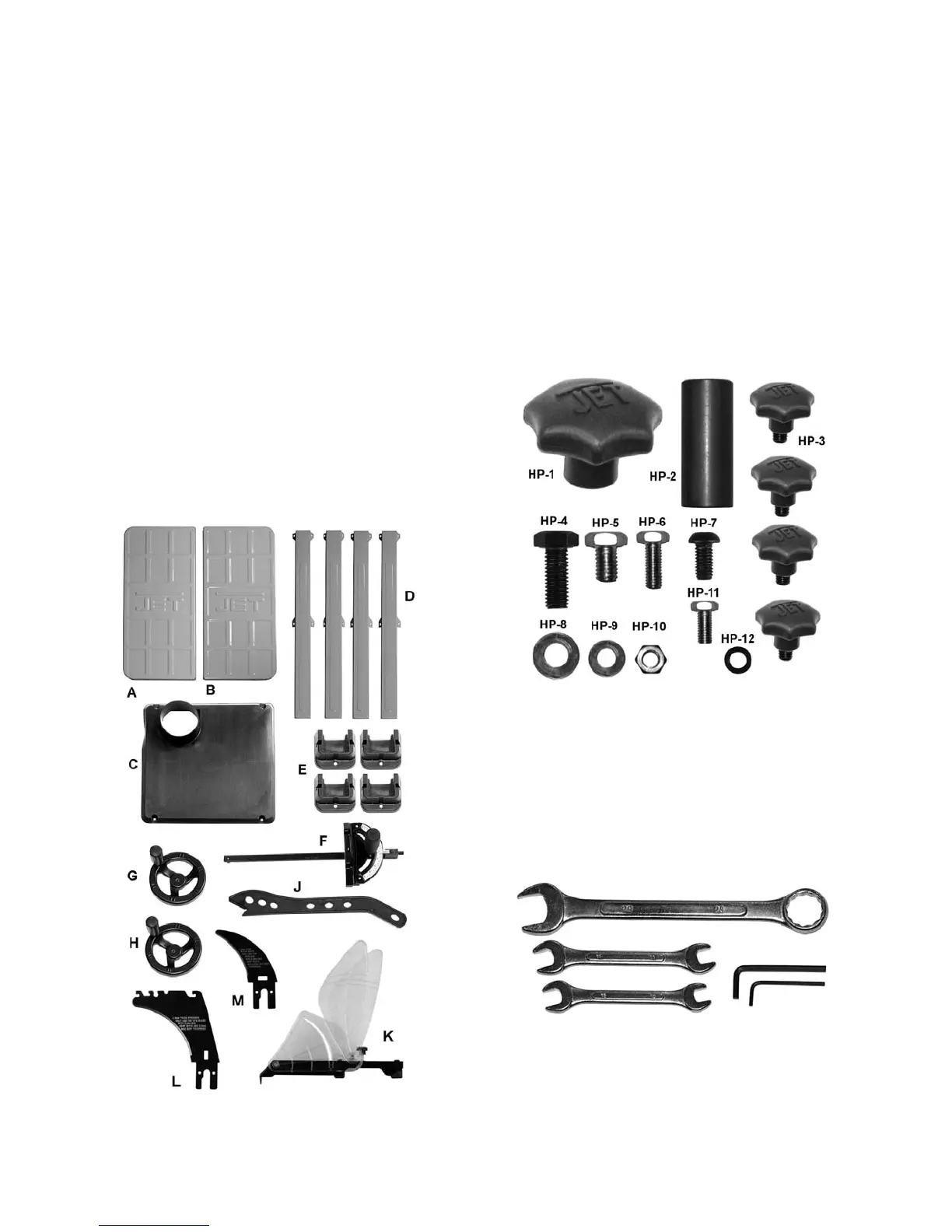

Carton contents (see Figure 2)
NOTE: Some parts may have come pre-
assembled to the table saw.
1 Table saw (not shown)
1 Blade (not shown)
1 Extension wing – Left (A)
1 Extension wing – Right (B)
1 Dust hood (C)
4 Legs (D)
4 Feet (E)
1 Miter gauge (F)
1 Handwheel – large mounting hole (G)
1 Handwheel – small mounting hole (H)
1 Push stick (J)
1 Guard assembly (K)
1 Riving knife (L)
1 Low profile riving knife (M)
1 Owner’s manual (not shown)
1 Warranty card (not shown)
Figure 2
Hardware Package (p/n JPS10TSR-HP)
Remove contents from all packets and sort. Use
Figures 3 and 4 to help identify hardware.
1 Lock knob (HP-1)
1 Bushing (HP-2)
4 Knobs for dust hood (HP-3)
8 M8x20 Hex cap screws (HP-4)
2 M8x10 Hex cap screws (HP-5)
8 M6x16 Hex cap screws (HP-6)
16 M6x12 Socket head button screws (HP-7)
10 8mm Flat washers (HP-8)
8 6mm Flat washers (HP-9)
8 6mm Hex nuts (HP-10)
1 M5x12 Socket head cap screw (HP-11)
1 5mm Lock washer (HP-12)
Figure 3
Tools included for assembly
1 23mm Combination wrench
1 10-12mm Open end wrench
1 11-13mm Open end wrench
1 4mm Hex key
1 2.5mm Hex key
Note: other tools not provided may be required
for assembly.
Figure 4
Note: Fence and rail assemblies, and wood
extension tables and legs, are shipped in
separate cartons.
