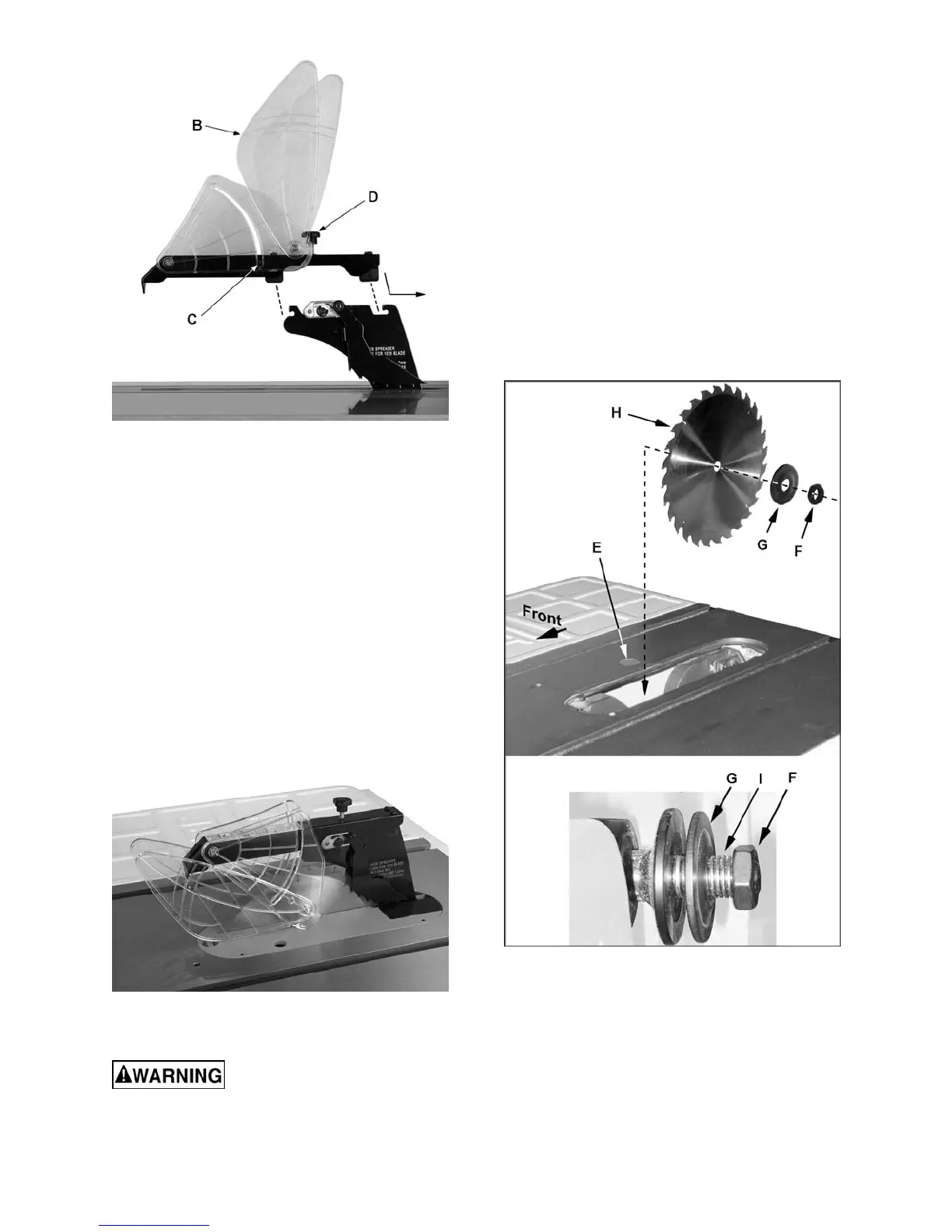

Figure 14
8.13 Blade guard
Referring to Figure 14.
1. Push up guard leaves (B) until they catch
and hold on the peg (C).
2. Lower blade guard assembly onto riving
knife and push it backward to seat it.
3. Tighten knob (D).
4. Pull down guard leaves into position shown
in Figure 15.
5. Reverse procedure to remove guard.
IMPORTANT: Knob (D) must be tightened
before operating saw with guard in place.
Figure 15
8.14 Blade installation/replacement
When installing or changing
blades, always disconnect saw from power
source. Failure to comply may cause serious
injury.
1. Using the handwheels, raise the blade arbor
fully and lock saw at zero degrees by
tightening lock knob at center of handwheel.
Referring to Figure 16:
2. Press arbor lock button (E) and rotate arbor
until you feel arbor lock engage. Continue
pressing arbor lock button.
3. Using the provided wrench, remove arbor
nut (F) and outer flange (G). If replacing
blade, remove old blade.
4. Place blade (H) on arbor shaft (I) making
sure that the teeth point down at the front of
the saw. Replace flange (G) and arbor nut
(F).
5. Tighten arbor nut (F).
Figure 16
