35

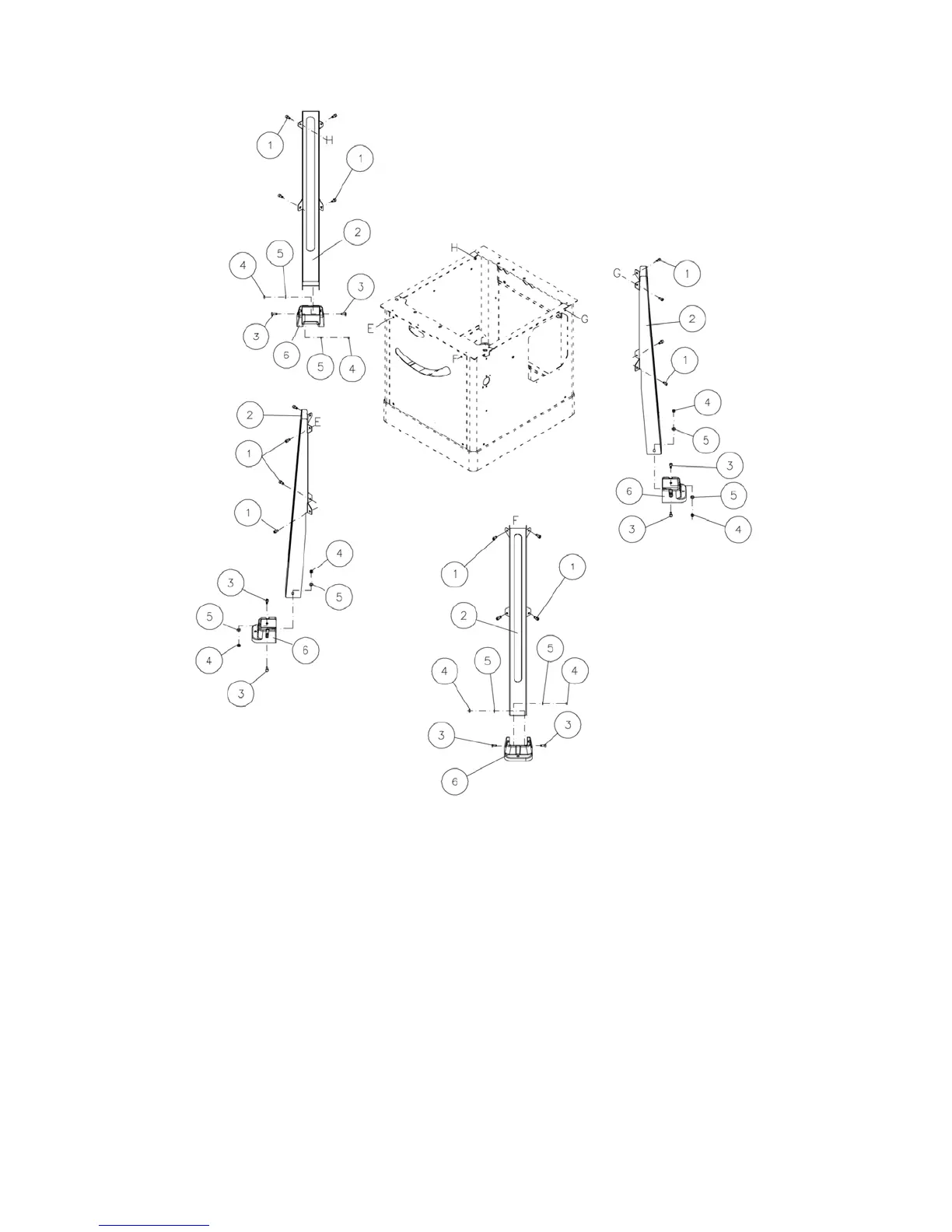

16.3.1 Stand Assembly – Exploded View
16.3.2 Stand Assembly – Parts List
Index No Part No Description Size Qty
1 .............. TS-2246122 ............Socket Head Button Screw ................................M6x12...................... 16
2 .............. JPS10TSR-402 ........Leg .................................................................................................... 4
3 .............. TS-1482031 ............Hex Cap Screw ................................................M6x16........................ 8
4 .............. TS-2311061 ............Hex Nut............................................................M6 ............................. 8
5 .............. TS-1550041 ............Flat Washer......................................................M6 ............................. 8
6 .............. JPS10TS-406 ..........Foot ................................................................................................... 4
................ JPS10TS-SHP .........Stand Hardware Package (#1,3,4,5) ......................................................
