6
6.0 Unpacking
Read and understand all
assembly instructions before attempting
assembly. Failure to comply may cause serious
injury.
Remove all contents from shipping carton. Do not
discard carton or packing material until band saw is
assembled and running satisfactorily.
Compare contents of carton against list of parts
below. The letter identification in the list
corresponds to items shown in Figures 2 and 3. This
is your key for identifying the parts used throughout
the Assembly section for easy reference.
Remove the protective coating that is applied to the
table with a household grease and spot remover.
6.1 Contents of shipping container
Refer to Figures 2 and 3.
1 Band saw – A
1 Table insert – B
1 Table – C
1 Fence – D
1 Guide rail – E
1 Handle – F
2 Hex wrenches, 3mm,6mm – G
1 Wrench – H
1 Miter gauge – J
4 Stand legs – K
4 Rubber foot – L
2 Short support plate – M
2 Long cross brace – N
2 Long support plate – O
2 Short cross brace – P
1 Owner’s Manual (not shown)
1 Warranty Card (not shown)
1 Hardware package
Hardware package (JWB10-HP), includes:
3 Hex cap screw, M8x55 – HP1
4 Hex washer head screw, M6x12 – HP2
32 Carriage bolt, M6x12 – HP3
4 Wing screw – HP4
4 Flat washer blk oxide M8 – HP5
6 Flat washer M8 – HP6
3 Lock washer M8 – HP7
3 Hex nut, M8 – HP8
32 Hex flange nut, M6 – HP9
6.2 Tools required for assembly
10mm wrench (provided)
13mm wrench
Note: A socket wrench may speed assembly.

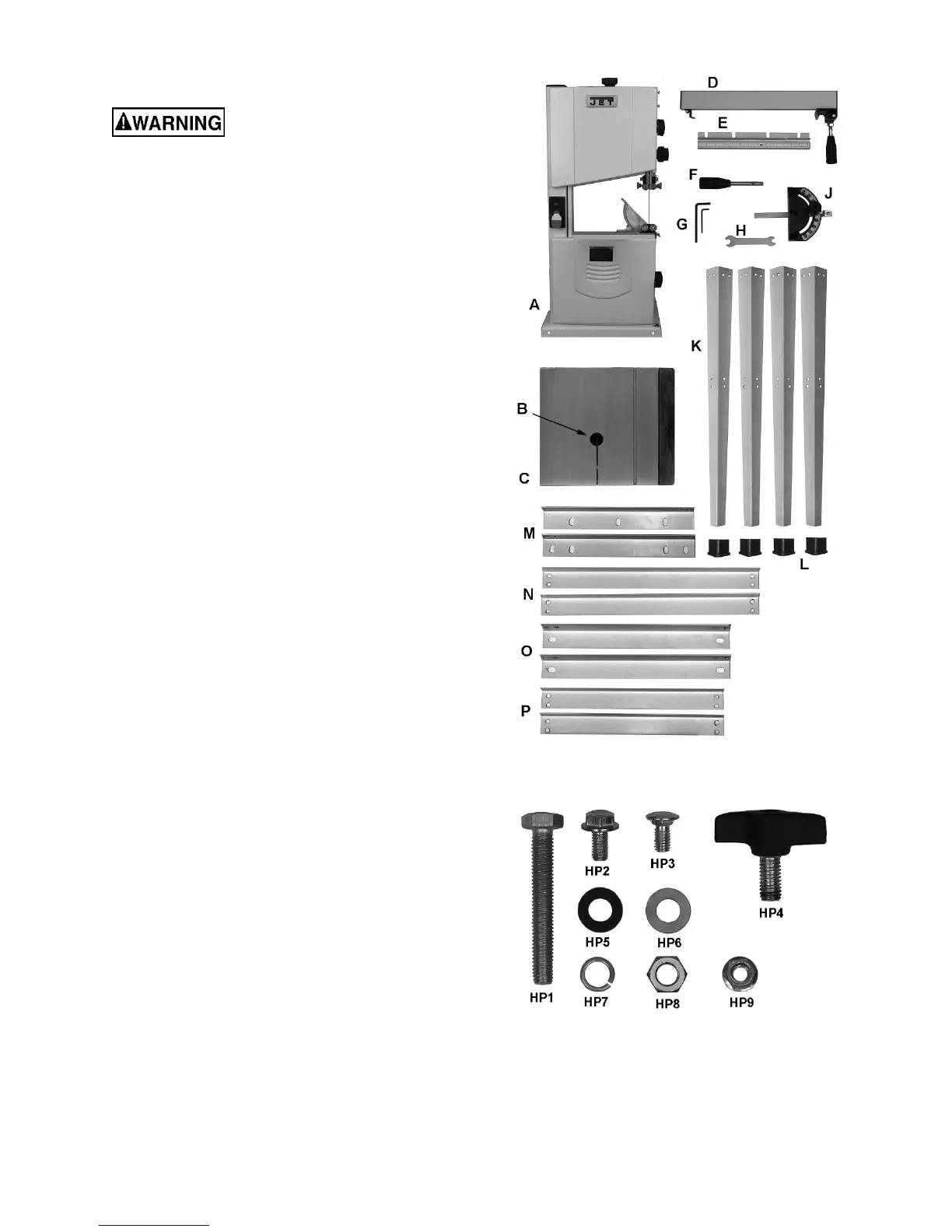

Figure 2: contents (not to scale)
Figure 3: hardware package (JWB10-HP)
