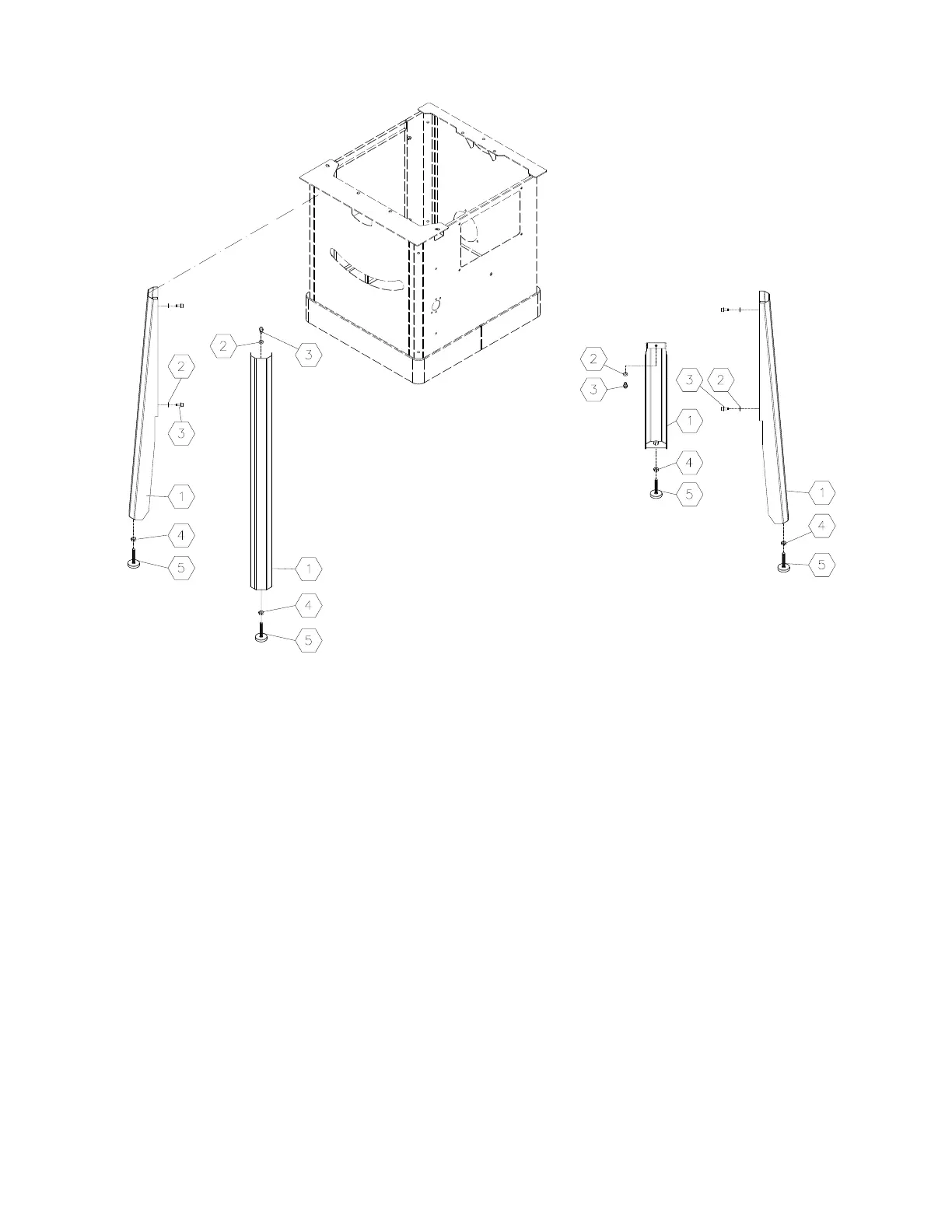

14.3.1 Stand Assembly – Exploded View

14.3.2 Stand Assembly – Parts List

Index No Part No Description Size Qty

1 ................ JPS10TSC-301 ......... Leg ........................................................................... ...................................... 4

2 ................ TS-1550041 .............. Flat Washer ............................................................. M6 ................................. 8

3 ................ TS-1482031 .............. Socket Head Cap Screw.......................................... M6-1.0x16 ..................... 8

4 ................ TS-1540061 .............. Hex Nut .................................................................... M8 ................................. 4

5 ................ JPS10TSC-305 ......... Leveler ..................................................................... ...................................... 4
