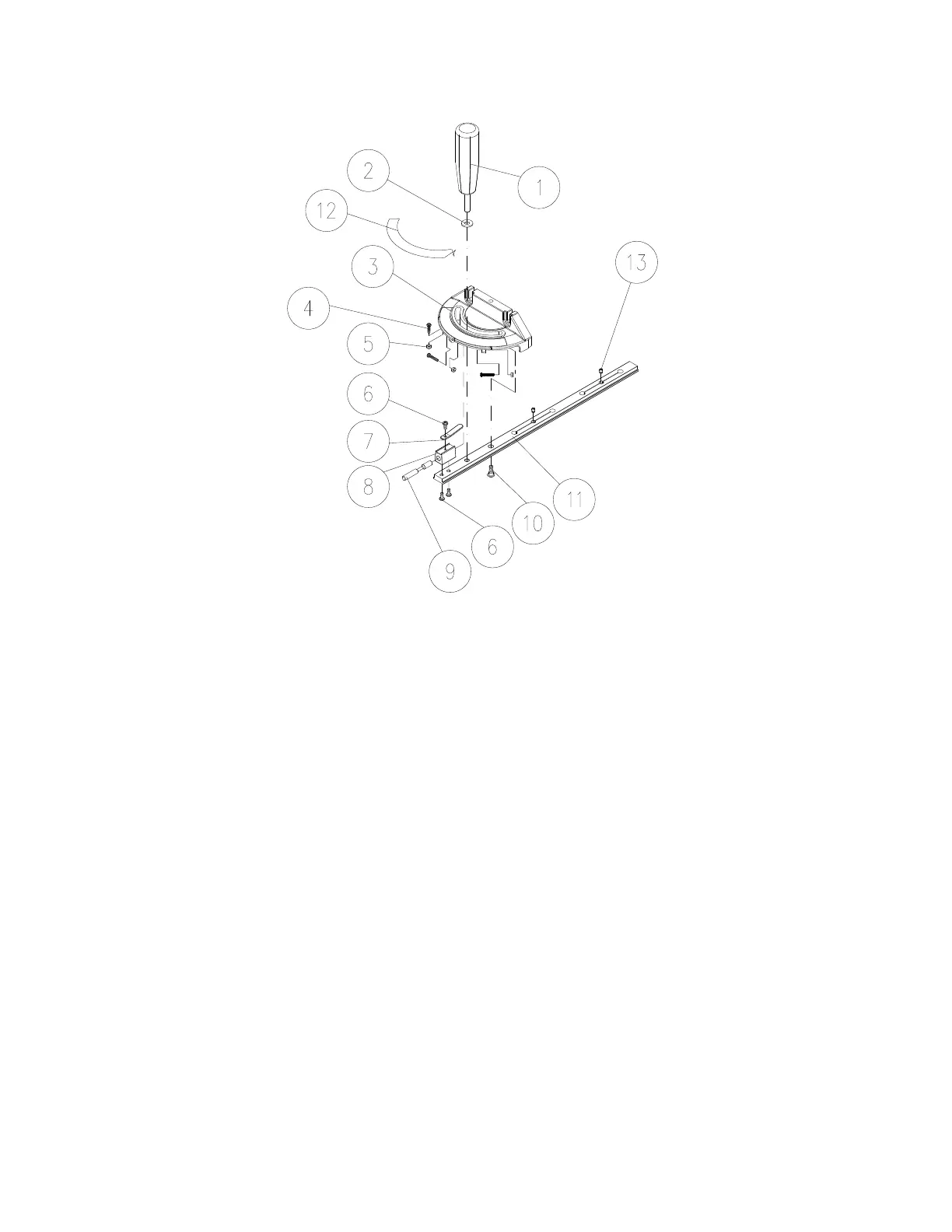

14.6.1 Miter Gauge Assembly – Exploded View
14.6.2 Miter Gauge Assembly – Parts List
.................. JPS10TSC-MG ......... Miter Gauge Assembly (#1 thru 13) ......................... ...................................... 1
1 ................ JPS10TS-327 ............ Handle ..................................................................... ...................................... 1
2 ................ TS-0680041 .............. Flat Washer ............................................................. 3/8” ................................ 1
3 ................ JWTS10-329 ............. Miter Gauge Body .................................................... ...................................... 1
4 ................ TS-2284202 .............. Phillips Pan Head Machine Screw ........................... M40.7x20 ...................... 3
5 ................ TS-1540021 .............. Hex Nut .................................................................... M4 ................................. 3
6 ................ TS-1533032 .............. Phillips Pan Head Machine Screw ........................... M5-0.8x10 ..................... 3
7 ................ JWTS10-333 ............. Pointer ..................................................................... ...................................... 1
8 ................ JWTS10-334 ............. Bracket..................................................................... ...................................... 1
9 ................ JWTS10-335 ............. Stop Pin ................................................................... ...................................... 1
10 .............. JWTS10-336 ............. Screw ....................................................................... ...................................... 1
11 .............. JPS10TSC-611 ......... Miter Bar .................................................................. ...................................... 1
12 .............. JPS10TS-340 ............ Scale ........................................................................ ...................................... 1
13 .............. F010450 .................... Socket Set Screw .................................................... M8-1.25x5 ..................... 2
