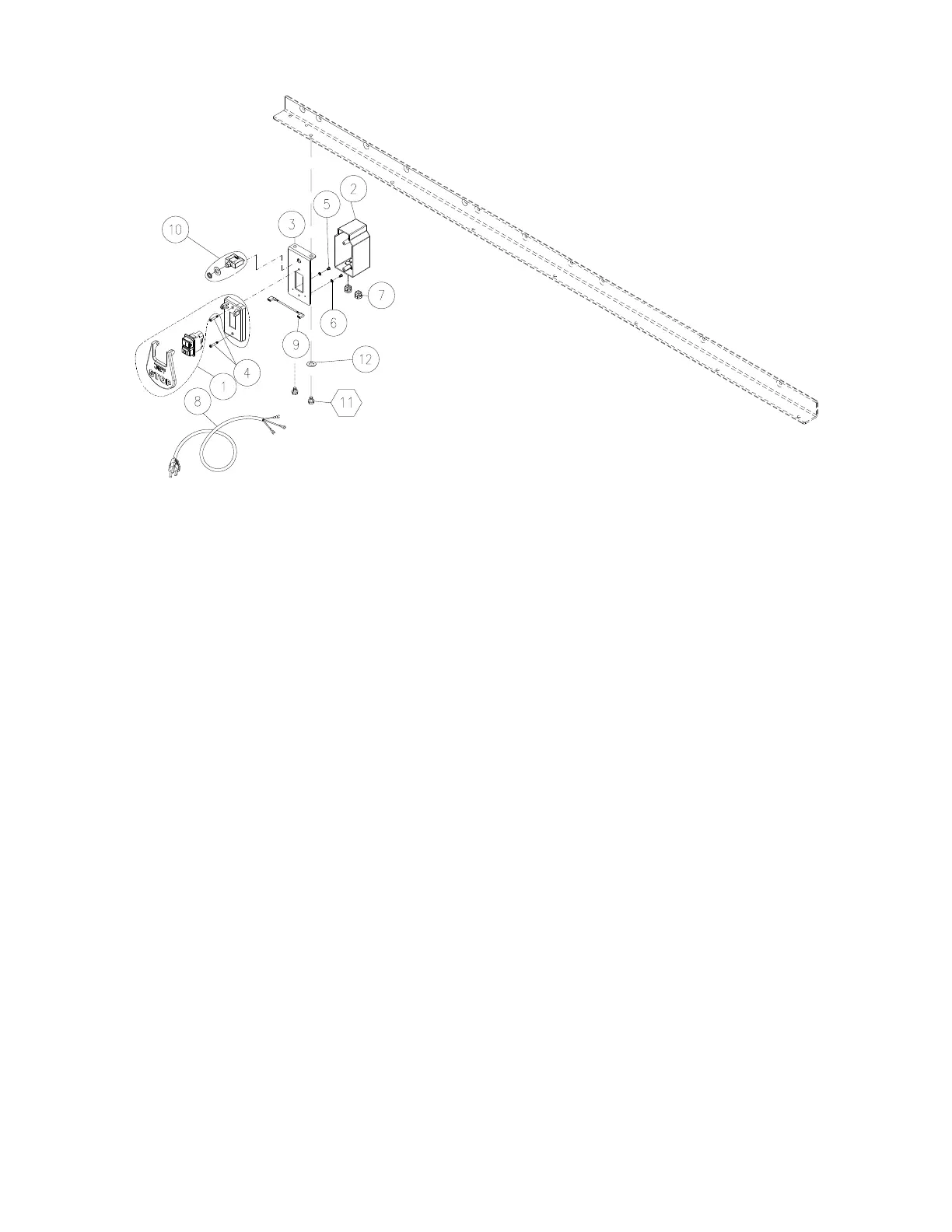

14.4.1 Switch Assembly – Exploded View
14.4.2 Switch Assembly – Parts List
Index No Part No Description Size Qty
1 ................ JPS10TSC-401A ....... Magnetic Switch Kit ................................................. 230V.............................. 1
.................. JPS10TSC-401ARU.. Magnetic Switch Kit ................................................. 400V.............................. 1
2 ................ JPS10TSC-402 ......... Switch Box ............................................................... 230V.............................. 1
.................. JPS10TSC-402ARU.. Switch Box ............................................................... 400V.............................. 1
3 ................ JPS10TSC-403 ......... Switch Plate ............................................................. 230V.............................. 1
.................. JPS10TSC-403ARU.. Switch Plate ............................................................. 400V.............................. 1
4 ................ JPS10TSC-404 ......... Machine Screw ........................................................ M4x32 ........................... 2
.................. JPS10TSC-404RU .... Machine Screw ........................................................ ...................................... 4
5 ................ TS-2171012 .............. Phillips Pan HD Mach Screw ................................... M4-0.7x6 ....................... 2
6 ................ F002095 .................... Lock Washer, Ext Tooth .......................................... M4 ................................. 2
7 ................ JPS10TS-351 ............ Strain Relief ............................................................. SR-6R3 ......................... 2
8 ................ JPS10TSC-408B ....... Power Cable w/ VDE Plug ....................................... H05VV-F 3C x 1.5mm ... 1
.................. JPS10TSC-408C....... Power Cable w/o Plug ............................................. H05VV-F 4C x 1.0mm ... 1
9 ................ JPS10TSC-409 ......... Connection Wire ...................................................... Only 230V ..................... 1
10 .............. JPS10TSC-410B ....... Overload Protector................................................... 14A, 230V ..................... 1
11 .............. 5507669 .................... Hex Cap Screw ........................................................ M8x10 ........................... 2
12 .............. TS-1550061 .............. Flat Washer ............................................................. M8 ................................. 2
13 .............. JPS10TSC-413A ....... Motor Cable_230V (not shown) ............................... H05VV-F 3C x 1.5mm ... 1
.................. JPS10TSC-413B ....... Motor Cable_400V (not shown) ............................... H05VV-F 4C x 1.0mm ... 1
