Read and understand all
assembly instructions before attempting
assembly. Failure to comply may cause serious
injury.
6.0 Setup and assembly
6.1 Shipping contents
See Figures 5-1 and 5-2.
NOTE: Some parts may have come pre-assembled
to the table saw.
1 Table saw with on/off switch (not shown)
1 Blade (preinstalled on saw)
1 Table insert (preinstalled on saw)
1 Arbor wrench (preinstalled on tool holder)
1 Miter gauge – A
1 Push stick – B
1 Handwheel, large mounting hole – C
1 Handwheel, small mounting hole – D
1 Guard assembly – E
1 Anti-kickback pawl assembly – F
1 Riving knife – G
1 Low profile riving knife – H
1 Motor cover – J
4 Legs – K
2 Extension wings – L
1 Bottom dust plate – M
1 Operator’s manual (not shown)
1 Product registration card (not shown)
1 Hardware package
6.1.2 Hardware package
1 Storage hook – HP1
1 Open end wrench 11-13mm – HP2
1 Knob – HP3
1 Spacer – HP4
3 Hex wrenches, 2.5, 4, 5 mm – HP5
4 Levelers – HP6
8 Socket hd cap screws M8x20 – HP7
8 Socket hd cap screws M6x16 – HP8
1 Soc hd cap screw w/lock wshr M5x12 – HP9
2 Tapping screws M5x12 – HP10
2 Hex cap screws w/flat wshr M8x10 – HP11
4 Pan hd machine screws M6x16 – HP12
8 Flat washers M8 – HP13
12 Flat washers M6 – HP14
4 Hex nuts M8 – HP15
8 Tapping screws M5x12 – HP16
NOTE: Fence and rail assemblies with fasteners,
and wood extension tables and legs with fasteners,
are shipped in separate boxes.

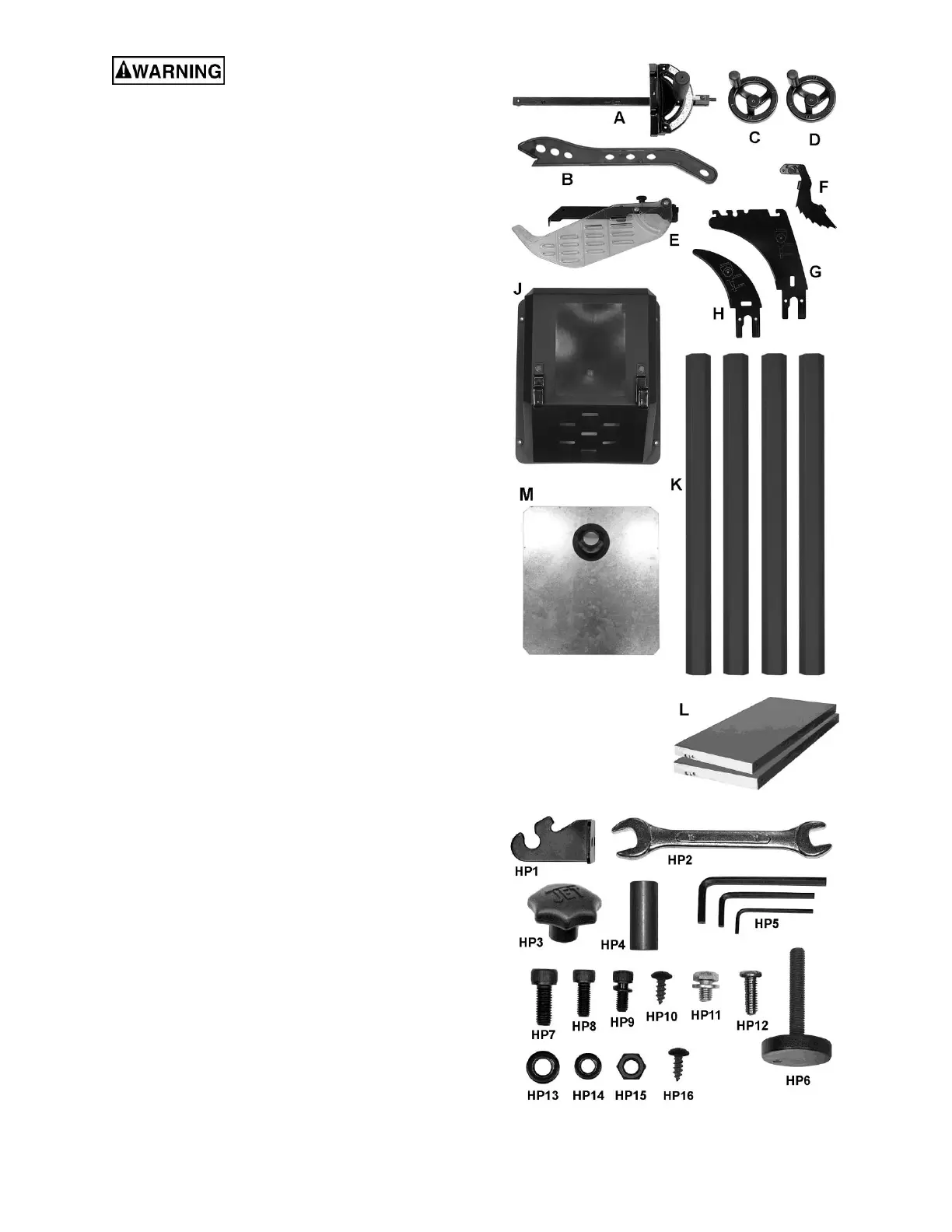

Figure 5-1: Contents
(not to scale)
Figure 5-2: Hardware (not to scale)
