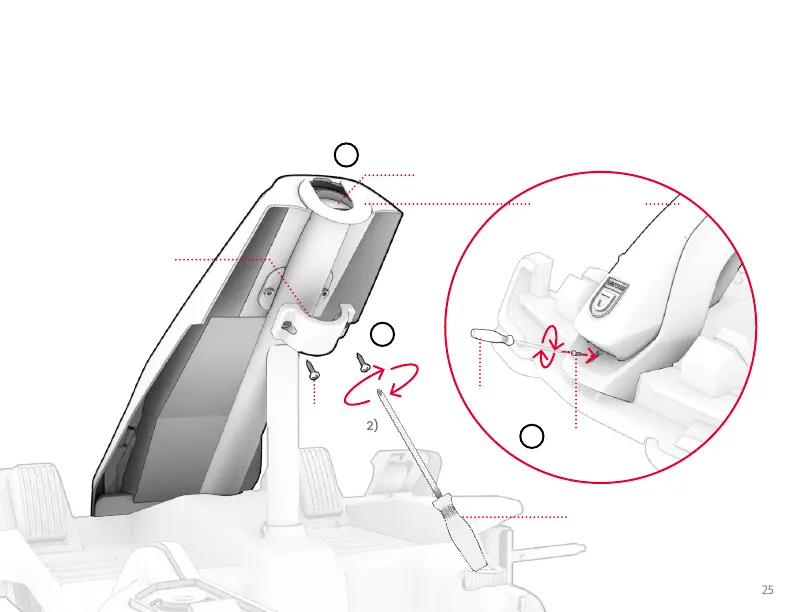

5. CHECK THAT THE TOP OF THE FRONT FORK (B) IS ALIGNED WITH THE HOLE IN THE TOP OF THE FRONT GUARD (C).
6. POSITION THE FRONT GUARD ATTACHMENT RING (D) AROUND THE FRONT FORK SUCH THAT THE 2 SCREW HOLES IN THE
RING ARE ALIGNED WITH THE 2 SCREW HOLES ON THE BACK SIDE OF THE FRONT GUARD.
7. INSERT 1 MEDIUM SCREW (S2) INTO EACH SET OF ALIGNED HOLES BY TWISTING IT IN CLOCKWISE. (2 TOTAL) TIGHTEN THE
SCREWS WITH THE PHILLIPS-HEAD SCREWDRIVER. INSERT 1 MEDIUM SCREW (S2) INTO THE SET OF ALIGNED HOLES ON THE
FRONT SIDE OF THE FRONT GUARD AND FRAME UNDERNEATH IT BY TWISTING IT IN CLOCKWISE. TIGHTEN THE SCREW WITH
THE PHILLIPS-HEAD SCREWDRIVER.
7
6
FRONT GUARD (C)
MEDIUM
SCREW (S2)
FRONT FORK (B)
FRONT GUARD
ATTACHMENT RING (D)
5
PHILLIPS-HEAD
SCREWDRIVER
PHILLIPS-HEAD
SCREWDRIVER
MEDIUM
SCREW (S2)
