Table 2: Environmental requirements
Parameter
Specification
Altitude
Up to 2000m
Temperature
0 to 40°C
Humidity
Up to 95% RH (0 to 40°C)
Voltage
Main supply voltage fluctuations must not
exceed ± 10% of the nominal voltage
Product Overview
RL1 Front Panel
A front view of the RL1 meter is shown in Figure 2. It features a touchscreen which displays information
such as references, measurements, test plans, setup and detectors.
The FC output panel (output and input panel in the case of a 2X configuration) is located on the front of
the unit. The connections are FC/APC for single-mode and FC/UPC for multimode.

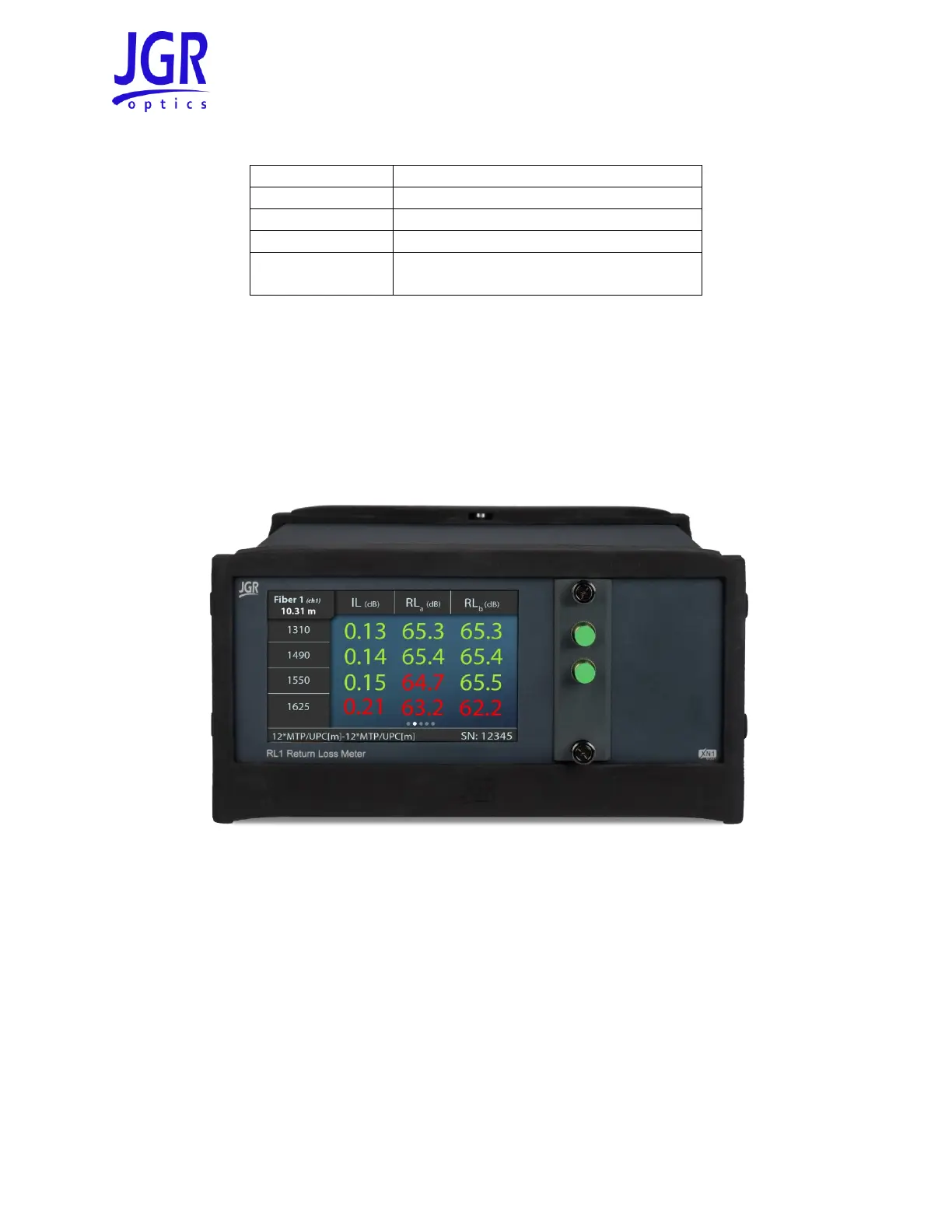

Figure 2: Front view of a dual output RL1
RL1 Rear Panel
A rear view of the RL1 meter is shown in Figure 3. See Table 3 for a detailed description.
