GENERAL INFORMATION
RL1 Automated Return Loss Meter Overview
The RL1 Automated Return Loss Meter has been precisely designed for the most accurate mandrel-free
insertion loss (IL) and return loss (RL) measurements available in the industry. The RL1 is capable of testing
even the most challenging fiber-optic cable assemblies and components with smart integrated analysis
settings adaptable to user requirements.

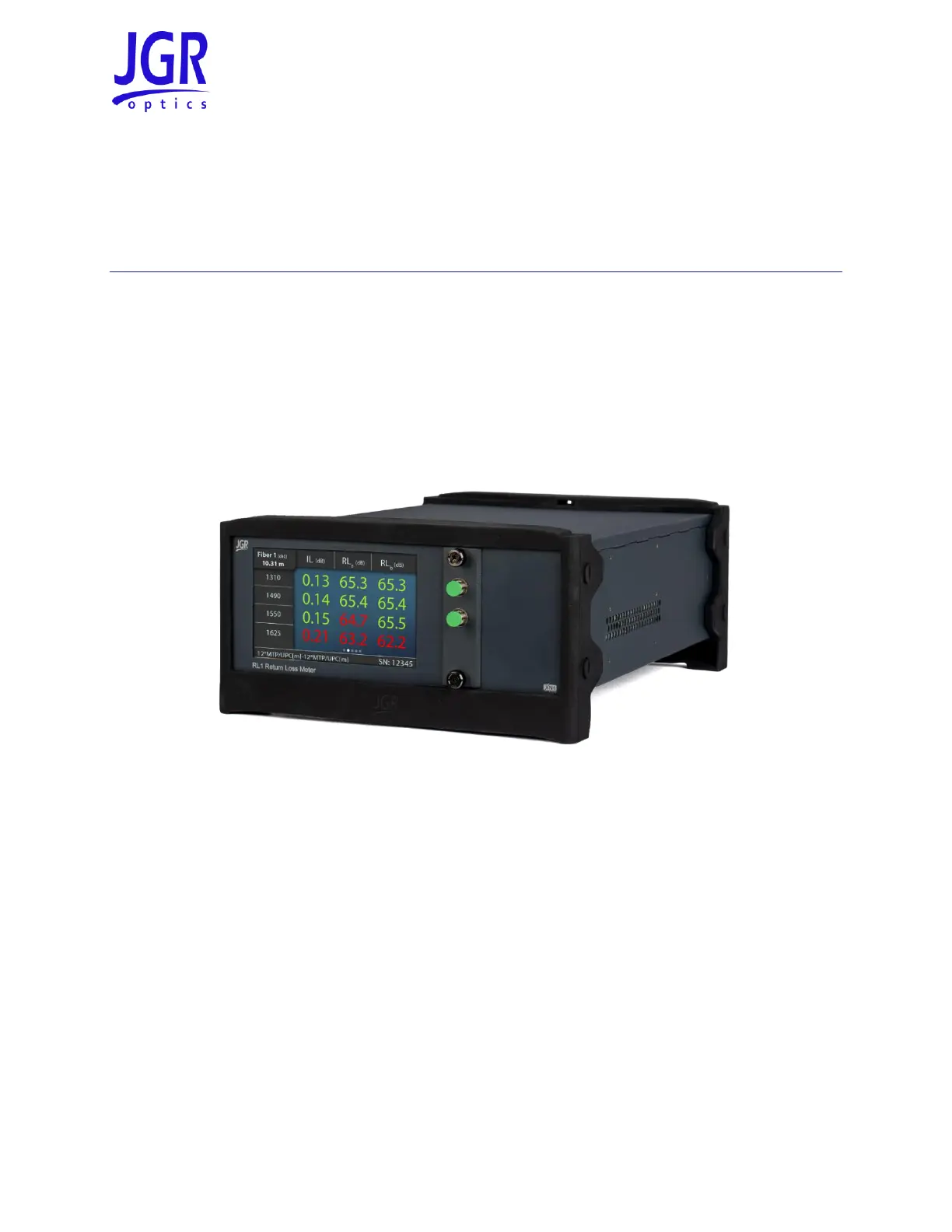

Figure 1: RL1 Automated Return Loss Meter
Applications
• IL/RL testing for fiber-optic cable assemblies
• QA and R&D
• Single-mode and multimode fibers
• Simplex, duplex and multifiber assemblies
Key Features
• Mandrel-free RL testing
• Fastest and most accurate in its class
• Wireless integrating sphere detector
• Up to 4 built-in wavelengths:
o SM: 1310, 1490, 1550, 1625nm
