RL1 User Manual
15
M-RL1-001-01
Table 7: Detailed description of the RL1 Reference page (see Figure 9)
Description
Detector
• Tap: go to the next detector
• Press and hold: open scroll menu to select desired detector
Channel
• Tap: perform a full reference for that channel
• Press and swipe up/down: scroll through the channels
Stored reference values
• Tap: perform a full reference on all channels and wavelengths
• Units are in dB and m for IL and length references respectively
Wavelength
• Tap: perform an IL reference of all channels for that wavelength
Length
• Tap: perform a length reference for all channels
Performing a Measurement
Swipe left to access the Measure page (Figure 10). See Table 8 for a detailed description.

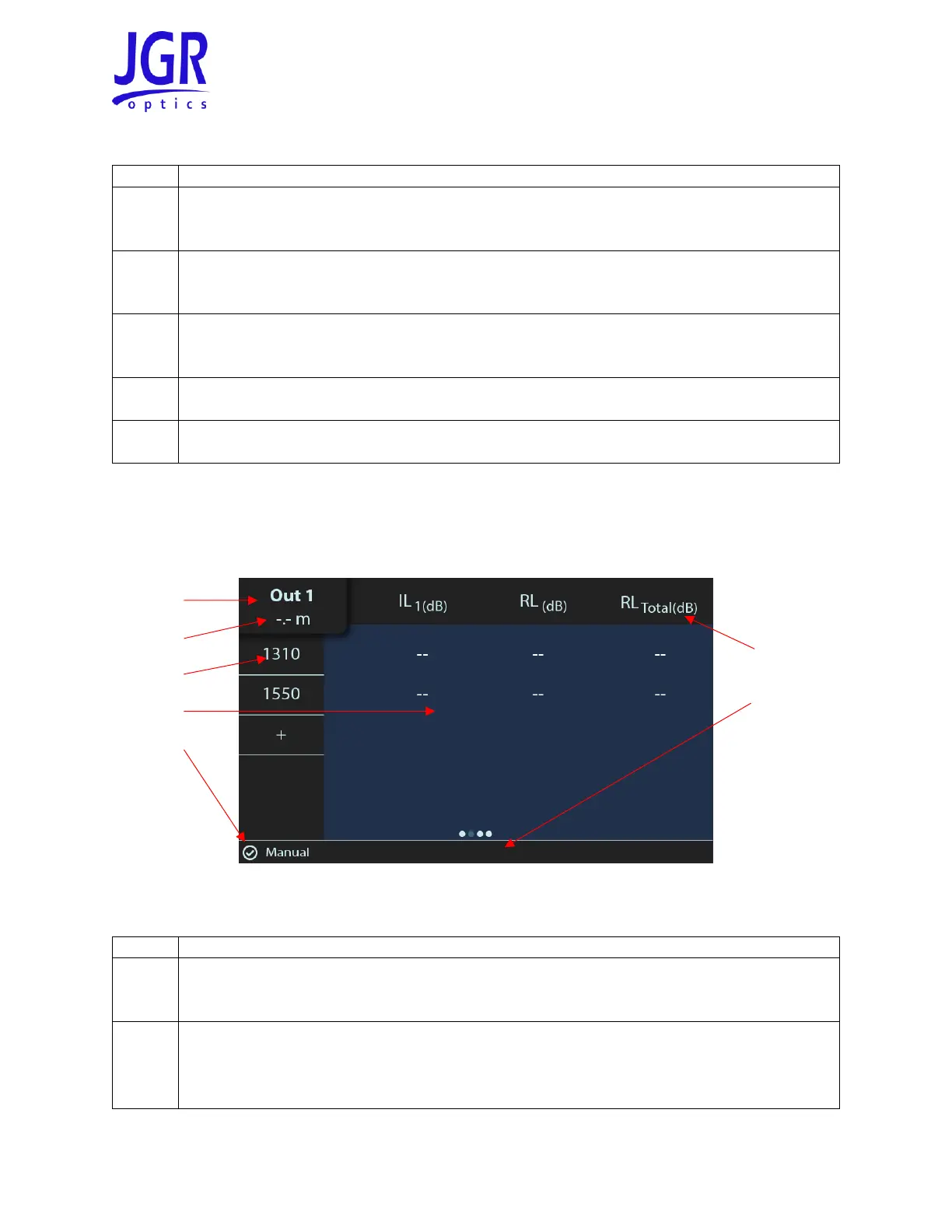

Figure 10: RL1 Measure page
Table 8: Detailed description of the RL1 Measure page (see Figure 10)
Description
Channel
• Tap: go to the next output/channel
• Press and hold: open scroll menu to select desired output or SX1 switch channel
Length
• Only available when RL parameter is selected (RL
DUAL
disables length display)
• Units are in m
• See Table 6 for more information on the effect of the RL length bin
1
2
3
4
5
6
7
