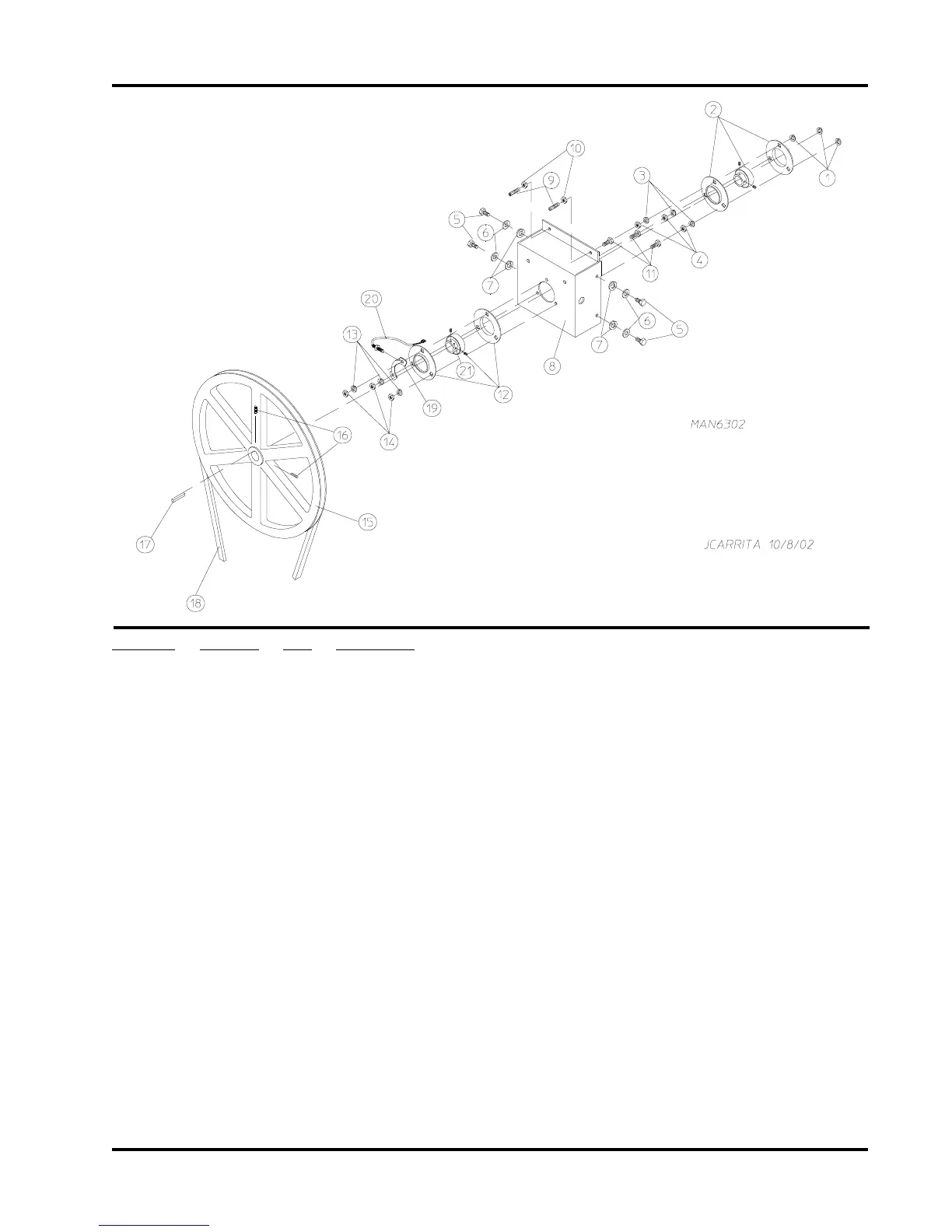

Basket (Tumbler) Bearing Assembly
Illus. No. Part No. Qty. Description
1 153002 3 5/16” Lock Washer
2 880213 1 1-1/4” Flange Bearing with Nylock Setscrew
3 153002 3 5/16” Lock Washer
4 152004 3 5/16-18 Hex Nut
5 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt
6 153002 4 5/16” Lock Washer
7 153004 4 3/8” Flat Washer
8 883609 1 1” Bearing Box Assembly Complete
(includes illus. nos. 8 through 14 and 19 through 21)
801105 1 Bearing Box ONLY
9 150610 2 5/16-18 x 1-1/2” Allen Setscrew
10 152004 2 5/16-18 Hex Nut
11 150501 3 5/16-18 x 3/4” Hex Head Machine Bolt
12 880201 1 1” Flange Bearing with Nylock Setscrews
13 153002 3 5/16” Lock Washer
14 152004 3 5/16-18 Hex Nut
15 101100 1 18” Pulley ONLY
16 154301 2 5/16-18 x 5/16” Setscrew
17 100713 1 1/4” x 1/4” x 7/8” Key
18 100107 1 5L-670 V-Belt (basket [tumbler] to idler)
19 319004 1 Rotational Sensor Bracket
20 883386 1 Rotational Sensor Assembly
21 102120 1 Rotational Sensor Magnet
To Next Page
