34
Illus. No. Part No. Qty. Description
1 322809 1 Back Electrical Box Cover
2 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
3* 314424 1 Gas Top Back Guard
322075 1 Electric Top Back Guard
4 150301 7 #8-18 x 7/16” Phillips Pan Head TEK Screw
5 150300 10 #10-16 x 1/2” Hex Washer TEK Screw
6* 312545 1 Outer Top
7 322082 1 Bottom Back Guard
8 150301 13 #8-18 x 7/16” Phillips Pan Head TEK Screw
9 103500 4 Leveling Leg
* There is no outer top or top back guard on steam models.

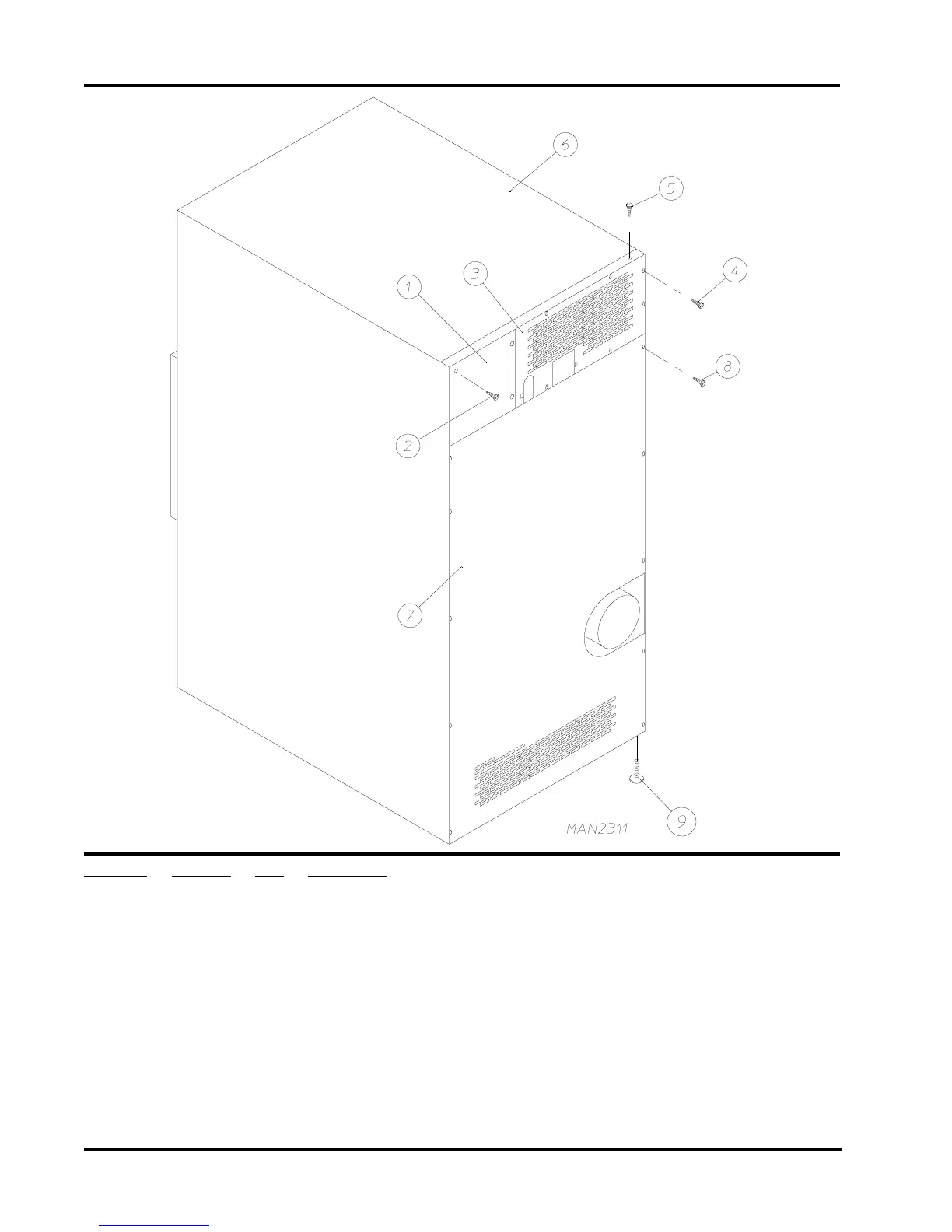

Outer Top/Back Guard Assemblies
