Section 3 - Controls and Indicators
3-2 31200345

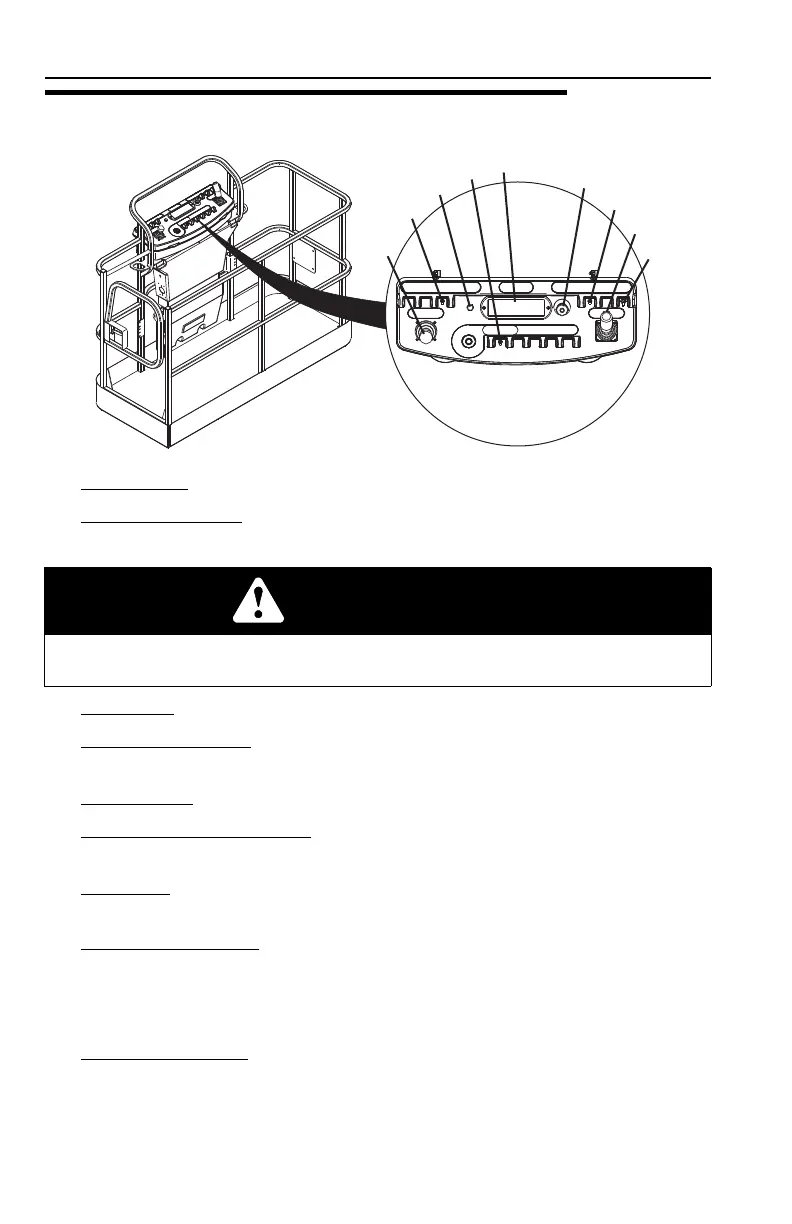

3.2 CONTROLS
1. Boom Joystick: See page 3-4.
2. Platform Level Switch
: Push switch forward to tilt platform up; pull switch back to tilt
platform down.
3. Horn Button
: Push button to sound horn.
4. Platform Rotate Switch
: Push switch right to rotate platform right; push switch left to
rotate platform left.
5. Indicator Panel
: See page 3-3.
6. Power/Emergency Stop Switch
: Push down to shut off power to platform controls
and stop engine.
7. Start Switch
: Push switch forward and hold to start engine. Release switch after
engine starts.
8. Function Enable Trigger
:
• Squeeze trigger and hold to enable platform controls.
• In the event the engine does not start, squeeze trigger and hold to start the
auxiliary power unit. See “Platform Auxiliary Power System” on page 6-2.
9. Engine Preheat Switch
: At temperatures below 0°C (32°F), push switch forward and
hold to activate engine preheat.
WARNING
FALL/CRUSH HAZARD. Only use platform tilt function for slight leveling of the
platform. Incorrect use could cause the load/occupants to shift or fall.
