Section 3 - Controls and Indicators
3-331200345

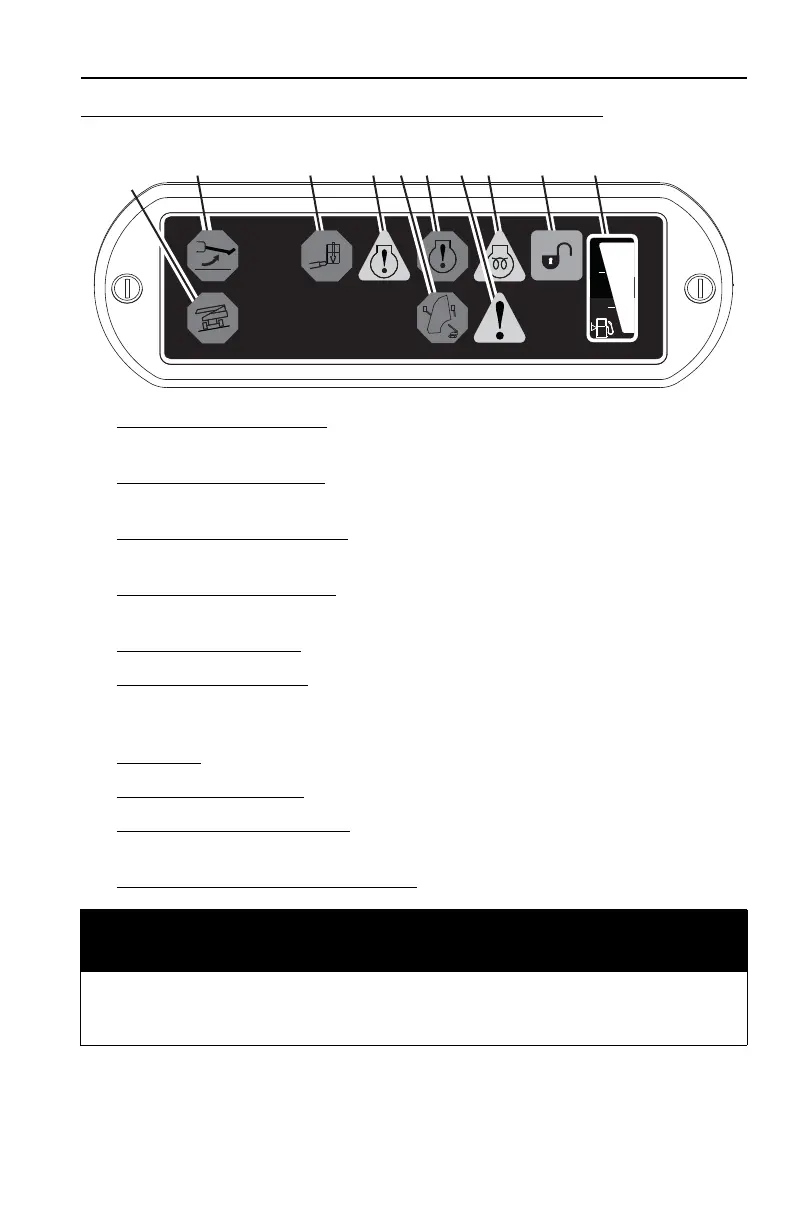

Indicator Panel
1. Outriggers Not Set Indicator: Illuminates and buzzer sounds when outriggers are not
set. All functions are disabled until outriggers are set.
2. Platform Overload Indicator
: Illuminates and buzzer sounds when platform capacity
is exceeded. All functions are disabled until load is decreased.
3. Engine Fault Warning Indicator
: Illuminates and buzzer sounds when engine is
operating outside the normal range.
4. Engine Fault Critical Indicator
: Illuminates and buzzer sounds when a critical engine
fault exists.
5. Engine Preheat Indicator
: Illuminates when engine preheat switch is activated.
6. Function Enable Indicator
: Illuminates when function enable trigger is activated. If no
valid function is operated within a seven second period, the indicator will go out and
all functions are disabled.
7. Fuel Gauge
: Indicates amount of fuel in fuel tank.
8. System Distress Indicator
: Illuminates and buzzer sounds when machine faults exist.
9. Telehandler Not Level Indicator
: Illuminates and buzzer sounds when telehandler is
not level. All functions are disabled until telehandler is level.
10. Boom Control System Warning Indicator
: Not used at present time.
NOTICE
EQUIPMENT DAMAGE. When the engine fault, system distress or a red indicator
illuminates, immediately lower platform to ground and stop engine. Determine cause
and correct before continued use.
