JLG 600A - Level Cylinder

SECTION 5 - HYDRAULICS
5-18 – JLG Lift – 3121201
1. Barrel
1A. Bushing
2. Rod
2A. Bushing
3. Piston
4. Head
5. Tapered Bushing
6. Spacer
7. Cartridge Valve
8. O-Ring Plug
9. Socket Head Capscrew
10. Washer Ring
11. Loctite #242 (Not Shown)
12. Locking Primer (Not Shown)
13. Seal
14. Lock Ring
15. O-Ring
16. Back-Up Ring
17. Wear Ring
18. O-Ring
19. Back-Up Ring
20. Rod Seal
21. Wiper Ring
22. Not Used
23. Valve Cartridge
24. O-Ring Plug
25. Socket Head Screw

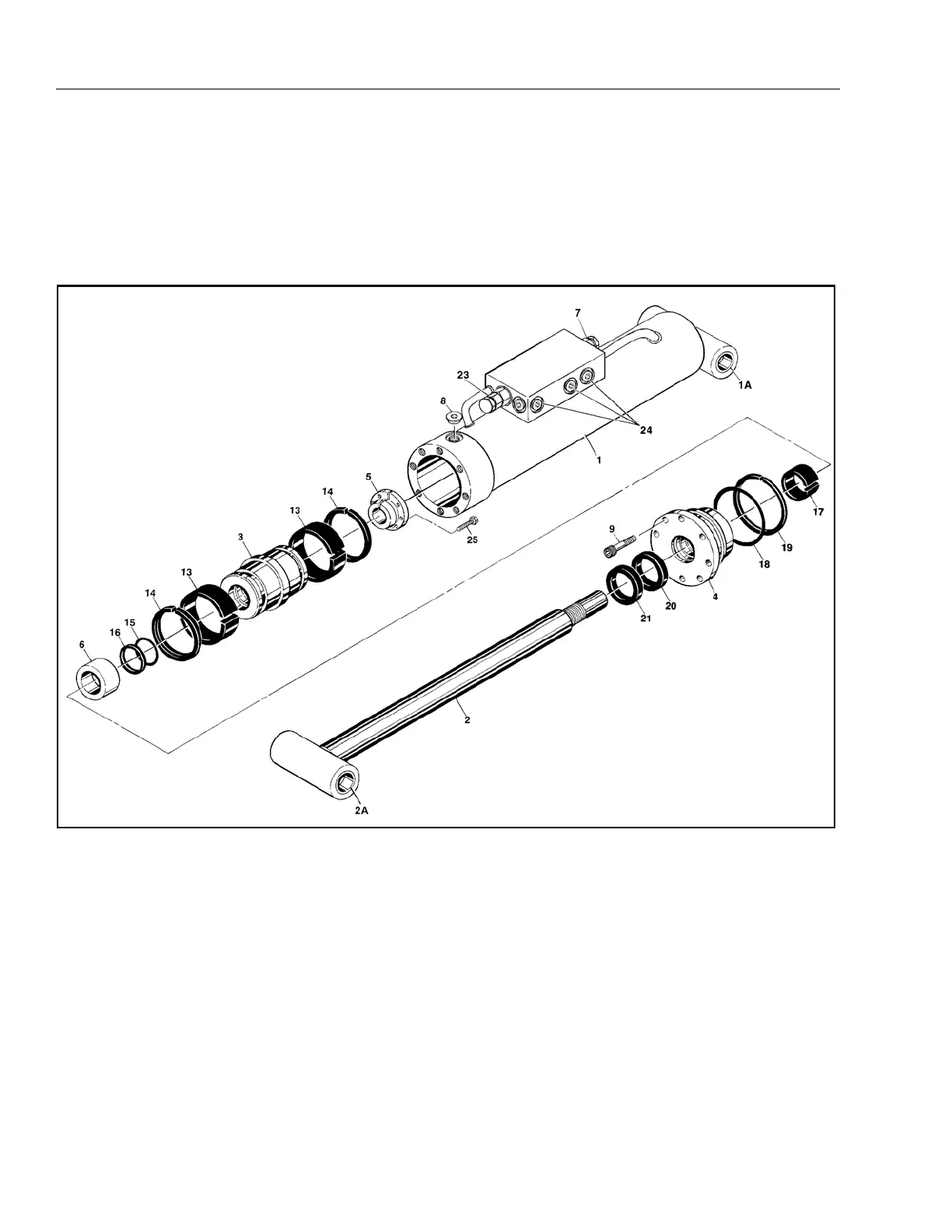

Figure 5-20. Level Cylinder
