JLG 600A - Level (Upright) Cylinder

SECTION 5 - HYDRAULICS
5-22 – JLG Lift – 3121201
2
22
9
2A
15
6
11
12
12
11
14
13
4
16
17
19
3
5
18
1
1A
7
10
8
25
1. Barrel
1A. Bushing
2. Rod
2A. Bushing
3. Head
4. Piston
5. Tapered Bushing
6. Tube Spacer
7. Valve Cartridge
8. Valve Cartridge
9. Socket Head Capscrew
10. O-Ring Plug
11. Lock Ring
12. Hydrolock Seal
13. O-Ring
14. Back-Up Ring
15. Wear Ring
16. O-Ring
17. Back-Up Ring
18. Rod Seal
19. Wiper Ring
20. Loctite #242 (Not Shown)
21. Locking Primer (Not
Shown)
22. Washer Ring
23. Not Used
24. Bolt
25. O-Ring Plug
26. Loctite #609

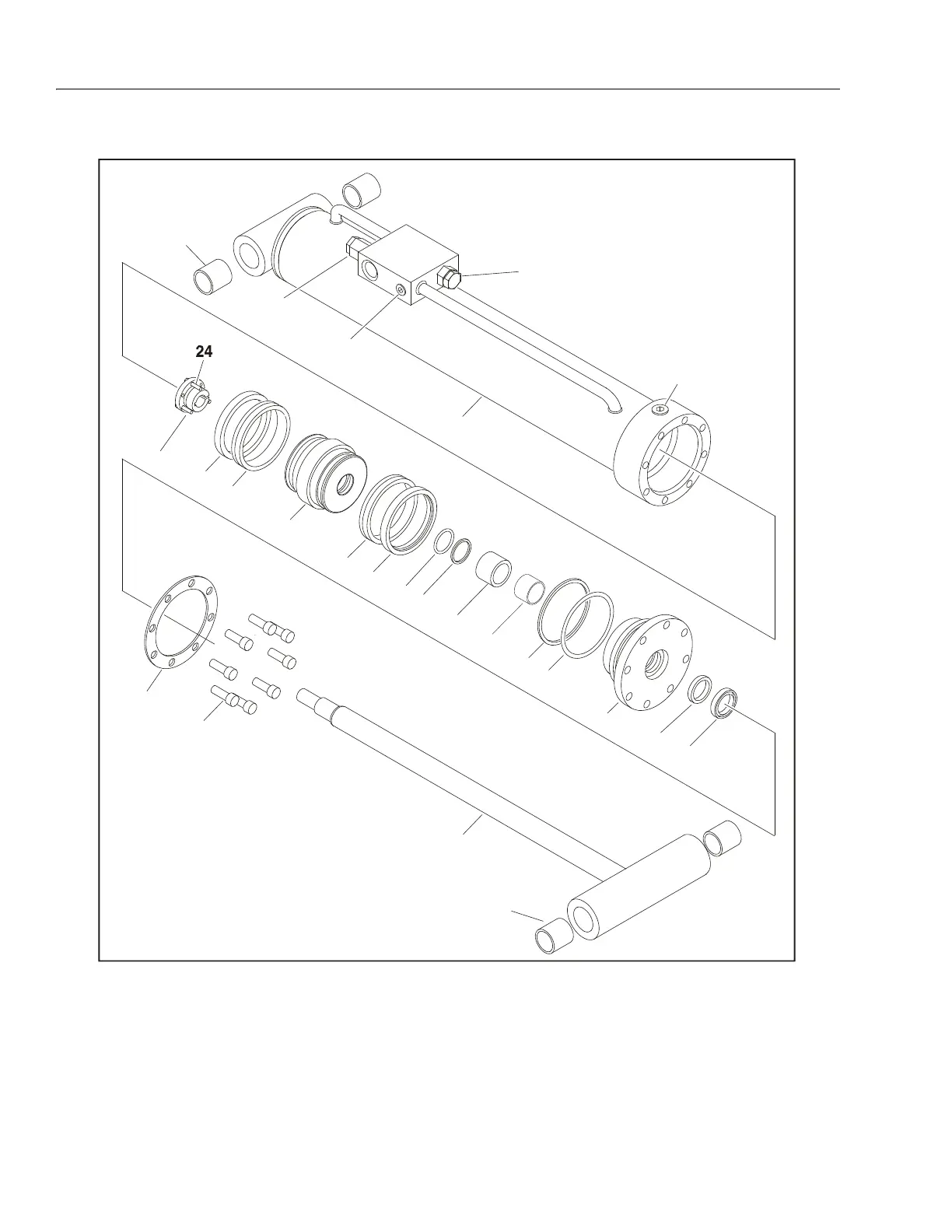

Figure 5-24. Level (Upright) Cylinder
