SECTION 5 - HYDRAULICS
3121201 – JLG Lift – 5-39

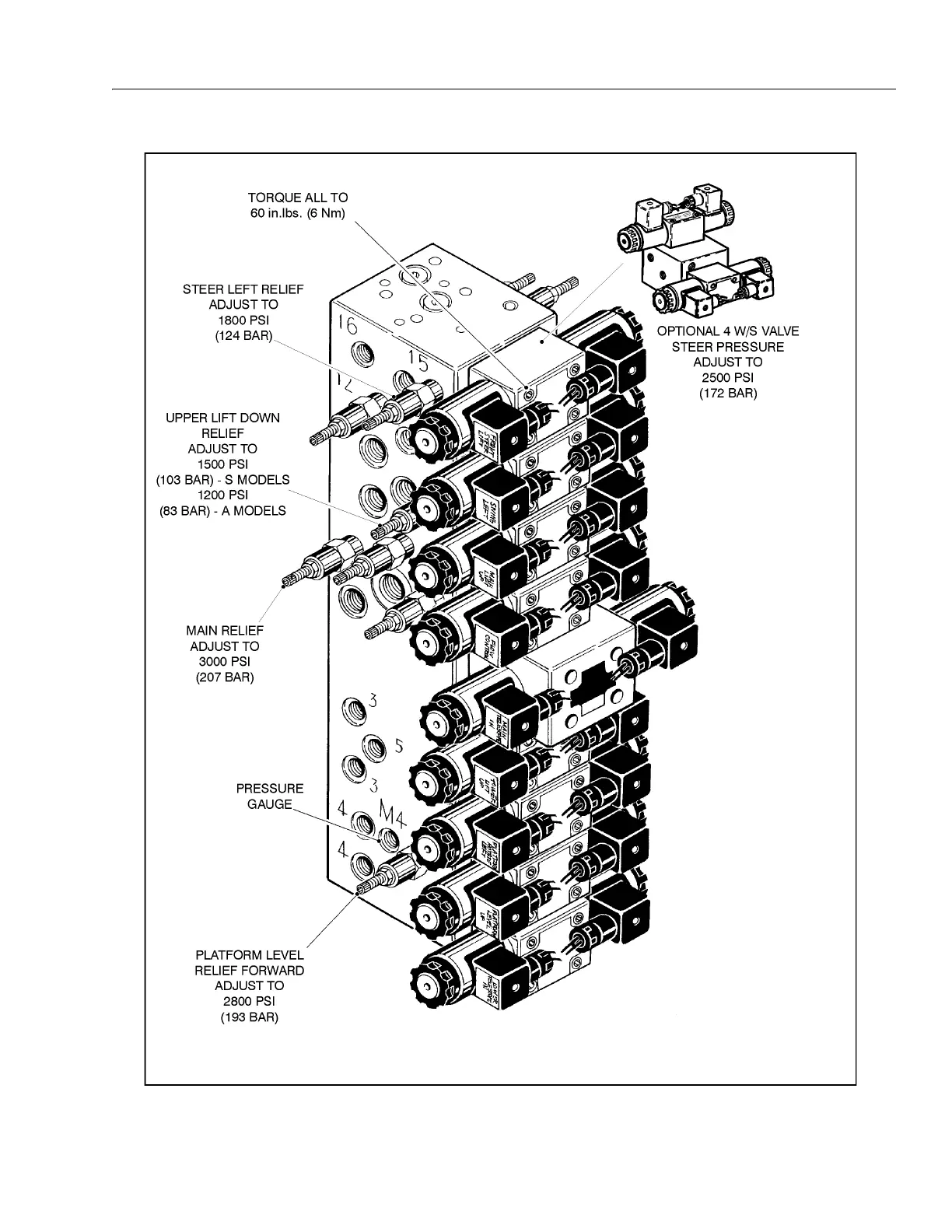

Figure 5-36. Main Control Valve Pressure Adjustments - Sheet 1 of 2
NOTE: Torque all valve cartridges 18 to 20 ft.lbs. (24.5 to 27.2 Nm).
