SECTION 3 - CHASSIS & TURNTABLE
3-26 – JLG Lift – 3121201

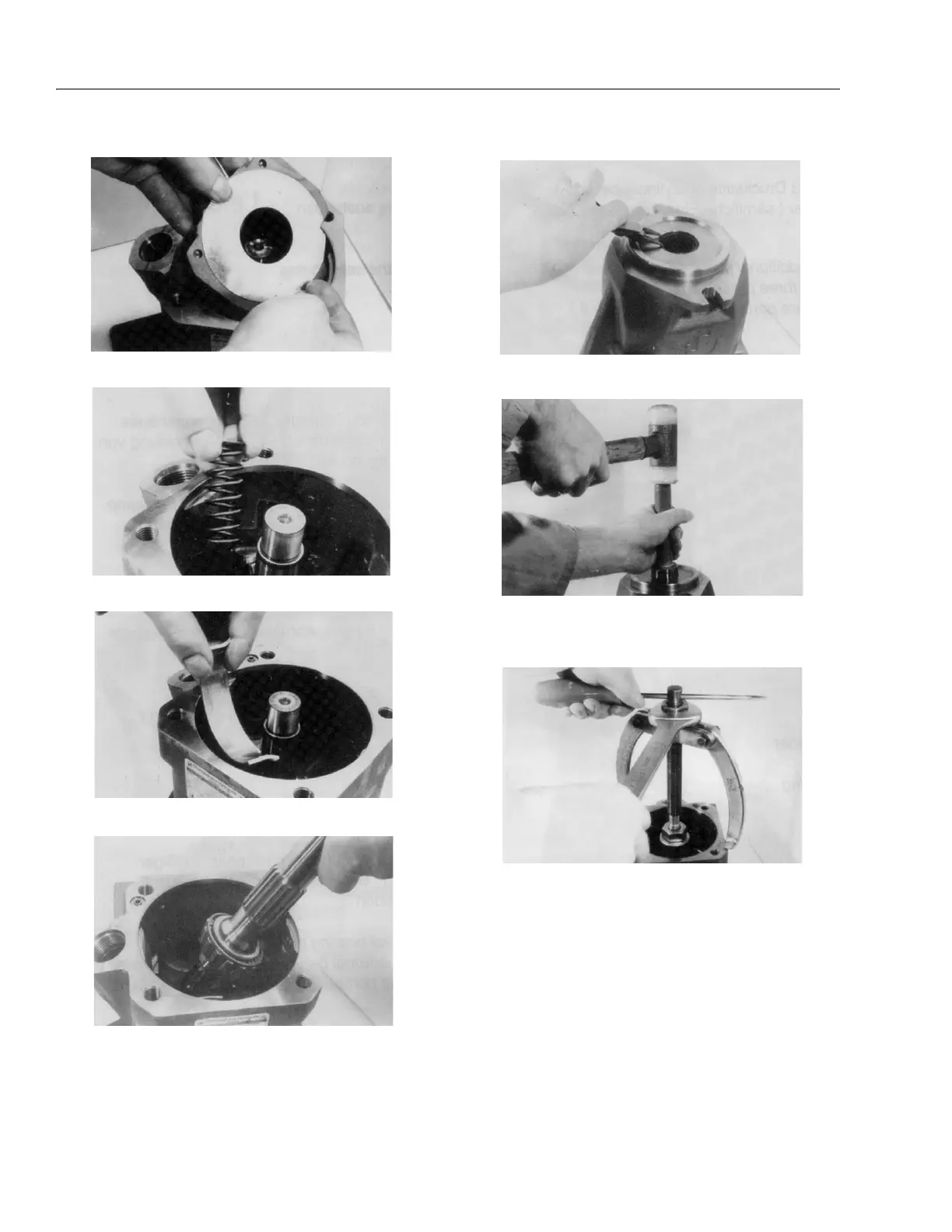

16. Disassembly of the swash plate.
17. Remove the spring.
18. Remove both bearing shells.
19. Remove the drive shaft.
20. Remove the snap ring.
21. Disassemble the sealing ring.
22. The external front bearing ring is pulled out of the
pump housing.
