SECTION 3 - MACHINE CONTROLS AND INDICATORS
3-6 3121716

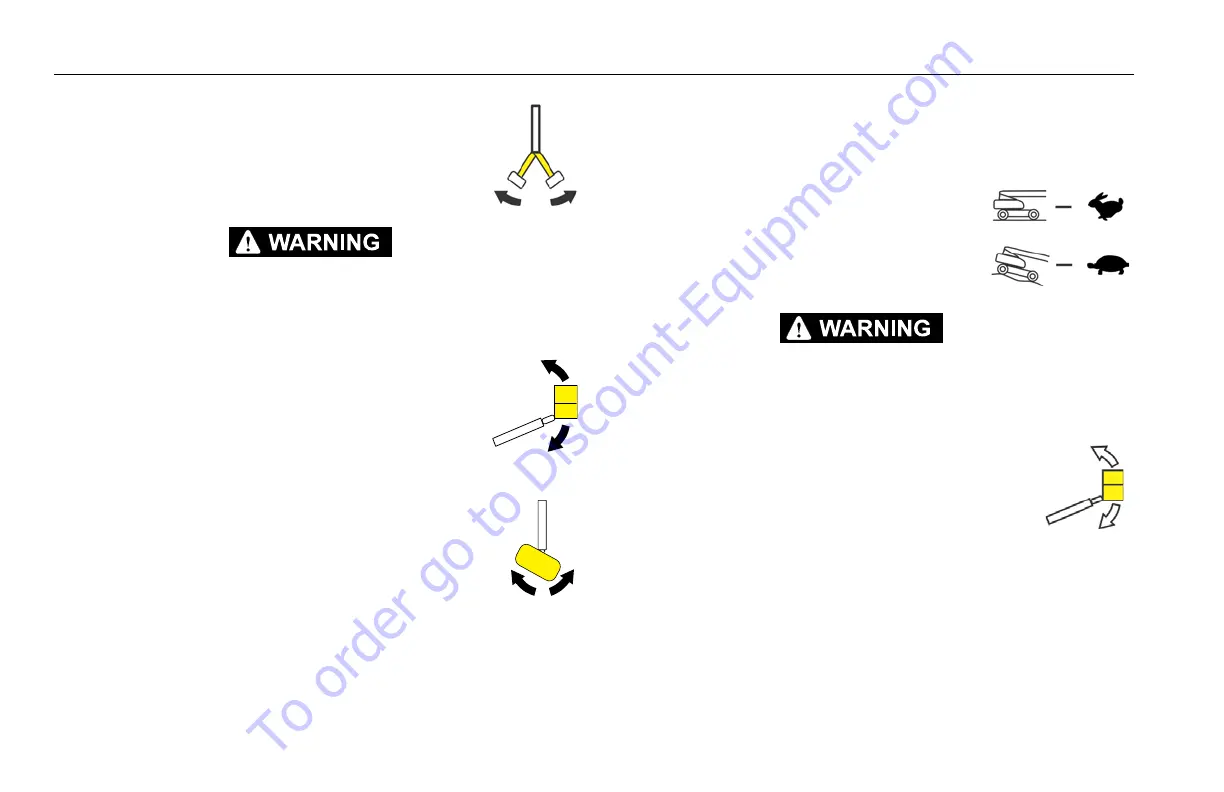

16. Jib Swing (If equipped)
The Jib Swing control switch provides swing-
ing of the jib when positioned left or right.
ONLY USE THE PLATFORM LEVELING OVERRIDE FUNCTION FOR SLIGHT LEVELING OF
THE PLATFORM. INCORRECT USE COULD CAUSE THE LOAD/OCCUPANT TO SHIFT OR
FALL. FAILURE TO DO SO COULD RESULT IN DEATH OR SERIOUS INJURY.
17. Platform Leveling Override
A three position switch allows the operator to
adjust the automatic self leveling system. This
switch is used to adjust platform level in situa-
tions such as ascending/descending a grade.
18. Rotate
A three position Rotate control switch permits
rotation of the platform when positioned to left
or right.
Platform Control Console
(See Figure 3-2.)
1. Speed Mode
Activating the Speed Mode switch
allows the operator to High or Low
Speed travel operation.
ONLY USE THE PLATFORM LEVELING OVERRIDE FUNCTION FOR SLIGHT LEVELING OF
THE PLATFORM. INCORRECT USE COULD CAUSE THE LOAD/OCCUPANT TO SHIFT OR
FALL. FAILURE TO DO SO COULD RESULT IN DEATH OR SERIOUS INJURY.
2. Platform Leveling Override
A three position switch allows the operator to
adjust the automatic self leveling system. This
switch is used to adjust platform level in situa-
tions such as ascending/descending a grade.
