Termination diagrams
A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the controllers. See the
figures in this section for the applicable termination diagrams.
Note: The CGM04060 model does not have analog outputs. References to the analog output apply to the CGM09090
model only.

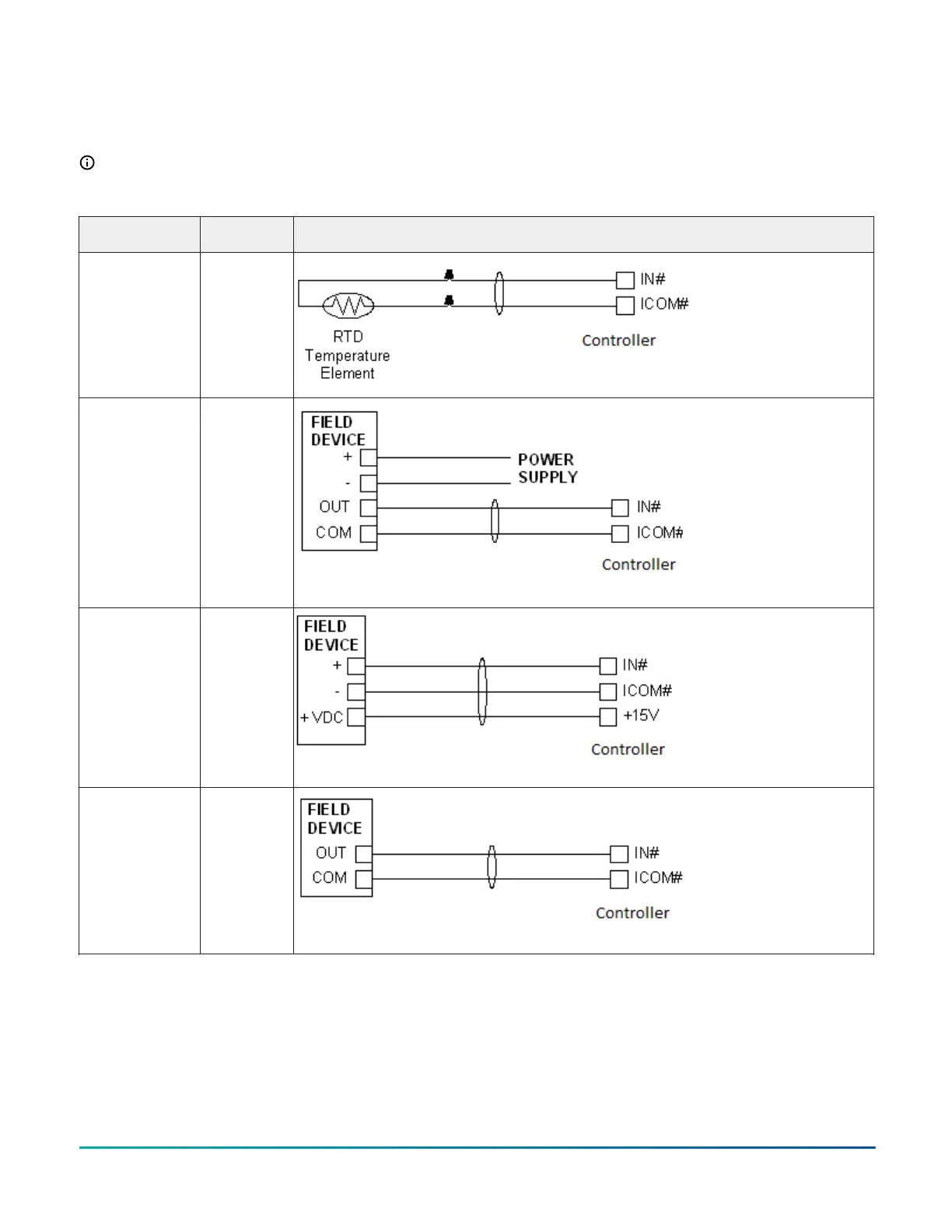

Table 6: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
Temperature
Sensor
UI
Voltage Input -
External Source
UI
Voltage Input -
Internal Source
UI
Voltage Input
(Self-Powered)
UI
M4-CGM General Purpose Application Controller Installation Guide10
