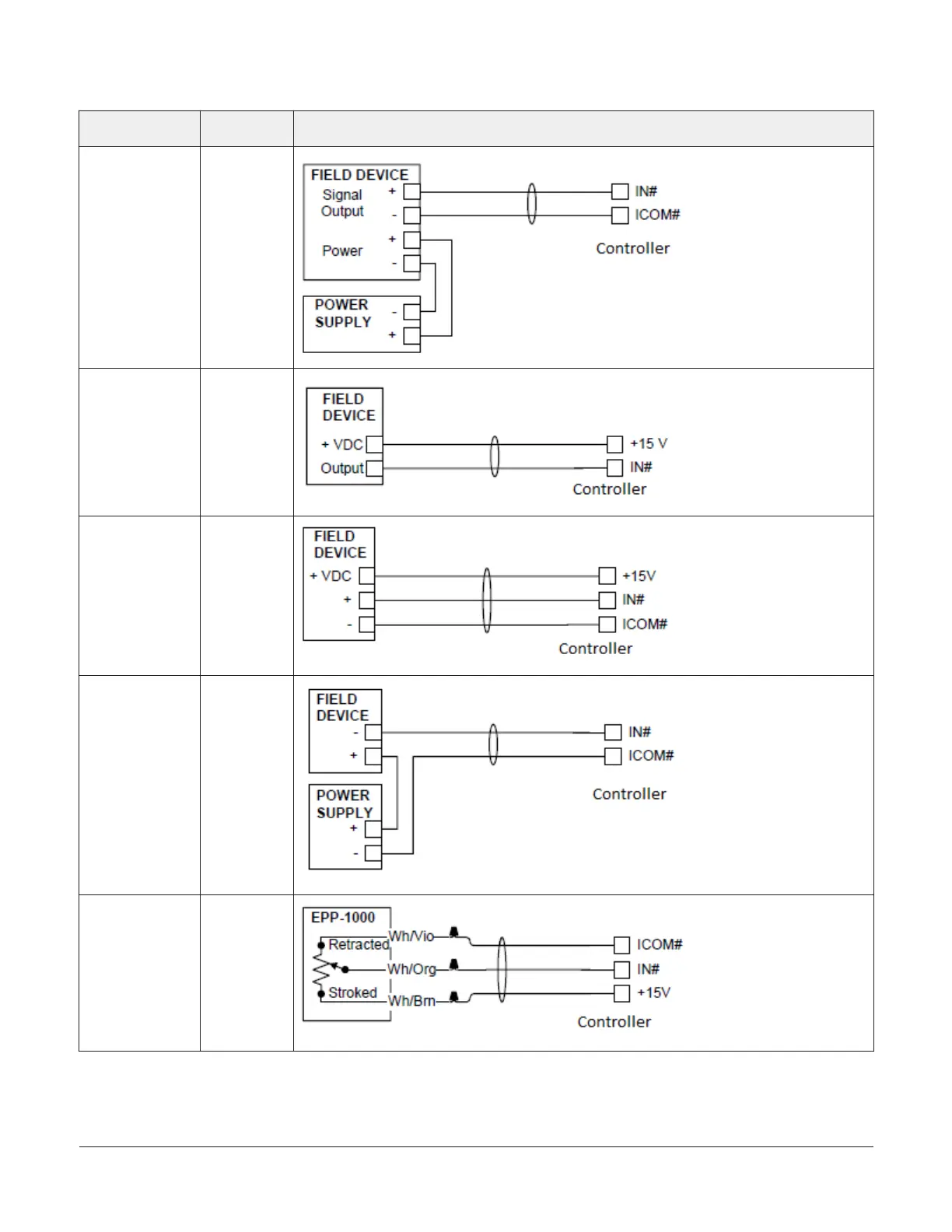

Table 5: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
Current Input -
External Source
(Isolated)
UI
Current Input -
Internal Source (2-
wire)
UI
Current Input -
Internal Source (3
wire)
UI
Current Input -
External Source (in
Loop)
UI
Feedback from
EPP-1000
UI
