Johnson Controls FAC4911 - Input;Output Termination Details; Dry Contact and 0-10 VDC Output Termination; 24 VAC Triac Output Termination

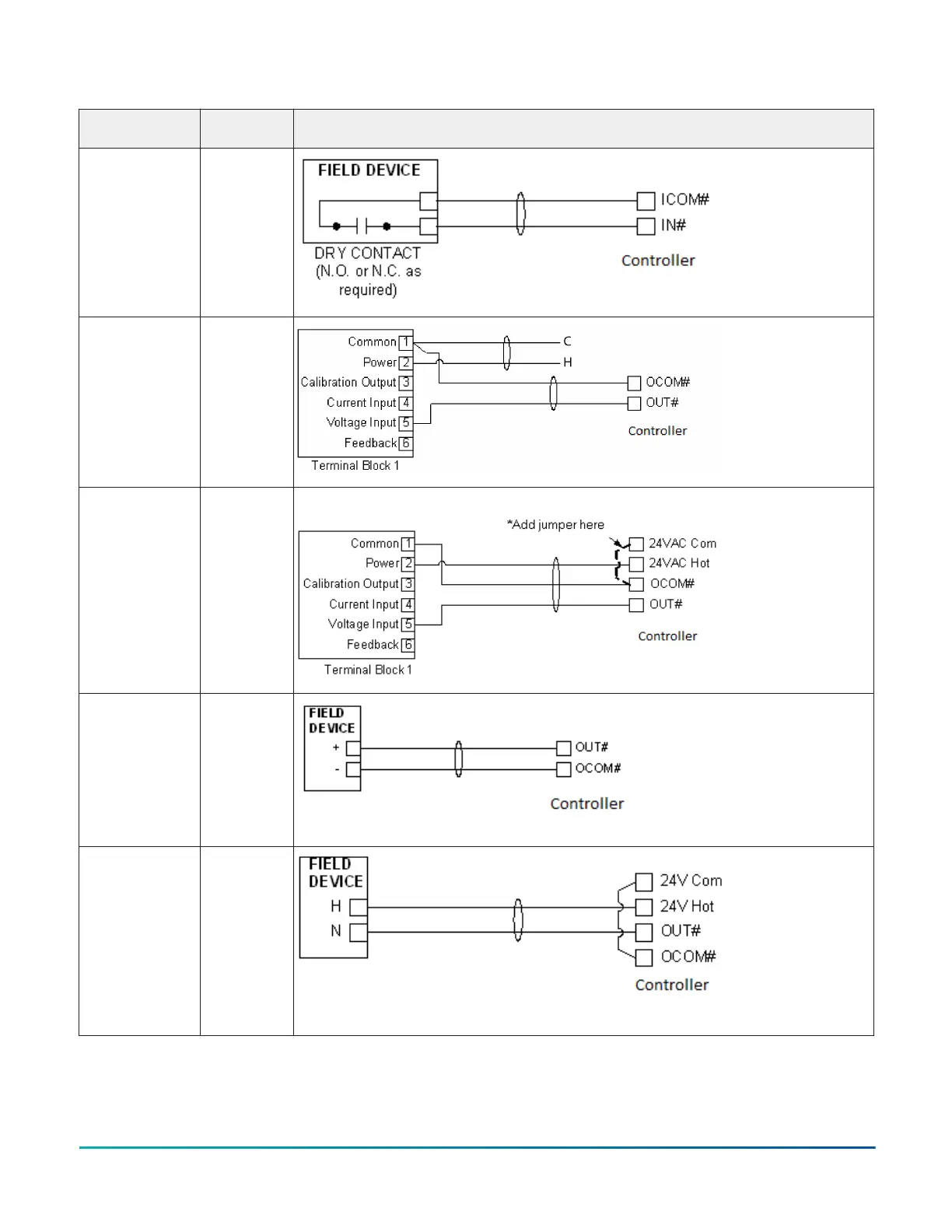

Table 6: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
Dry Contact
(Binary Input)
UI or BI
0–10 VDC Output
to Actuator
(External Source)
CO or AO
0–10 VDC Output
to Actuator
(Internal Source)
CO or AO
Current Output CO or AO
24 VAC Triac
Output (Switch
Low, External
Source)
CO or AO
FAC4911 Advanced Application Field Equipment Controller Installation Guide 13
