QUANTUM™ HD COMPRESSOR CONTROL PANEL
COMMUNICATIONS SETUP
090.040-CS (JAN 14)
Page 9
Switch.

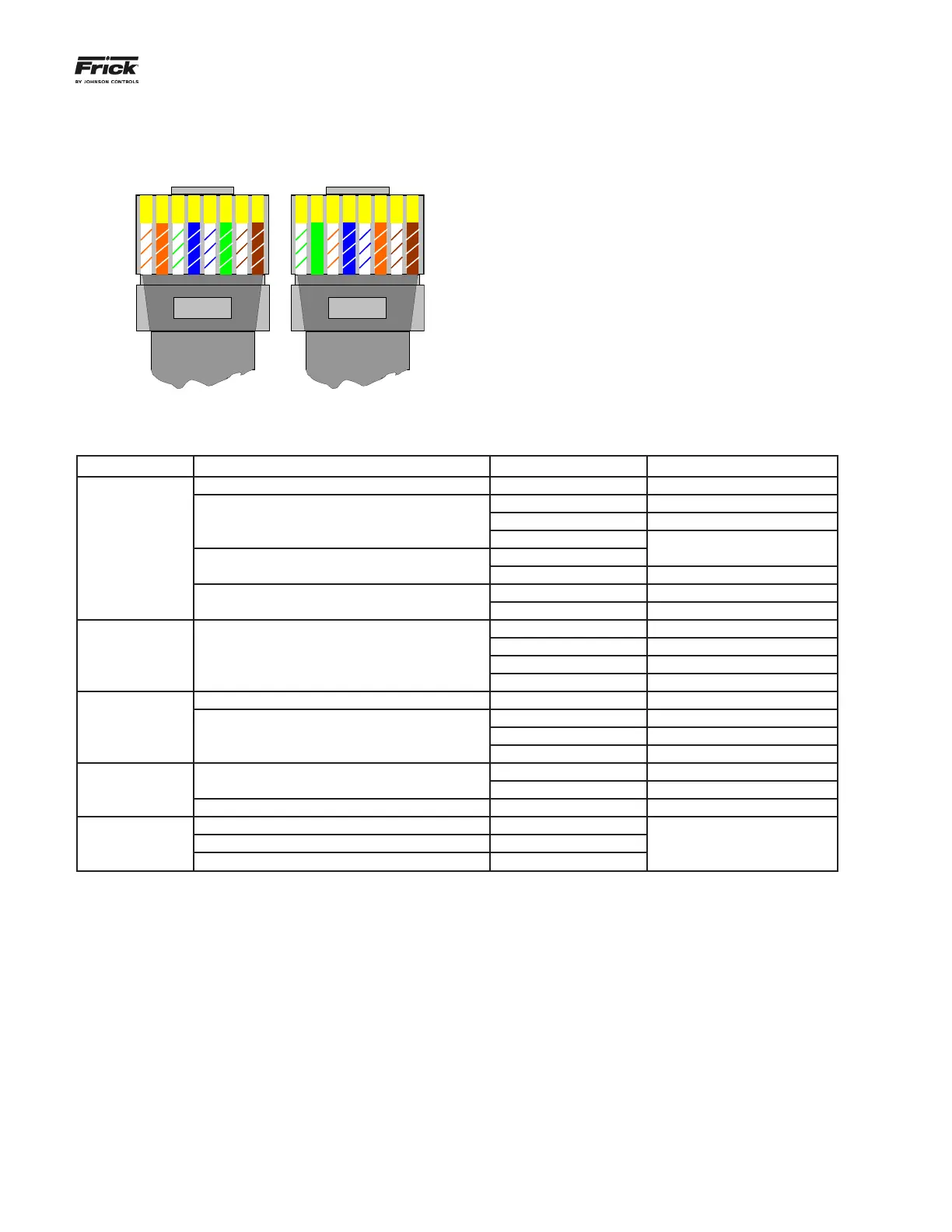

Refer to the following pictorial to construct a
crossover cable:
Both Ends of a crossover-cable
CAT-5 Ethernet cable color codes
1 – White w/orange stripe 5 – White w/blue stripe
2 – Orange w/white stripe 6 – Green w/white stripe
3 – White w/green stripe 7 – White w/brown stripe
4 – Blue w/white stripe 8 – Brown w/white stripe
Because of the large number of possible configurations
in an Ethernet network, you most likely will not have any
type of automated installation software. This means that
you will need to manually configure all the options. To
configure these options for the Quantum™ HD, please re-
fer to the next page in this manual entitled Communica-
tions - Ethernet.
ETHERNET COMPONENT RECOMMENDATIONS
Component Description Part Number Manufacturer
Cable
Shielded solid 4-pair* (1000 Ft) BOXCAT5E-DSSO Cablesforless.com
Shielded solid 4-pair*
E-PLG-SOLID-SH VPI
CR45-100S Cables Direct
9504 CS
Alpha Wire Co.
Un-shielded solid 4-pair**
9504 F
E-PLG-SOLID VPI
Un-shielded solid 4-pair** (1000 Ft)
345U5-1000BLK Ram Electronics
0-5EPCS-BK Computercablestore.com
Crimp Tool RJ-45 Crimp tool
HT-210C Cablesforless.com
P-15027 Stonewall Cable, Inc.
S2307692 Computers4sure.com
10-RJ1145 Computercablestore.com
Connectors
RJ-45 For Shielded 4-pair solid wire cable P-15007 Stonewall Cable, Inc.
RJ-45 For Un-shielded 4-pair solid wire cable
5-554169-3 Tyco Electronics
1-5E45-010 Computercablestore.com
P-15029 Stonewall Cable, Inc.
Cable Tester
Ethernet Cable Tester – Continuity only
TST-5150 Cablesforless.com
TS075A-R2 Black Box
Complete Cable I/O Qualification Tester N/A Fluke
Switches
5 RJ-45 port SFN-5TX
Phoenix7 RJ-45 Port and 1 ST Fiber Optic Port SFN-7TX/FX ST
8 RJ-45 port SFN-8TX
* STP = Shielded Twisted Pair
