Johnson Controls FX-PCG1611 Series User Manual

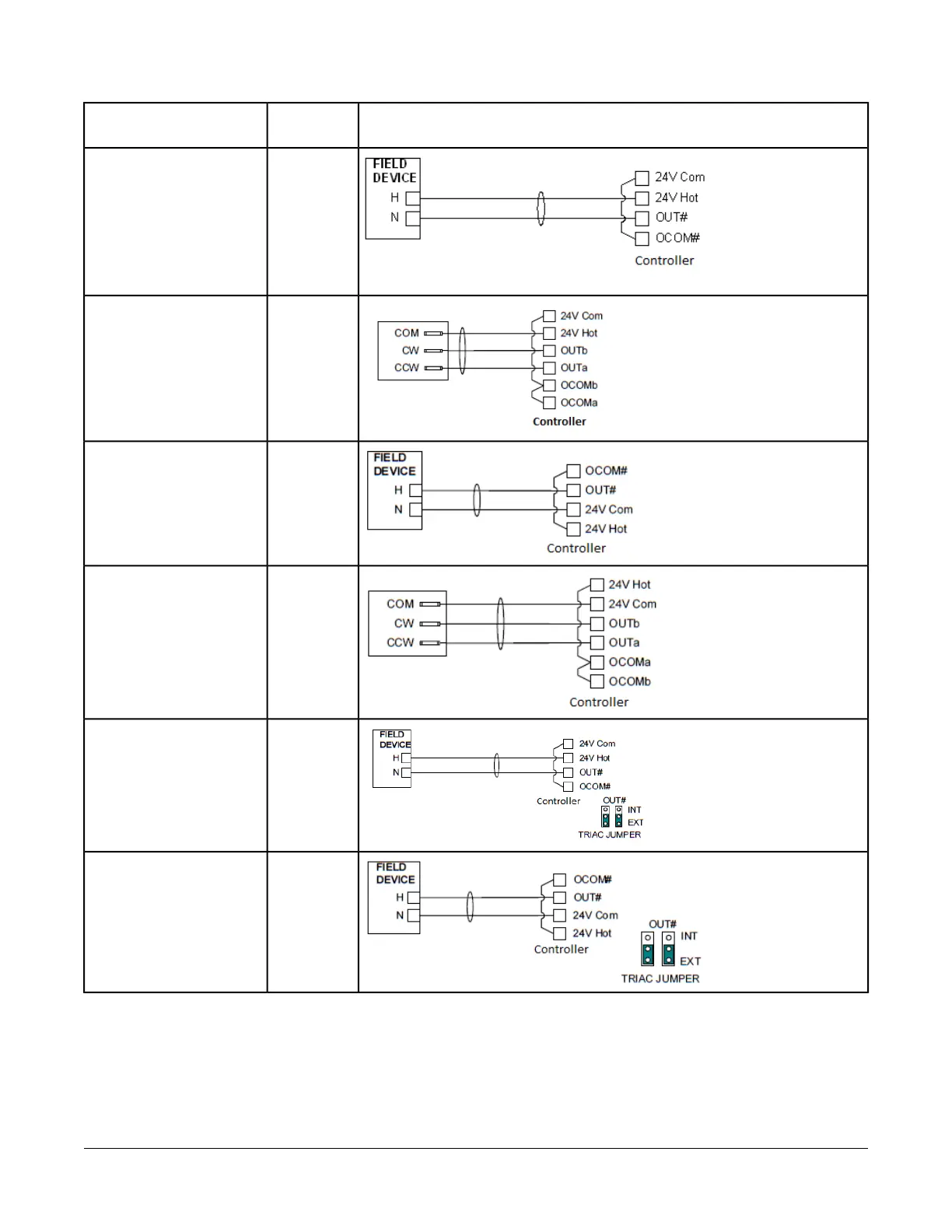

Table 2: Termination Details
Termination DiagramsType of
Input/Output
Type of Field Device
CO24 VAC Triac Output
(Switch Low, External
Source)
COIncremental Control to
Actuator (Switch Low,
Externally Sourced)
CO
COIncremental Control to
Actuator (Switch High,
Externally Sourced)
BO24 VAC Binary Output
(Switch Low, Externally
Sourced)
BO24 VAC Binary Output
(Switch High, Externally
Sourced)
10FX-PCG16 General Purpose Programmable Controller Installation Instructions
