Johnson Controls FX-PCG1611 Series User Manual

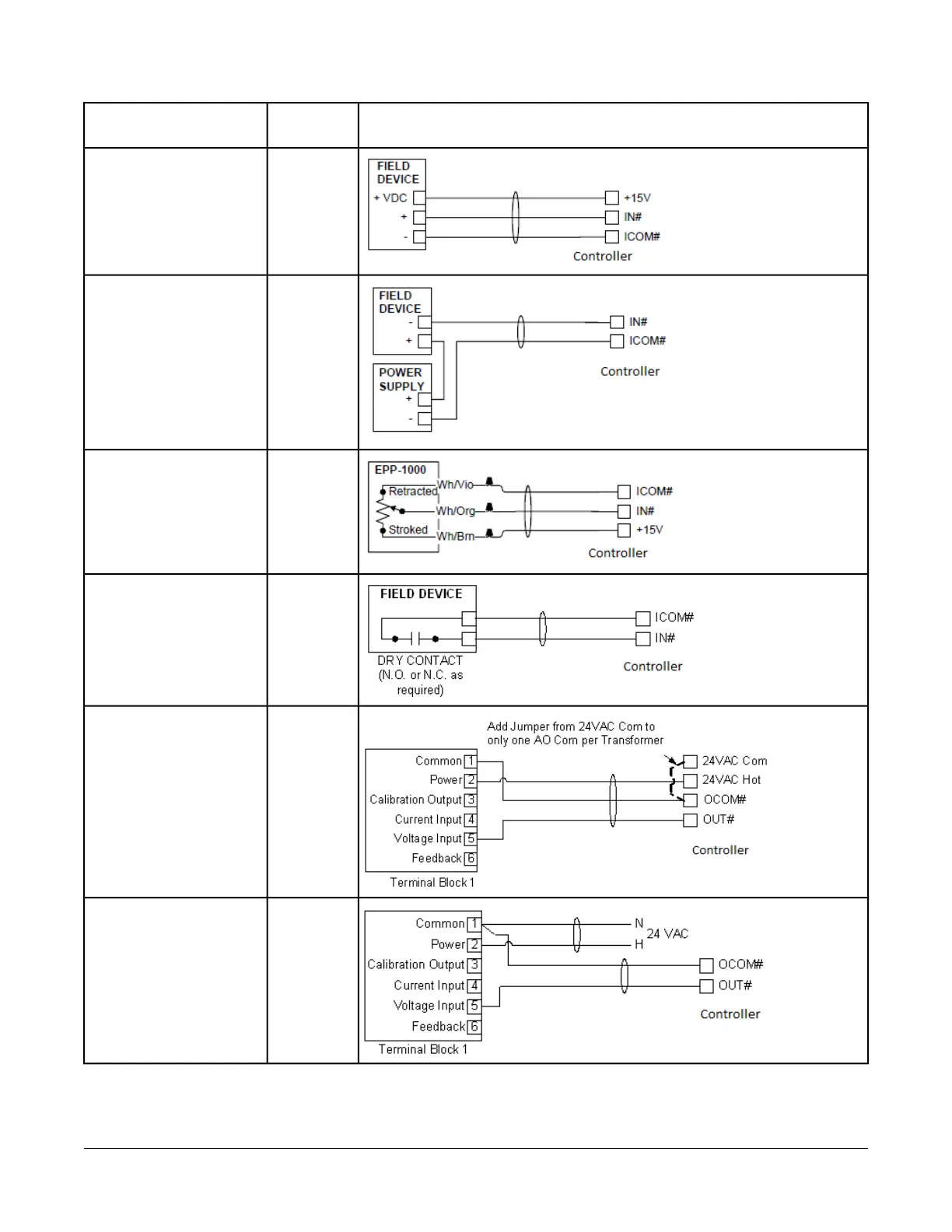

Table 2: Termination Details
Termination DiagramsType of
Input/Output
Type of Field Device
UICurrent Input - Internal
Source (3 wire)
UICurrent Input - External
Source (in Loop)
UIFeedback from EPP-1000
UI or BIDry Contact (Binary Input)
CO0–20 VDC Output to
Actuator (External Source)
CO0–10 VDC Output to
Actuator (Internal Source)
9FX-PCG16 General Purpose Programmable Controller Installation Instructions

Johnson Controls FX-PCG1611 Series Specifications

General

Brand	Johnson Controls
Model	FX-PCG1611 Series
Category	Controller
Language	English
