Johnson Controls FX-PCG1611 Series User Manual

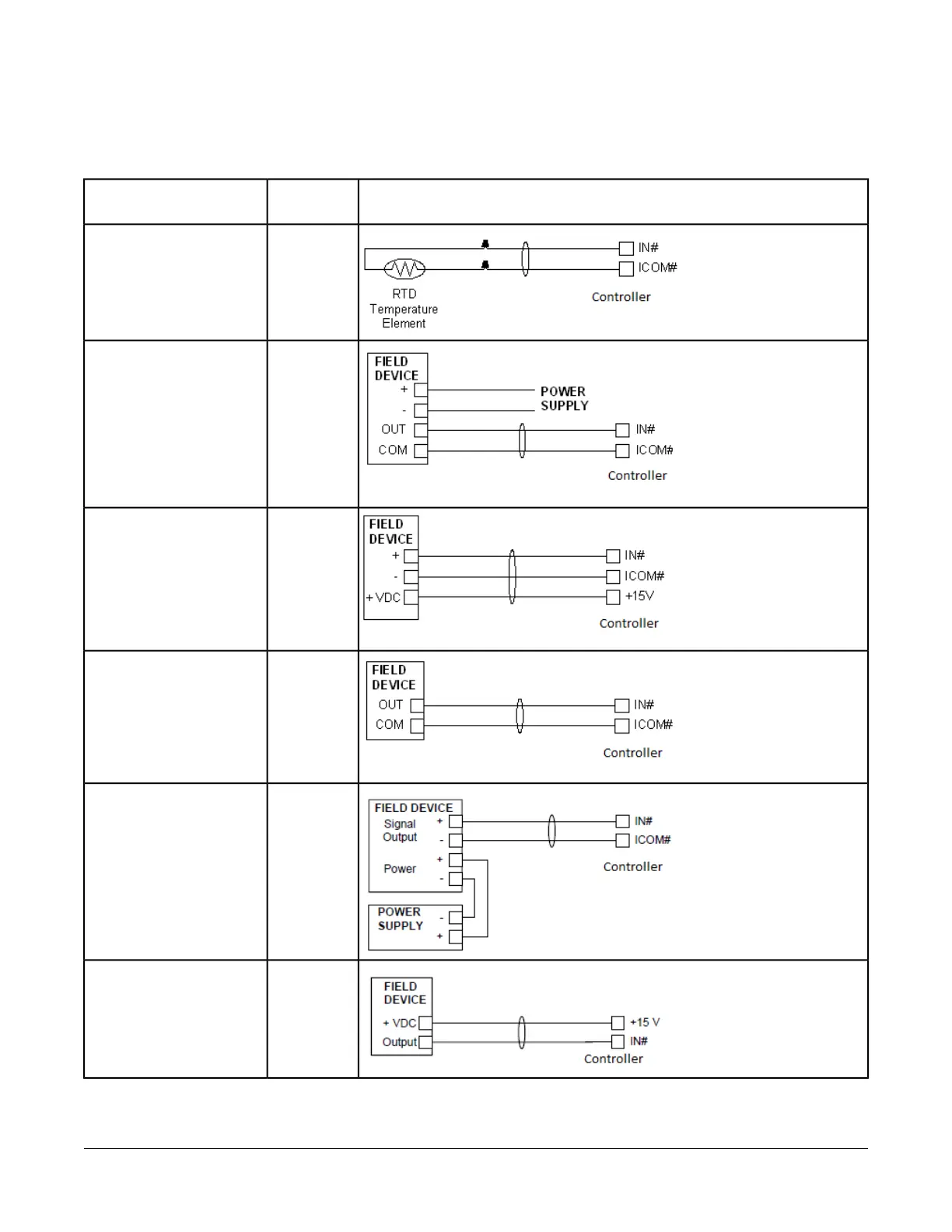

Termination Diagrams
A set of termination diagrams provides details for wiring inputs and outputs to the controllers. See the figures in this
section for the applicable termination diagrams.
Table 2: Termination Details
Termination DiagramsType of
Input/Output
Type of Field Device
UITemperature Sensor
UIVoltage Input - External
Source
UIVoltage Input - Internal
Source
UIVoltage Input
(Self-Powered)
UICurrent Input - External
Source (Isolated)
UICurrent Input - Internal
Source (2 wire)
8FX-PCG16 General Purpose Programmable Controller Installation Instructions
