Johnson Controls FX-PCG1611 Series - Page 4

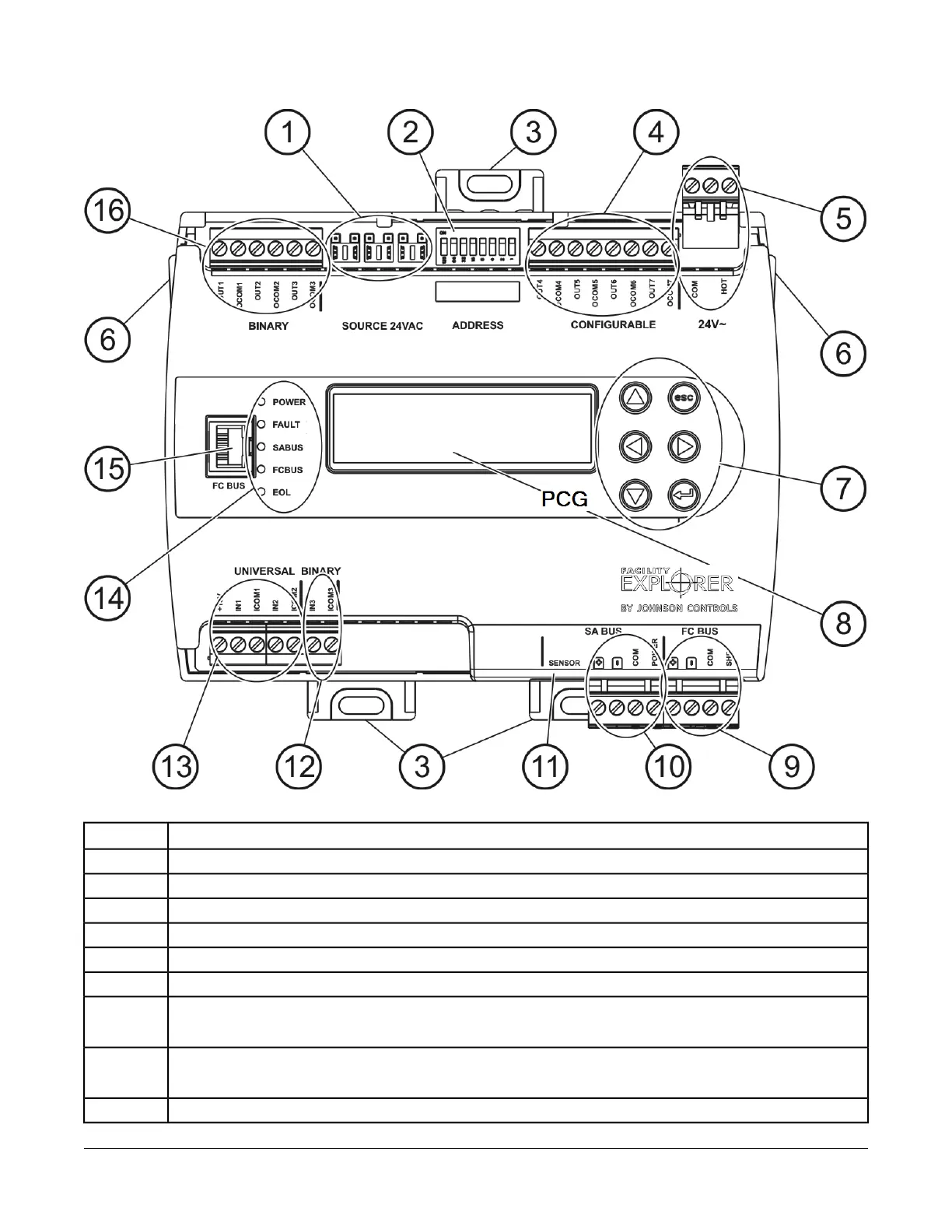

Figure 3: FX-PCG16 Physical Features
Table 1: FX-PCG Physical Features Callouts and Descriptions
Physical Feature: Description and ReferencesCallout
Binary Output (BO) Source Power Selection Jumpers (See Binary Output (BO) Source Power Selection Jumpers)
1
Device Address DIP Switch Block (See Figure 9)
2
Mounting Clip3
Configurable Output (CO) Terminal Blocks (See Table 3)
4
24 VAC, Class 2 Supply Power Terminal Block (See Supply Power Terminal Block)
5
Cover Lift Tab (One of Two) (See Figure 3)
6
Display Navigation Buttons (See Setting Up an Integral or Local Display)
Note: Not available on all FX-PCG models.
7
LCD Display Area (See Setting Up an Integral or Local Display)
Note: Not available on all FX-PCG models.
8
FC Bus Terminal Block (See FC Bus Terminal Block)
9
4FX-PCG16 General Purpose Programmable Controller Installation Instructions
