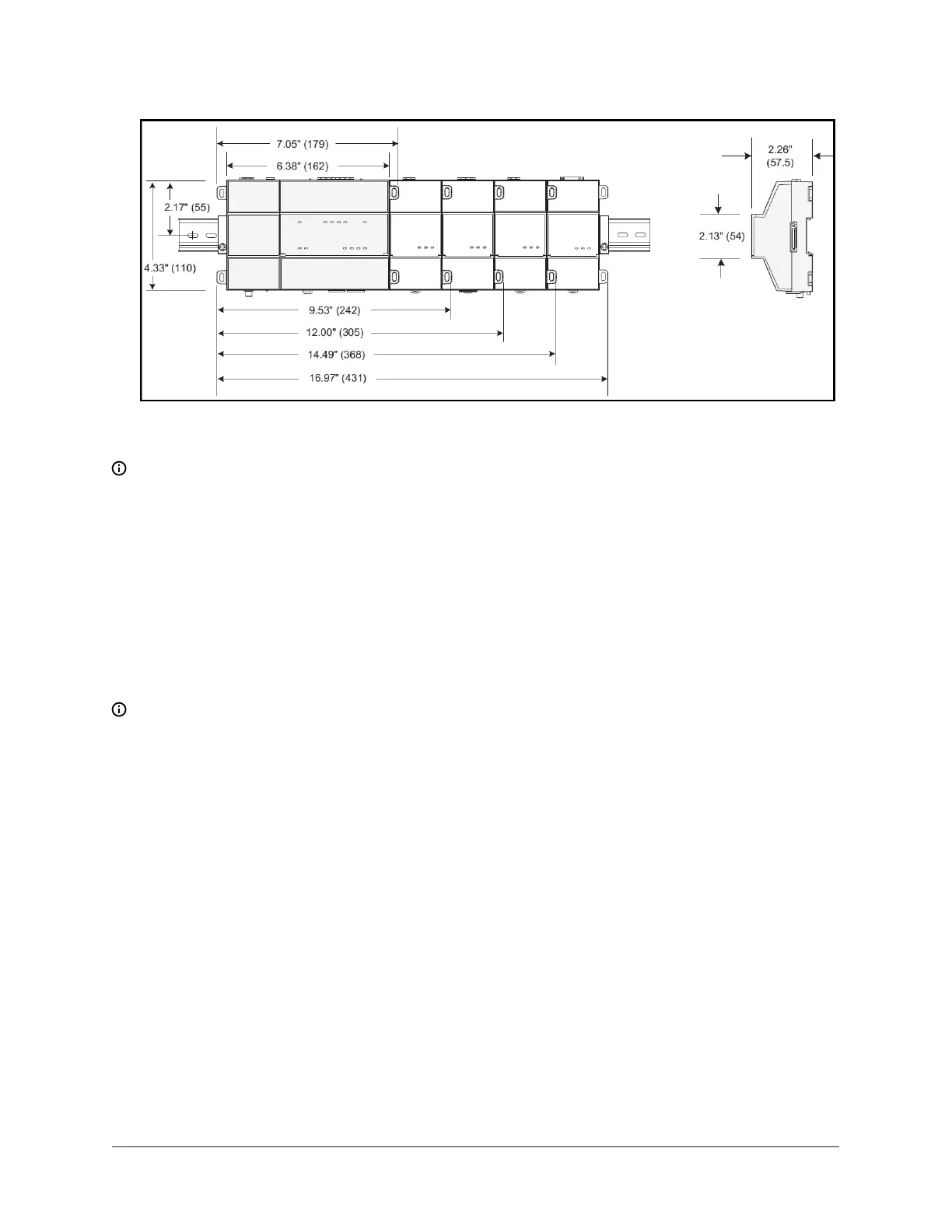

Figure 2: Mounting dimensions of Controller and option modules
Environmental requirements
Note: This product is for indoor use only (altitude to 2,000 m [6,562 ft]).
Ambient conditions must be within the range of:
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing. Pollution Degree 3
• Supply (mains) voltage requirements are as follows:
- Allowable voltage fluctuation to -15%, +10%
- Temporary overvoltages +/- 15%
Note: Horizontal mounting is strongly recommended to achieve maximum heat dissipation
and meet the operating temperature upper limit. Any other mounting orientation reduces this
upper limit.
Mounting on the DIN rail
1. Pull the controller’s locking clip down.
FX80 Supervisory Controller Installation Instructions4
