30
Hardware Installation—Installing the IFC-1010/2020

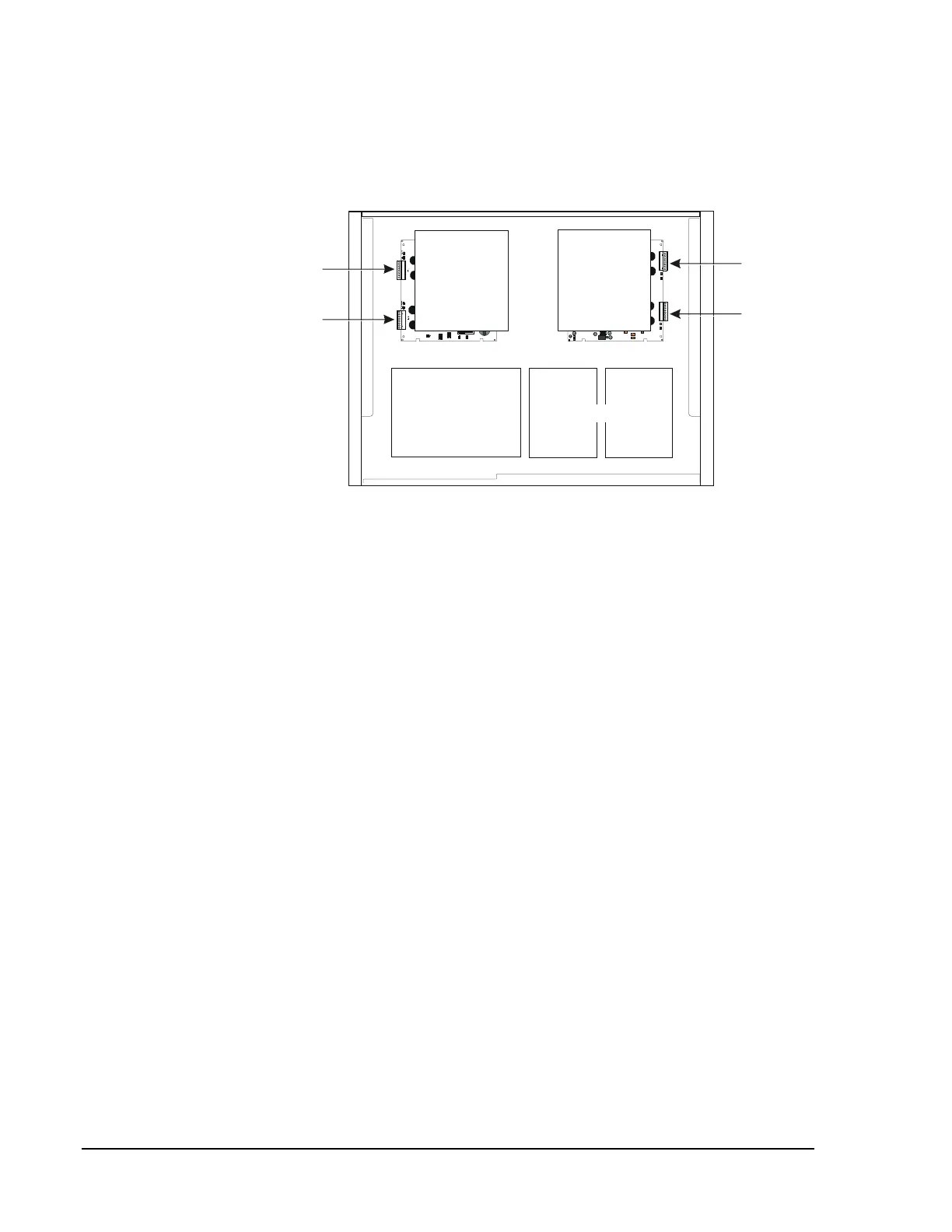

Figure 22 depicts a CAB-A3 cabinet used with LIB-400 modules
exclusively, which means it may house a maximum four loop IFC-1010
system. An ICA-4L or ICA-4 chassis (neither of which is shown in the
figure) is required for mounting the LIB-400.
lib4plc
Loop 1
Loop 3
SIB
CPU
Loop 4
Loop 2
Batteries
MPS-24A
or
MPS-24AE
Figure 22: LIB-400 Placement in an IFC-1010
N34
