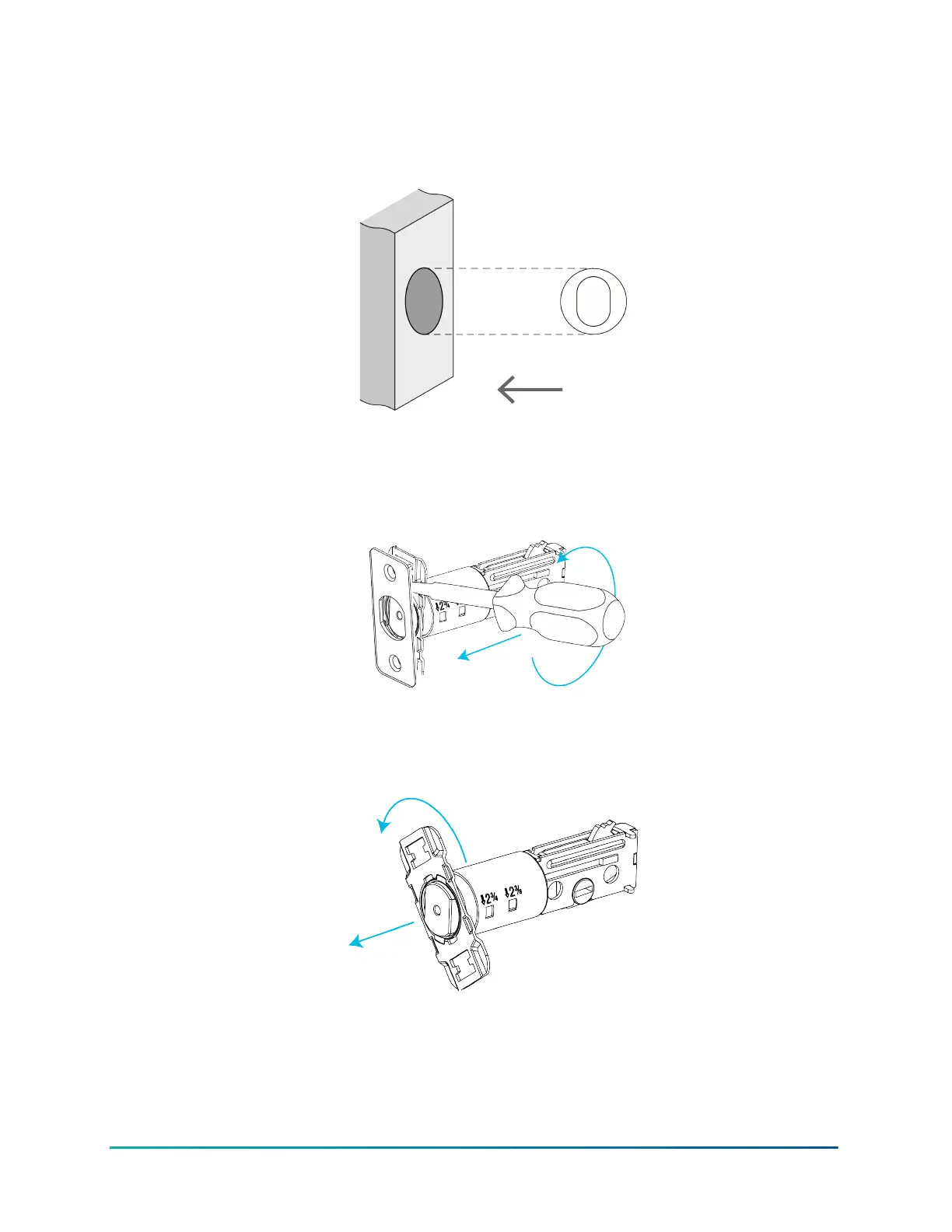

Attaching the round drive-in collar

1. Check the door latch hole to see if a round faceplate is required.

Figure 6: Round faceplate

2. If a round drive-in collar is required, remove the rectangular faceplate from the latch with a

flat head screwdriver wedged between the faceplate and the faceplate clip.

Figure 7: Removing the rectangular faceplate

3. Remove the rectangular faceplate. Rotate it counterclockwise and pull.

Figure 8: Rotated rectangular faceplate

IQ Lock-PowerG Installation and User Guide D-30924012
