Johnson Controls J ZB Series User Manual

5808011-JIM-A-0320
Johnson Controls Ducted Systems 13

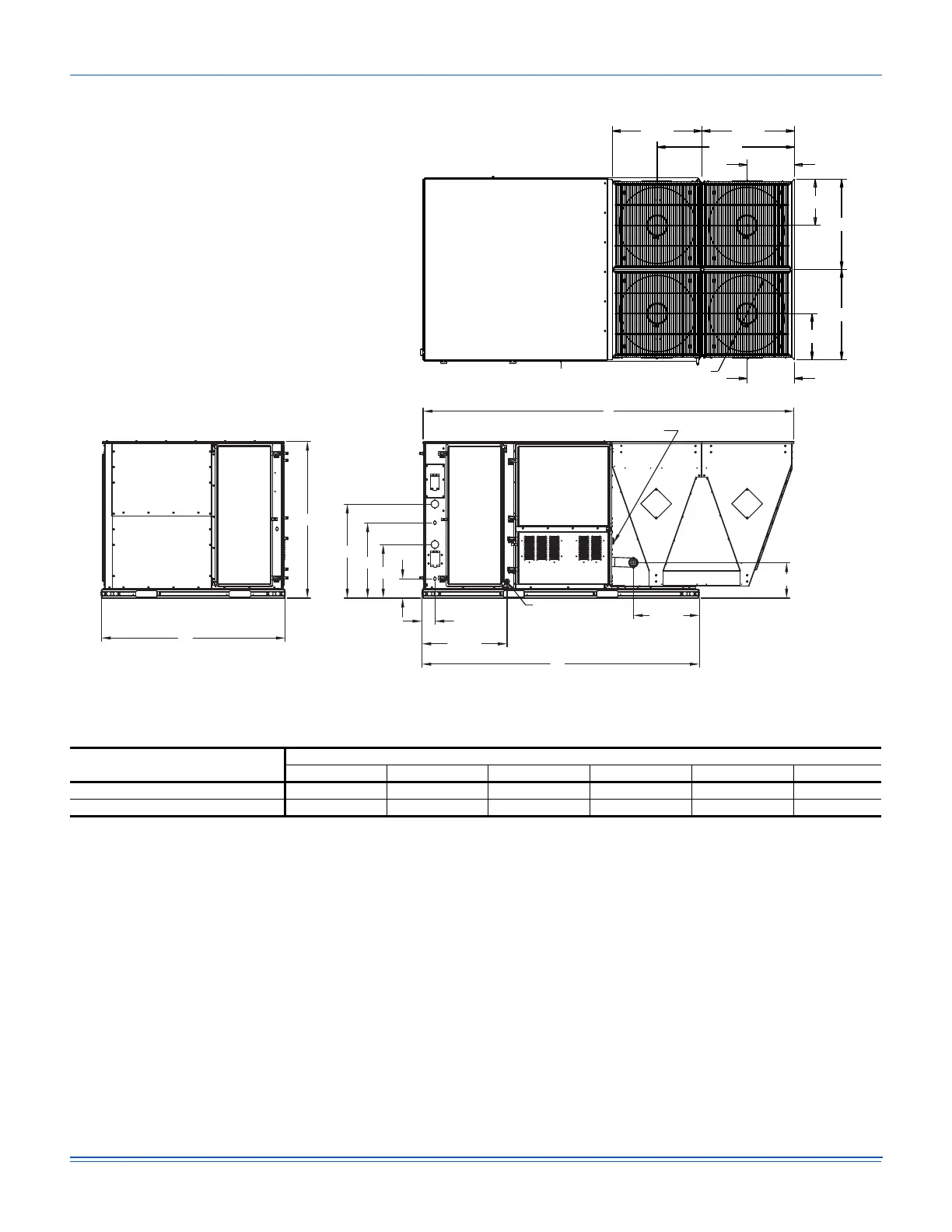

Figure 9: J12ZB physical dimensions
Table 5: J06-12ZB unit physical dimensions
Unit model number
Dimension (in.)
ABCDEF
J06, 07, 08, 10ZB 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
J12ZB 50 3/4 119 1/2 30 3/16 24 3/16 17 3/16 6 3/16
15.23
29.03
14.85
29.03
14.85
15.23
28.86 29.66
44.09
Ø 24.58 TYP. 4 PL.
FRONT
See detail B for drain location
See detail A for gas inlet
C
D
E
F
B
4 3/16
27 5/16
89
21 3/16
11 3/8
A
LEFT
59
