Johnson Controls J ZB Series User Manual

5808011-JIM-A-0320
16 Johnson Controls Ducted Systems

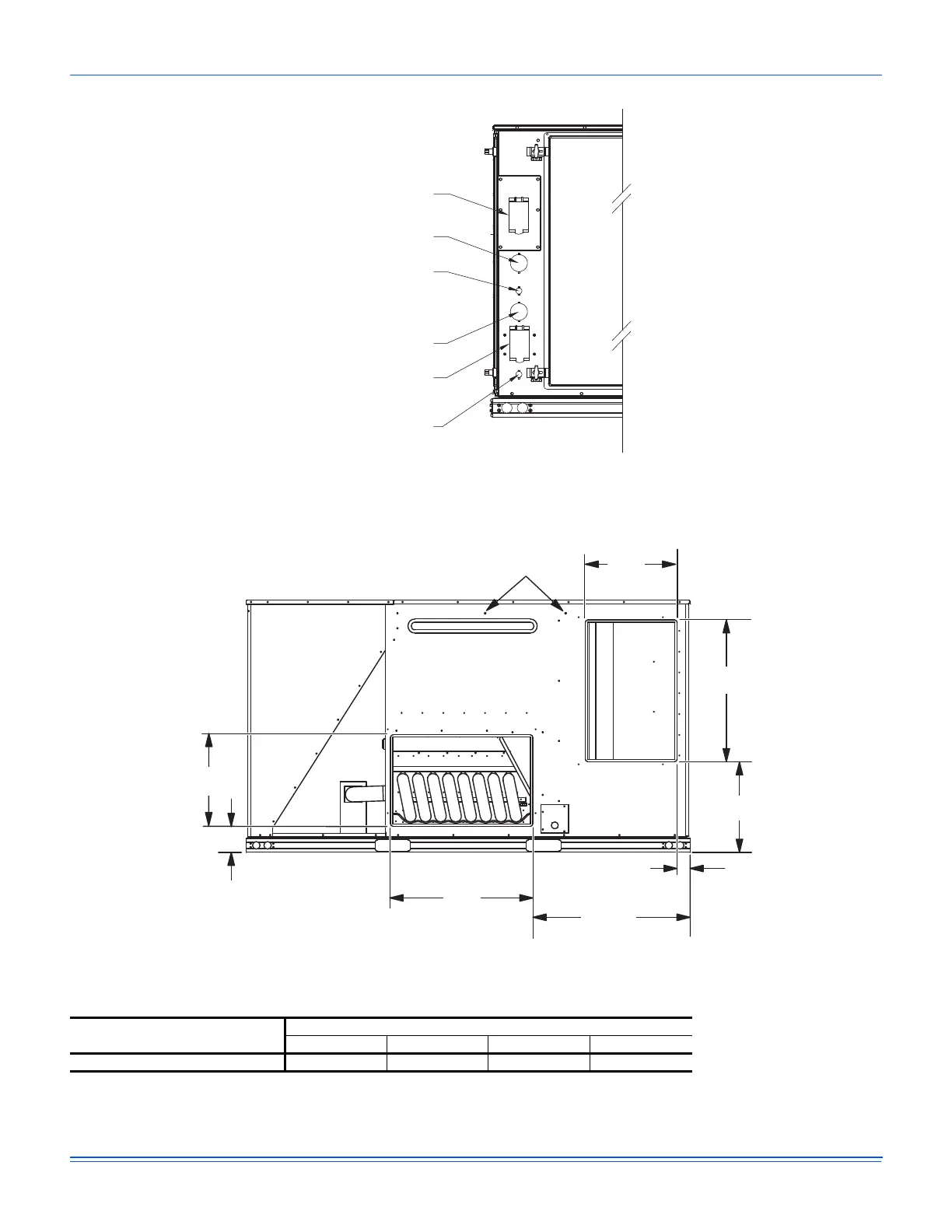

Figure 11: J06-12ZB unit electrical entry
J06-10ZB unit side duct openings
Disconnect Swith Cover
Power Entry Ø 2-1/2
Control Entry Ø 7/8
Power Entry Ø 2-1/2
Convenience Outlet Cover
Convenience Outlet
Power Entry Ø 7/8
FRONT
Table 7: J06-10ZB side duct dimensions
Unit model number
Dimension (in.)
ABCD
J06, 07, 08, 10ZB 28 1/4 18 1/16 28 1/4 18 1/4
D o t P l u g s
5 - 5 /3 2
3 1 - 1 1 /1 6
2 - 3 1 /3 2
1 8 - 1 /4
Return
Air
Supply Air
A
B
C
D
