Johnson Controls J ZB Series User Manual

5808011-JIM-A-0320
Johnson Controls Ducted Systems 17

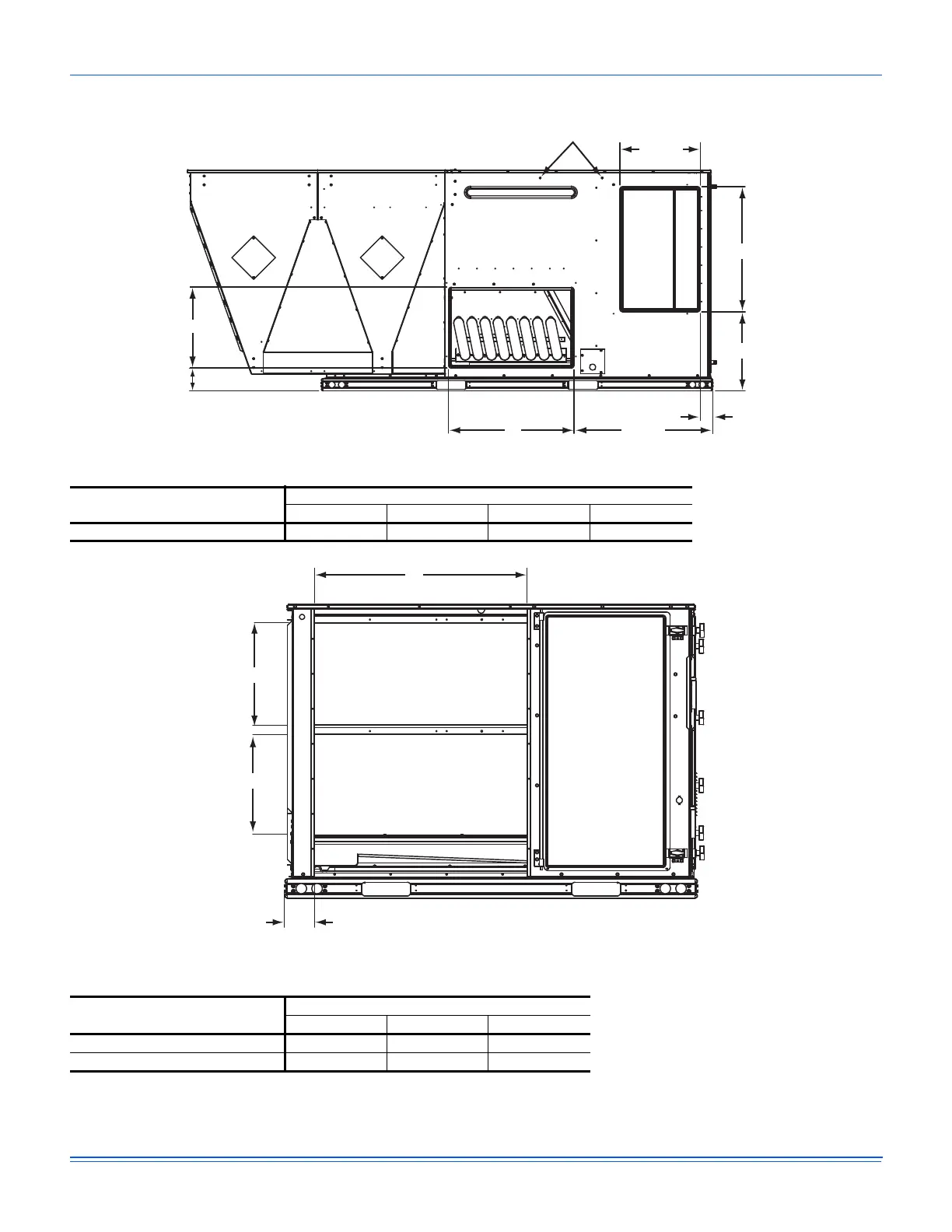

J10-12ZB unit side duct openings
Figure 12: J06-12ZB unit left/end duct opening
Table 8: J12ZB side duct dimensions
Unit model number
Dimension (in.)
ABCD
J12ZB 28 1/4 18 1/16 28 1/4 18 1/4
Table 9: Left/end duct dimensions
Unit model number
Dimension (in.)
ABC
J06, 07, 08, 10ZB 30.358 22.580 22.330
J12ZB 30.358 22.580 22.330
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
4-5/16
A
C
B
