Johnson Controls J ZB Series User Manual

5808011-JIM-A-0320
Johnson Controls Ducted Systems 51
Airflow performance

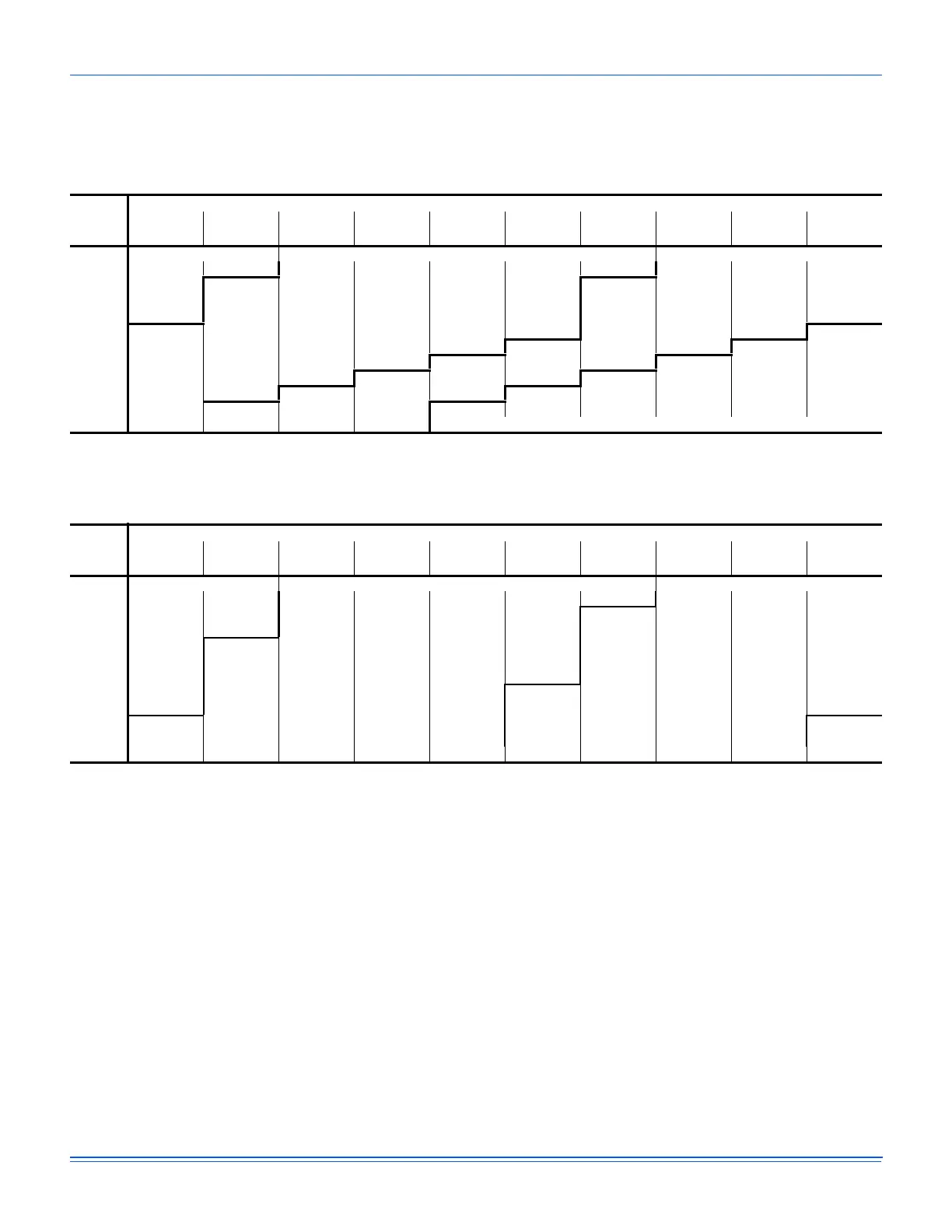

Table 18: Airflow performance - side duct application
J06ZB (6.5 ton) side duct
Air flow
(CFM)
Available external static pressure - IWG
1
1. Blower performance includes gas heat exchangers and 2-in. filters. See the static resistance table for additional applications.
2. See the RPM selection table to determine the required motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field supplied drive Standard 1.5 HP and drive High static 3 HP and drive
2000 620 0.28 680 0.51 737 0.71 791 0.90 844 1.07 897 1.23 952 1.39 1010 1.56 1073 1.74 1142 1.94
2200 626 0.38 686 0.60 743 0.81 797 0.99 850 1.16 903 1.32 958 1.49 1016 1.65 1079 1.83 1148 2.03
2400 632 0.49 693 0.71 750 0.92 804 1.10 856 1.27 910 1.43 964 1.59 1023 1.76 1085 1.94 1154 2.14
2600 640 0.61 701 0.84 758 1.04 812 1.22 864 1.39 917 1.56 972 1.72 1030 1.89 1093 2.07 1162 2.27
2800 650 0.75 711 0.98 767 1.18 821 1.36 874 1.53 927 1.70 982 1.86 1040 2.03 1103 2.21 1172 2.40
3000 662 0.90 723 1.13 779 1.33 833 1.51 886 1.68 939 1.85 994 2.01 1052 2.18 1115 2.36 1184 2.56
3200 677 1.07 737 1.29 794 1.50 848 1.68 901 1.85 954 2.01 1009 2.18 1067 2.34 1130 2.52 1199 2.72
3400 694 1.24 754 1.47 811 1.67 865 1.86 918 2.03 971 2.19 1026 2.35 1084 2.52 1147 2.70 1216 2.90
3600 713 1.43 774 1.66 831 1.86 885 2.05 937 2.22 991 2.38 1045 2.54 1104 2.71 1166 2.89 1235 3.09
3800 736 1.63 796 1.86 853 2.06 907 2.24 960 2.41 1013 2.58 1068 2.74 1126 2.91 1189 3.09 1258 3.29
3 HP & Field Supplied Drive
J07ZB (7.5 Ton) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 2” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
FS
4
Standard 1.5 HP & Drive Hi Static 3 HP & Drive
2000 - - 656 0.24 711 0.48 768 0.73 826 0.96 886 1.19 945 1.41 1003 1.61 1058 1.7911101.95
2200 619 0.07 670 0.32 724 0.57 781 0.81 840 1.04 899 1.27 959 1.49 1016 1.69 1072 1.87 1124 2.04
2400 631 0.16 682 0.41 736 0.66 793 0.90 852 1.14 911 1.36 970 1.58 1028 1.78 1084 1.97 1136 2.13
2600 642 0.27 692 0.52 747 0.76 804 1.01 862 1.24 922 1.47 981 1.69 1039 1.89 1094 2.07 1146 2.24
2800 652 0.39 703 0.64 757 0.88 814 1.13 873 1.36 932 1.59 992 1.81 1049 2.01 1105 2.19 1157 2.36
3000 663 0.53 714 0.77 768 1.02 825 1.26 884 1.50 943 1.73 1003 1.94 1060 2.14 11162.3311682.49
3200 675 0.68 726 0.92 780 1.17 837 1.41 896 1.65 955 1.88 1014 2.09 1072 2.29 11282.4811802.64
3400 688 0.84 739 1.09 793 1.34 850 1.58 909 1.82 968 2.04 1027 2.26 1085 2.46 11412.6511932.81
3600 703 1.03 753 1.28 807 1.52 864 1.76 923 2.00 983 2.23 1042 2.44 1100 2.64 1155 2.83 - -
3800 718 1.23 769 1.47 823 1.72 880 1.96 939 2.20 998 2.43 1058 2.64 1115 2.84 1171 3.03 - -
