Johnson Controls M4-CG Series User Manual

Table 6: Termination details
Type of field
device
Type of Input/
Output

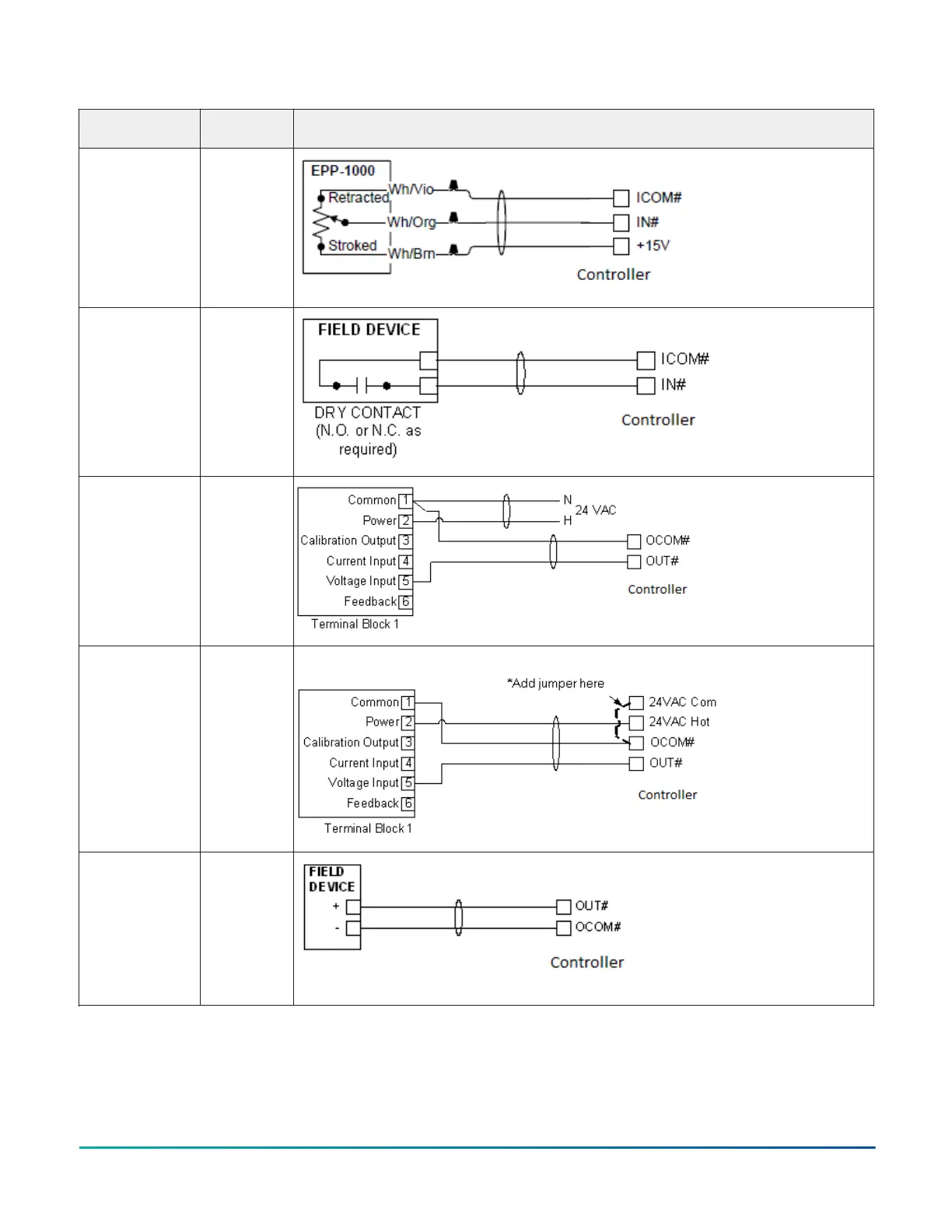

Termination diagrams
Feedback from
EPP-1000
UI
Dry Contact
(Binary Input)
UI or BI
0–10 VDC Output
to Actuator
(External Source)
AO
0–10 VDC Output
to Actuator
(Internal Source)
AO
Current Output AO
M4-CG Series General Purpose Application Controller Installation Guide 13
