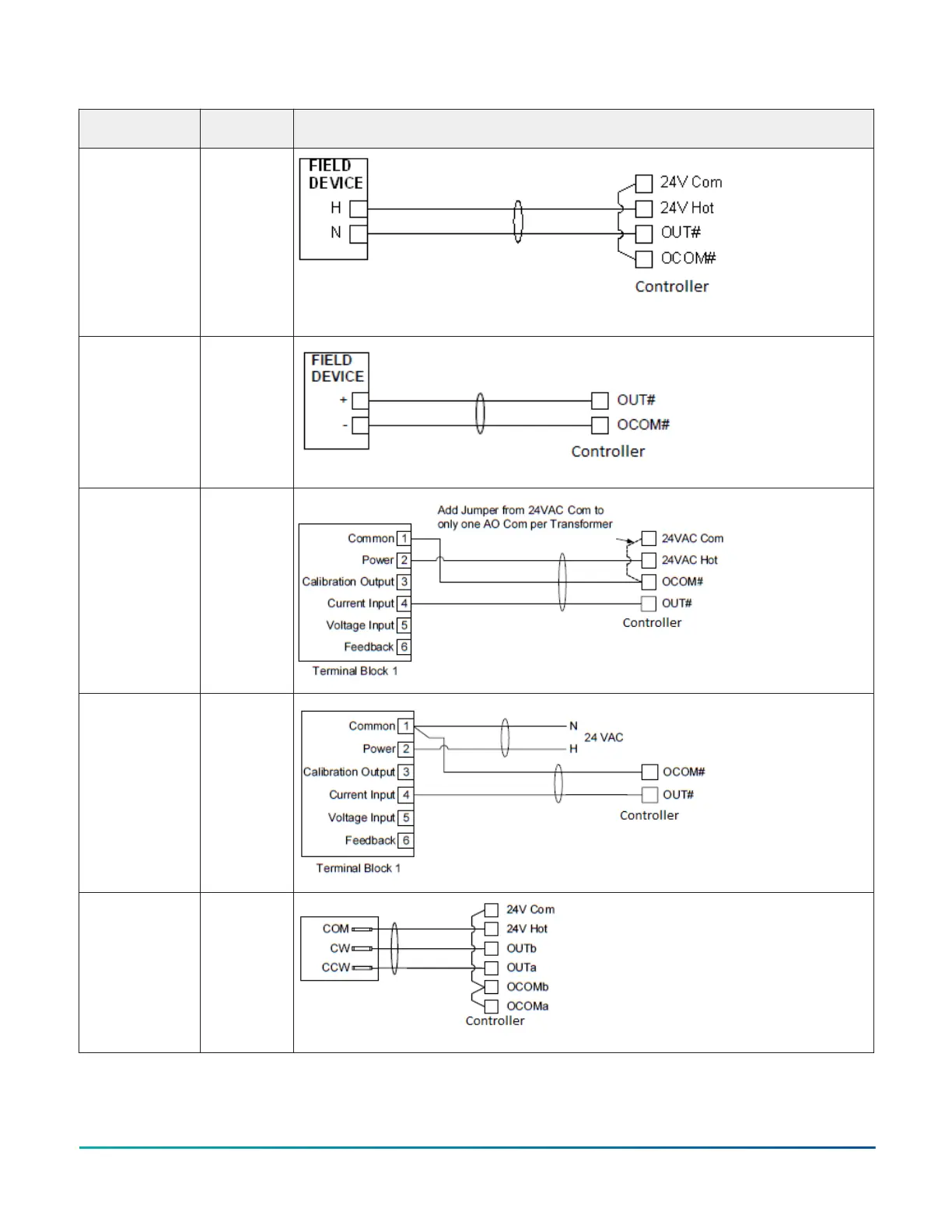

Table 6: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
24 VAC Triac
Output (Switch
Low, External
Source)
AO
Analog Output
(Current)
AO
4–20 mA Output to
Actuator
AO
4–20 mA Output to
Actuator
AO
Incremental
Control to
Actuator (Switch
Low, Externally
Sourced)
BO
M4-CG Series General Purpose Application Controller Installation Guide14
