Johnson Controls S1-TTSCC01 Installation Manual

542933-UIM-D-0513
Johnson Controls Unitary Products 11
Indoor Control Wiring
A communicating furnace or air handler (denoted by a “-C” in the model number) will arrive with a
control outfitted for communication. The communicating indoor controls will have two communicat-
ing terminals. One will be a communicating plug input and the other will be a screw terminal (as
shown below in Figure 10).

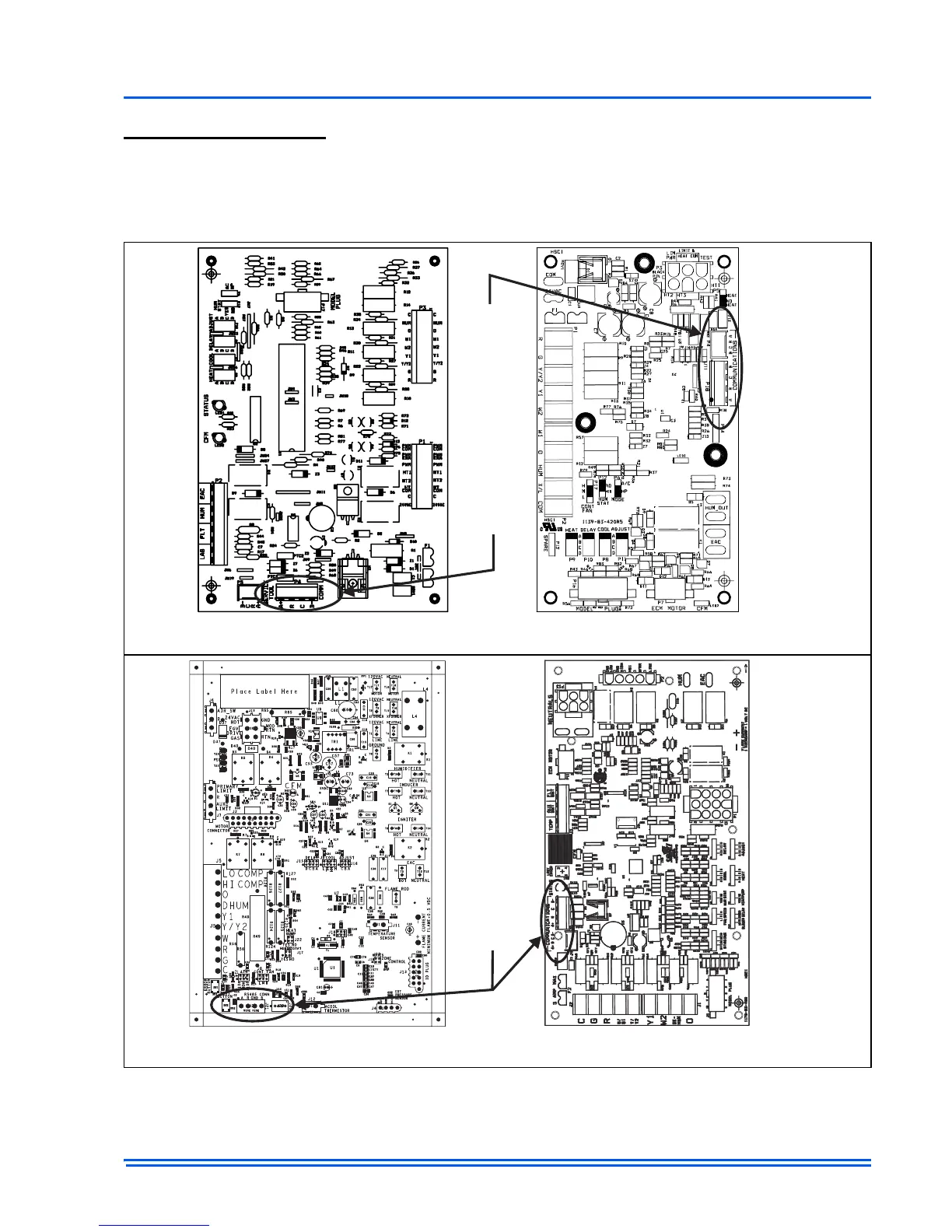

FIGURE 10:
Communicating Indoor Controls
COMMUNICATING
AIR HANDLER (AV/MV) CONTROL
COMMUNICATING TERMINALS
COMMUNICATING
AIR HANDLER (AHV) CONTROL
COMMUNICATING
MODULATING FURNACE CONTROL
COMMUNICATING TERMINALS
COMMUNICATING 2-STAGE
VARIABLE SPEED ECM FURNACE CONTROL
