Viewing Details of a Log Entry
Viewing/Filtering Displayed Log Content
All: Will display the full list of entries available on the system.
Faults: Will display all faults that have occurred on the communicating system.
Events: Will display all maintenance reminders and alerts that are not categorized as a fault.
Custom: Will display custom entries that have been manually input.
TSTAT: Will display all faults, alerts, and events that pertain to the Touch Screen Communicating
Control.
Inside: Will display all faults, alerts, and events that pertain to the indoor communicating equipment.
Outside: Will display all faults, alerts, and events that pertain to the outdoor communicating equip-
ment.
Exporting Log File

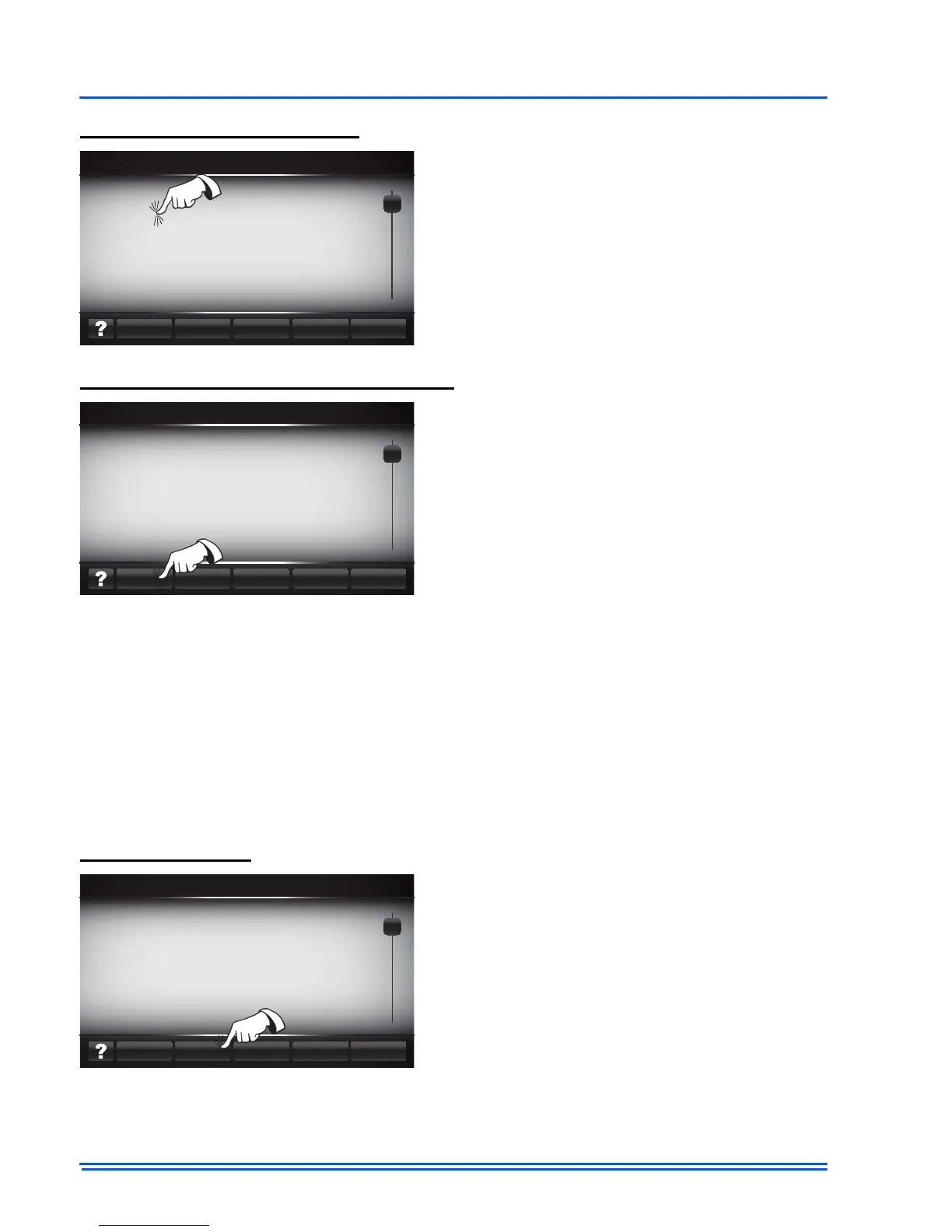

Pressing an entry displayed on the “Log” screen
will prompt a screen that contains a more
detailed description of the fault, event, alert, etc.
Press the filter button to narrow down the entries
being displayed. The log entries displayed can
be sorted by: All, Faults, Events, Custom, TSTAT,
Inside, and Outside. See list below for more
information.
Press the Export button to export the displayed
log information. Using this function gives the user
the ability to save the log of a Touch Screen
Communicating Control for future reference.
If the export function is selected the user will be
prompted to insert a USB device. Once the
device is inserted, the Touch Screen Communi-
cating Control will export the log information.
