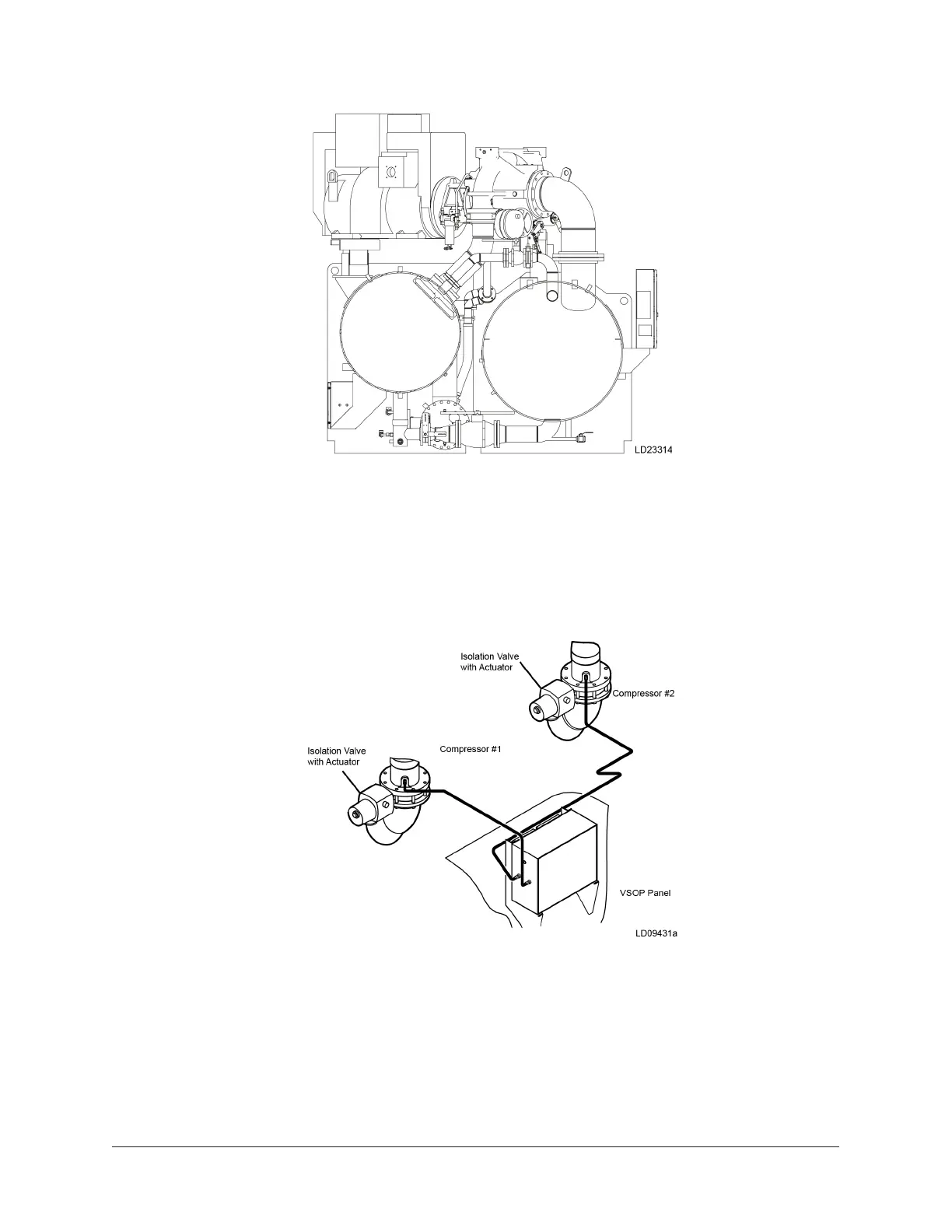

Figure 28: Liquid line reassembly
8. Tighten all hardware installed from the previous steps 2 through 8.
9. Assemble the Control Center to unit.
10. Assemble the VS Oil Pump Control Panel.
11. Install high pressure cutout tubing. See Figure 29.
Figure 29: High pressure cutout tubing
12. Install the oil cooler refrigerant piping and oil return piping. See Figure 33 and Figure 34.
47Centrifugal Liquid Chillers
