Johnson Controls ZY Series User Manual

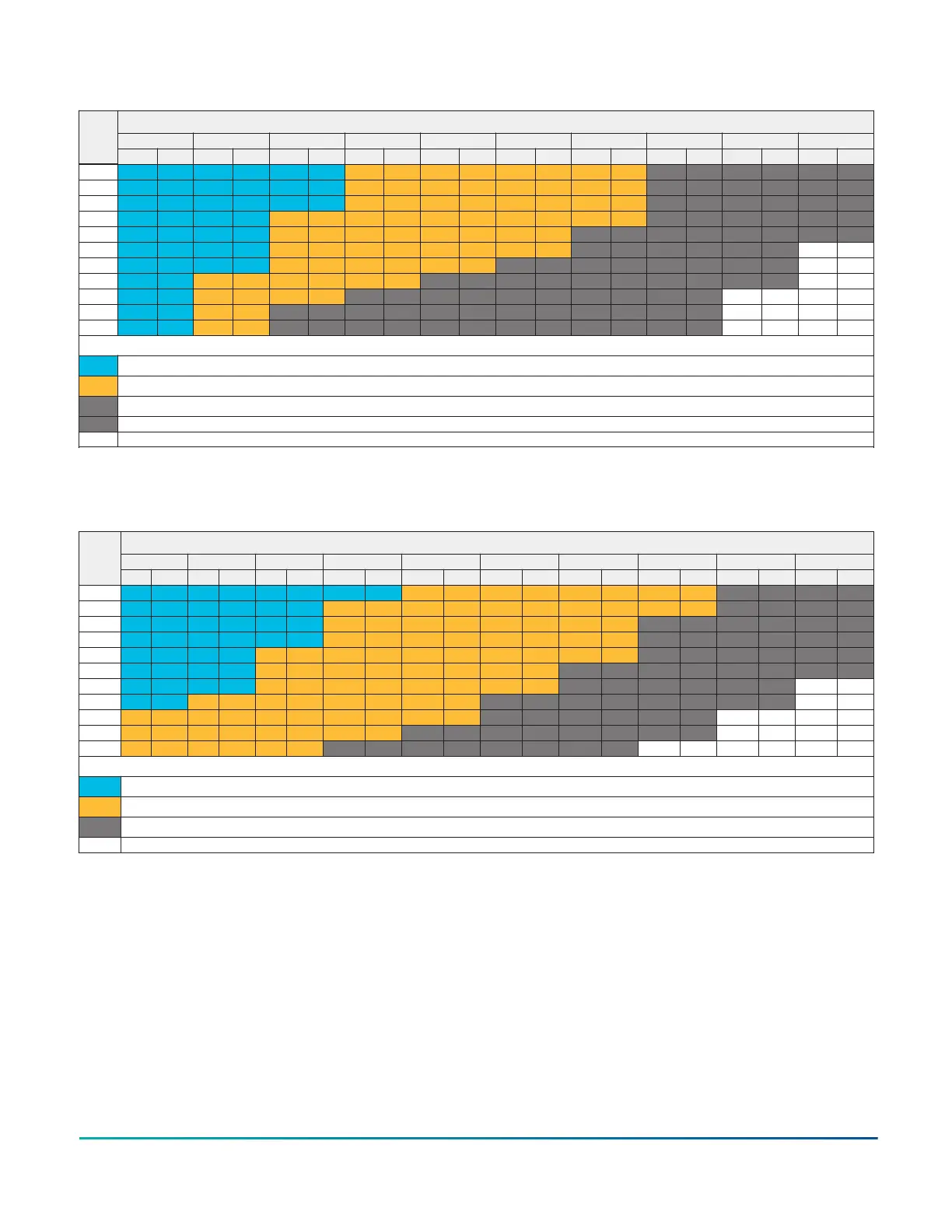

Table 38: ZY09 (8.5 Ton) Side Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2550 565 0.56 628 0.78 688 0.99 745 1.19 801 1.39 854 1.58 906 1.77 957 1.95 1007 2.13 1056 2.31
2600 568 0.60 631 0.81 691 1.02 749 1.22 804 1.42 857 1.61 909 1.80 960 1.99 1010 2.17 1059 2.34
2800 581 0.73 644 0.95 704 1.16 762 1.36 817 1.56 871 1.75 923 1.94 973 2.13 1023 2.31 1073 2.48
3000 595 0.89 658 1.10 718 1.31 776 1.51 831 1.71 885 1.91 937 2.09 988 2.28 1038 2.46 1087 2.63
3200 610 1.05 673 1.27 733 1.48 791 1.68 846 1.88 900 2.07 952 2.26 1003 2.44 1053 2.62 1100 2.80
3400 627 1.23 689 1.45 750 1.66 807 1.86 863 2.06 916 2.25 968 2.44 1019 2.62 1069 2.80 -- --
3600 644 1.42 707 1.64 767 1.85 824 2.05 880 2.25 933 2.44 985 2.63 1036 2.82 1086 3.00 -- --
3800 662 1.63 725 1.84 785 2.05 842 2.26 898 2.46 951 2.65 1003 2.84 1054 3.02 1100 3.20 -- --
4000 681 1.85 744 2.06 804 2.27 861 2.47 917 2.67 970 2.87 1022 3.05 1073 3.24 -- -- -- --
4200 701 2.08 764 2.29 824 2.50 881 2.70 937 2.90 990 3.09 1042 3.28 1093 3.47 -- -- -- --
4250 706 2.14 769 2.35 829 2.56 887 2.76 942 2.96 996 3.15 1048 3.34 1098 3.53 -- -- -- --
Standard Static Option with Motor rated at 2.4-hp>
Medium Static Option with Motor rated at 2.4-hp
High Static Option with Motor rated at 3.7-hp
Bold Field-supplied AK79 x 1 fixed pulley (p/n 9381) with Motor rated at 3.7-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
Table 39: ZY12 (10 Ton) Side Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
3000 653 0.79 706 1.02 758 1.25 808 1.49 858 1.72 907 1.95 955 2.18 1003 2.40 1049 2.62 1095 2.82
3200 667 0.94 720 1.17 771 1.40 822 1.64 872 1.88 921 2.11 969 2.34 1016 2.56 1063 2.77 1109 2.97
3400 682 1.11 734 1.34 786 1.57 837 1.81 887 2.04 936 2.28 984 2.50 1031 2.73 1078 2.94 1124 3.14
3600 697 1.29 750 1.52 802 1.76 853 1.99 903 2.23 952 2.46 1000 2.69 1047 2.91 1094 3.12 1140 3.32
3800 714 1.50 767 1.73 819 1.96 870 2.20 920 2.43 969 2.67 1017 2.90 1064 3.12 1111 3.33 1157 3.53
4000 733 1.73 786 1.96 837 2.19 888 2.43 938 2.66 987 2.90 1035 3.12 1083 3.34 1129 3.56 1174 3.76
4200 753 1.98 806 2.21 857 2.44 908 2.68 958 2.91 1007 3.15 1055 3.37 1102 3.60 1149 3.81 -- --
4400 774 2.25 827 2.48 879 2.72 930 2.95 979 3.19 1028 3.42 1076 3.65 1124 3.87 1170 4.08 -- --
4600 797 2.55 850 2.78 902 3.02 952 3.25 1002 3.49 1051 3.72 1099 3.95 1147 4.17 -- -- -- --
4800 822 2.88 874 3.11 926 3.34 977 3.58 1027 3.81 1076 4.05 1124 4.27 1171 4.50 -- -- -- --
5000 848 3.23 901 3.46 952 3.69 1003 3.93 1053 4.16 1102 4.40 1150 4.62 -- -- -- -- -- --
Standard Static Option with Motor rated at 2.4-hp>
Medium Static Option with Motor rated at 3.7-hp
High Static Option with Motor rated at 5.25-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
INSTALLATION MANUAL ZY SERIES 3-10ton 60 Hertz R-410A 89
