Johnson Controls ZY Series User Manual

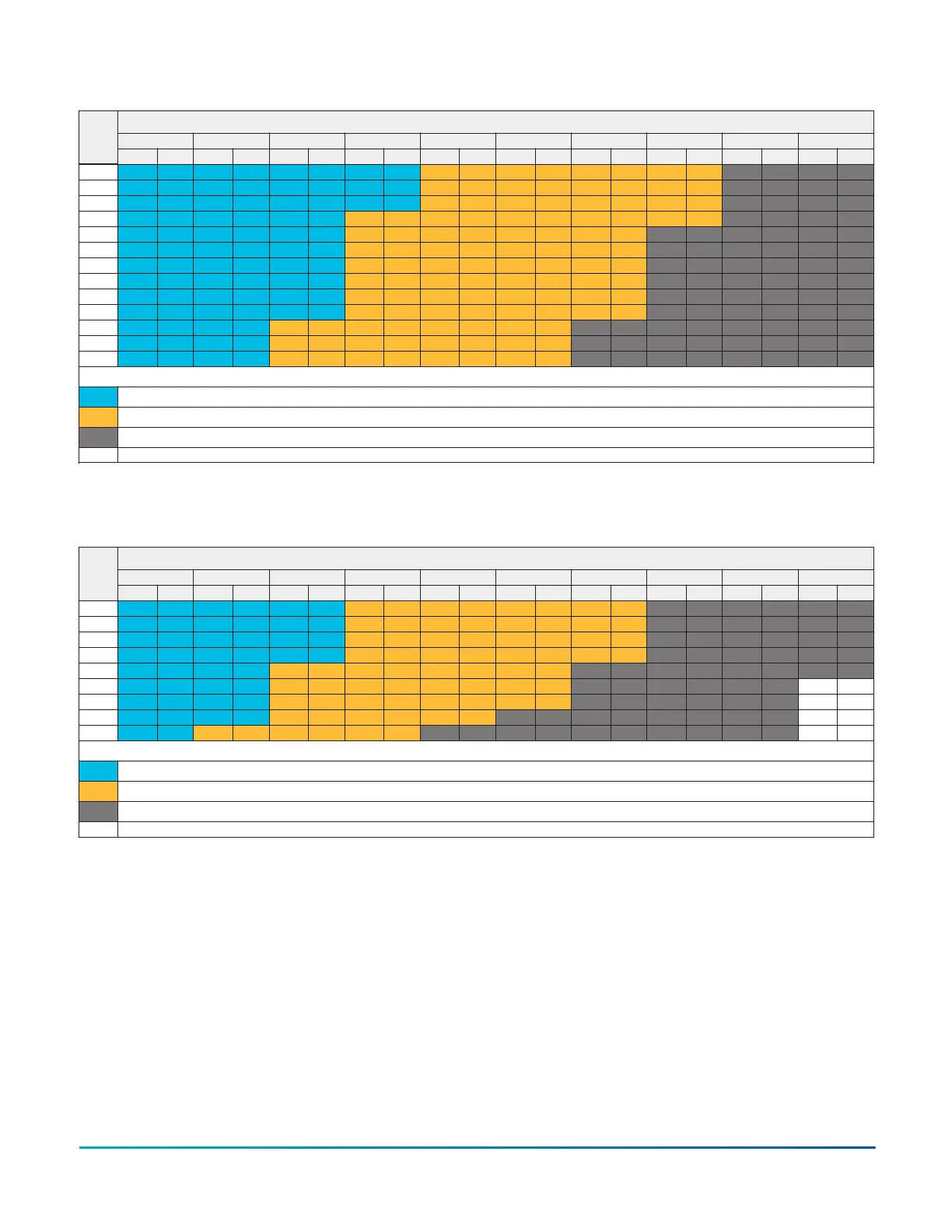

Table 36: ZYA7 (6.0 Ton) Side Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1800 521 0.27 583 0.44 644 0.63 703 0.81 759 0.99 814 1.17 866 1.34 916 1.51 964 1.67 1010 1.83
1900 529 0.31 591 0.49 651 0.67 710 0.85 767 1.03 821 1.21 874 1.39 924 1.56 972 1.72 1017 1.87
2000 536 0.36 598 0.54 659 0.72 718 0.90 774 1.08 829 1.26 881 1.44 931 1.61 979 1.77 1025 1.92
2100 544 0.42 606 0.59 667 0.77 725 0.95 782 1.14 836 1.32 889 1.49 939 1.66 987 1.82 1032 1.97
2200 551 0.47 614 0.65 674 0.83 733 1.01 789 1.19 844 1.37 896 1.55 947 1.72 994 1.88 1040 2.03
2300 559 0.53 622 0.71 682 0.89 741 1.07 797 1.25 852 1.43 904 1.61 954 1.77 1002 1.94 1048 2.09
2400 567 0.59 630 0.77 690 0.95 749 1.13 805 1.31 860 1.49 912 1.67 962 1.84 1010 2.00 1056 2.15
2500 575 0.66 638 0.83 698 1.01 757 1.20 813 1.38 868 1.56 920 1.73 970 1.90 1018 2.06 1064 2.22
2600 584 0.73 646 0.90 707 1.08 765 1.26 822 1.45 876 1.63 929 1.80 979 1.97 1027 2.13 1072 2.28
2700 592 0.80 655 0.97 715 1.15 774 1.34 830 1.52 885 1.70 937 1.87 987 2.04 1035 2.20 1081 2.36
2800 601 0.87 664 1.05 724 1.23 783 1.41 839 1.59 894 1.77 946 1.95 996 2.12 1044 2.28 1090 2.43
2900 610 0.95 673 1.13 733 1.31 792 1.49 848 1.67 903 1.85 955 2.03 1005 2.20 1053 2.36 1099 2.51
3000 619 1.03 682 1.21 742 1.39 801 1.57 858 1.75 912 1.93 964 2.11 1015 2.28 1063 2.44 -- --
Standard Static Option with Motor rated at 2.4-hp>
Medium Static Option with Motor rated at 2.9-hp
High Static Option with Motor rated at 3.7-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
Table 37: ZY08 (7.5 Ton) Side Duct
1
AVAILABLE EXTERNAL STATIC PRESSURE - IWG
1
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
CFM
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
2250 547 0.39 610 0.60 670 0.81 727 1.01 783 1.21 836 1.41 888 1.59 939 1.78 989 1.96 1038 2.13
2400 556 0.47 619 0.69 679 0.90 736 1.10 792 1.30 845 1.49 897 1.68 948 1.86 998 2.04 1047 2.22
2600 568 0.60 631 0.81 691 1.02 749 1.22 804 1.42 857 1.61 909 1.80 960 1.99 1010 2.17 1059 2.34
2800 581 0.73 644 0.95 704 1.16 762 1.36 817 1.56 871 1.75 923 1.94 973 2.13 1023 2.31 1073 2.48
3000 595 0.89 658 1.10 718 1.31 776 1.51 831 1.71 885 1.91 937 2.09 988 2.28 1038 2.46 1087 2.63
3200 610 1.05 673 1.27 733 1.48 791 1.68 846 1.88 900 2.07 952 2.26 1003 2.44 1053 2.62 -- --
3400 627 1.23 689 1.45 750 1.66 807 1.86 863 2.06 916 2.25 968 2.44 1019 2.62 1069 2.80 -- --
3600 644 1.42 707 1.64 767 1.85 824 2.05 880 2.25 933 2.44 985 2.63 1036 2.82 1086 3.00 -- --
3750 657 1.58 720 1.79 780 2.00 838 2.20 893 2.40 947 2.60 999 2.78 1049 2.97 1099 3.15 -- --
Standard Static Option with Motor rated at 2.4-hp>
Medium Static Option with Motor rated at 2.4-hp
High Static Option with Motor rated at 3.7-hp
-- Exceeds recommended blower speed
1 Blower performance includes gas heat exchangers and 2 in. filters. See STATIC RESISTANCE table for additional applications. Note:
See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP. kW = 0.929
x BHP
INSTALLATION MANUAL ZY SERIES 3-10ton 60 Hertz R-410A88
Johnson Controls Ducted Systems
